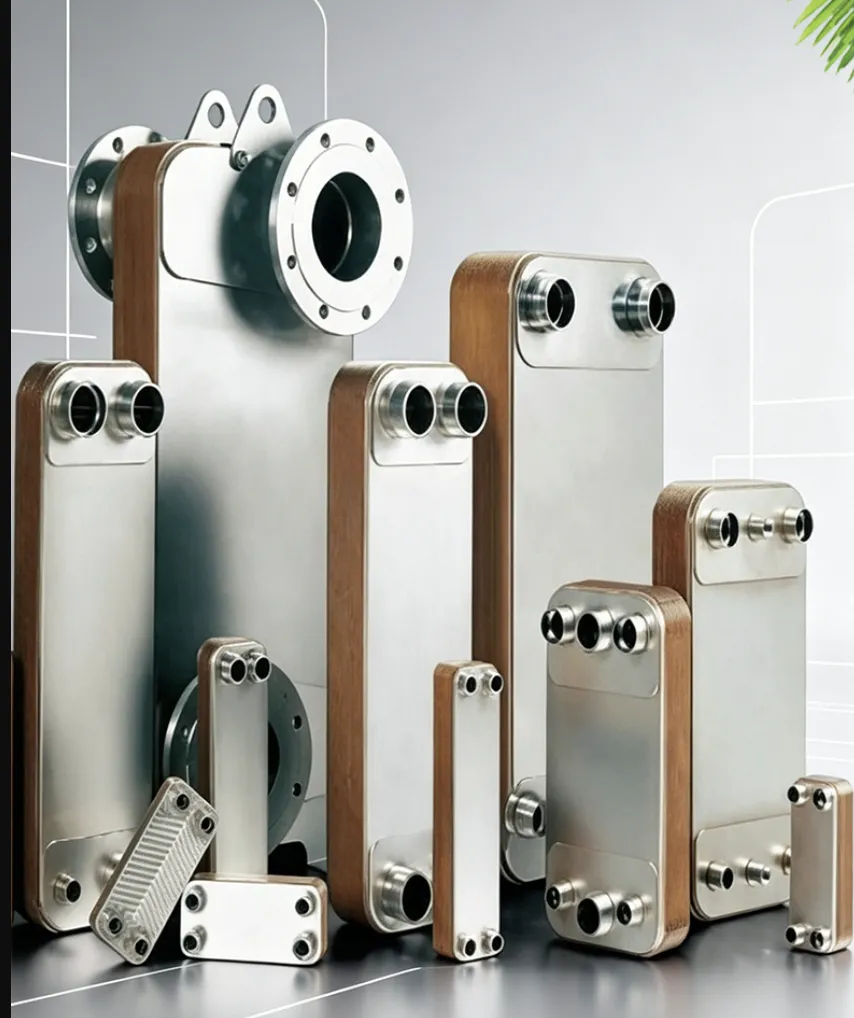

Brazed Plate Heat Exchanger With 1 Year Warranty, Mill Test Report, Durable Construction for Long Service Life
Product Spotlights
Durable brazed plate heat exchanger with 25+ years of manufacturing expertise. Includes Mill Test Report for material traceability and 1-year warranty. Compact design, high thermal efficiency, customizable plate count (10–200), and wide operating range (up to 30 bar, 220°C). Ideal for HVAC, refrigeration, and industrial applications.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Stainless Steel 316L / Copper Brazing
Application:
Other, HVAC
Warranty:
1 Year
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brazed Plate Heat Exchanger for Steam Heating in Food Processing, 304 SS, 10 Bar, 20 kW CapacityNegotiableMOQ: 1 Piece -
Brazed Plate Heat Exchanger for Oil Cooling in Hydraulic Systems, 30 Bar, Compact DesignNegotiableMOQ: 1 Piece
-
Brazed Plate Heat Exchanger for HVAC Chiller Systems 100 kW Cooling CapacityNegotiableMOQ: 1 Piece
-
Brazed Plate Heat Exchanger With 2-Year Warranty and Factory Test CertificateNegotiableMOQ: 1 Piece
-
Vacuum Brazed Plate Heat Exchanger With 316L Plates, 50 Plate, -196°C to +220°CNegotiableMOQ: 1 Piece
Material
Other, Stainless Steel 316L / Copper Brazing
Application
Other, HVAC
Warranty
1 Year
Max Working Pressure
30 bar (435 psi)
Max Working Temperature
220°C (428°F)
Plate Quantity
Customizable (10–200 plates)
Connection Type
Threaded (BSP/NPT) or Welded optional
Mill Test Report
Available upon request
Size (L×W×H)
Customizable, typical from 200×100×50 mm to 1000×400×200 mm
Brand
Boli
Anping County Boli Hardware Wiremesh Products Factory — a trusted manufacturer since 1998 — proudly presents our Brazed Plate Heat Exchanger (BPHE) designed for long service life and reliable performance. With over two decades of metal fabrication expertise and an annual export value of US$5–10 million, we deliver heat exchangers that combine durable construction, full traceability via Mill Test Report, and a 1-year warranty to protect your investment. Whether you need efficient heat transfer in HVAC systems, refrigeration, or industrial processes, our BPHE offers a compact, leak-proof solution that meets the demands of global markets from North America to Southeast Asia.
Key Features & Technical Specifications
- Robust Brazed Construction: Stainless steel 316L plates brazed with copper or nickel alloy, ensuring a homogeneous, leak-free structure without gaskets or welds.
- High Efficiency: Corrugated plate pattern creates turbulent flow, achieving heat transfer coefficients up to 4–5 times higher than shell-and-tube exchangers.
- Compact & Lightweight: Up to 80% smaller footprint compared to traditional designs, ideal for space-constrained installations.
- Wide Operating Range: Suitable for working pressures up to 30 bar and temperatures from -160°C to +220°C (depending on brazing material).
- Customizable Plate Count: Available in 10 to 200 plates to match your exact thermal duty requirements.
- Mill Test Report Included: Each unit comes with a traceable material certificate, verifying chemical composition and mechanical properties.
- 1-Year Warranty: Covers manufacturing defects, ensuring peace of mind for your operations.
| Parameter | Value | Remarks |
|---|---|---|
| Plate Material | SS 316L / SS 304 | Optional Hastelloy |
| Brazing Material | Copper / Nickel | Required for high-temp applications |
| Max Working Pressure | 30 bar (435 psi) | Higher pressure optional |
| Max Working Temperature | 220°C (428°F) | With nickel brazing |
| Connection Size | 1/2" to 2" BSP/NPT | Threaded or welded |
| Plate Count Range | 10–200 plates | Customized per order |
| Weight | 0.5 kg to 50 kg | Depends on size |
| Warranty | 1 Year | Against manufacturing defects |
Why Choose Boli's Brazed Plate Heat Exchanger?
- Proven Manufacturing Experience: Since 1998, we have produced millions of metal components, ensuring consistent quality control and precision engineering.
- Global Export Reach: Our products are shipped to over 20 countries including North America, Europe, Asia, Africa, and Oceania, meeting diverse industrial standards.
- Comprehensive Support: Each order includes a Mill Test Report for material traceability, and our technical team can assist with selection and sizing.
- Cost-Effective: Direct factory pricing eliminates middlemen, offering competitive rates without compromising on durability.
- Eco-Friendly Operation: High thermal efficiency reduces energy consumption, lowering your carbon footprint and operational costs.
Frequently Asked Questions (FAQ)
-
What is the expected service life of this heat exchanger?
With proper maintenance (e.g., clean fluids, not exceeding pressure/temperature limits), our BPHE can last 10–15 years or more. The copper brazing provides excellent corrosion resistance and structural integrity. -
Does the 1-year warranty cover all types of damage?
The warranty covers manufacturing defects such as leaks due to improper brazing or material flaws. It does not cover damage from misuse, overpressure, or aggressive chemicals not compatible with stainless steel/copper. -
Can I get a Mill Test Report for each unit?
Yes, we provide a Mill Test Report (MTR) with every heat exchanger, documenting the chemical composition and mechanical properties of the plate material. This is included in the standard delivery. -
Can the plate count be customized to match my specific heat load?
Absolutely. We offer custom plate counts from 10 to 200 plates. Our engineers can help you choose the optimal number based on your flow rates, temperatures, and media properties. -
What fluids are compatible with this exchanger?
It is compatible with water, water-glycol mixtures, oils, refrigerants (R134a, R410a, etc.), and many industrial process fluids. For aggressive media, we can offer Hastelloy plates or nickel brazing upon request. -
What is the maximum pressure I can use?
Standard models are rated for 30 bar (435 psi). For higher pressure applications (up to 45 bar), we can design a reinforced version with thicker plates and additional brazing. Please contact us for details. -
How long does delivery take?
Typical lead time is 15–25 working days for standard sizes, depending on quantity. Custom orders may require additional time. We ship from our factory in Hengshui, Hebei via ports like Tianjin, Qingdao, or Shanghai. -
Do you offer samples for testing?
Yes, we provide sample units (cost and freight negotiable). Once approved, we can proceed with mass production. Contact our sales team to discuss your requirements.
Trust Boli for Your Heat Transfer Needs
With a production history spanning 25+ years, an annual export value of US$5–10 million, and a presence in markets across North America, Europe, Asia, Africa, and Oceania, Anping County Boli Hardware Wiremesh Products Factory is your reliable partner for heat exchangers. Every unit we deliver includes a Mill Test Report for material traceability and is backed by a 1-year warranty. Our durable construction ensures long service life, reducing downtime and replacement costs. Contact us today to discuss your project or request a quotation — we are ready to support your global operations with quality products and competitive pricing.
