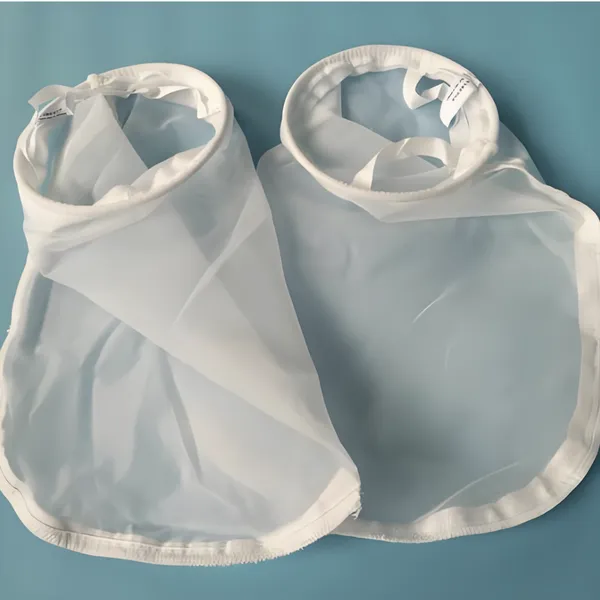

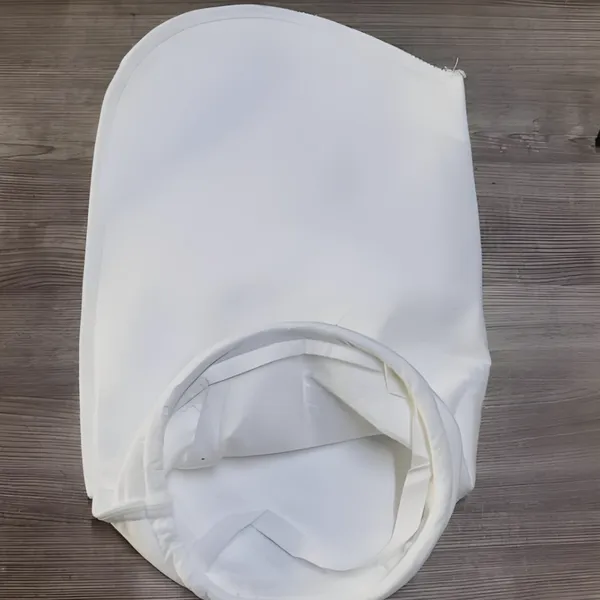

Help CenterPE Liquid Filter Bag for Food Industry, 5 Micron, Used in Sauce and Syrup Filtration
Product Spotlights
Related Products
-
Brazed Plate Heat Exchanger 304 Stainless Steel 30 Plates 3/4" BSP Ports 150 PSINegotiableMOQ: 1 Piece -
Brazed Plate Heat Exchanger 40 Plates 2" Tri-Clamp Ports 304 Stainless Steel 150 PSINegotiableMOQ: 1 Piece
-
Brazed Plate Heat Exchanger 316L SS 100 Plates 1" MPT 250 PSI Max PressureNegotiableMOQ: 1 Piece
-
Brazed Plate Heat Exchanger 5 Ton Capacity 1" MPT Connections 220V 50HzNegotiableMOQ: 1 Piece
-
Brazed Plate Heat Exchanger 60 Plates 1-1/2" BSPT Copper Brazed 150 PSI IndustrialNegotiableMOQ: 1 Piece
As a leading manufacturer since 1998, Anping County Boli Hardware Wiremesh Products Factory specializes in producing high-quality filtration solutions for the global food industry. Our PE Liquid Filter Bag (5 Micron) is engineered specifically for the demanding filtration of sauces, syrups, and other viscous food liquids. With a proven track record of exports exceeding US$5 million annually to markets across North America, Europe, and Asia, we deliver reliable performance that meets the strictest hygiene and efficiency standards.
This filter bag is constructed from high-grade polyester (PE) felt, offering excellent chemical resistance and mechanical strength. The 5-micron rating ensures precise particle removal, preventing clogging in downstream equipment while maintaining high flow rates. Whether you are filtering thick tomato ketchup, fruit syrups, or soy sauce, our bag provides consistent clarity and extended service life.
Key Features & Technical Specifications
- Material: 100% virgin polyester needle-punched felt – food-grade, non-toxic, and odorless.
- Filtration Efficiency: 5 micron nominal rating with >90% removal efficiency for particles ≥5 μm.
- High Temperature Resistance: Continuous operation up to 90°C (194°F), suitable for hot-fill processes.
- Strong Seam Construction: Double-stitched or heat-sealed seams to prevent bypass and bursting under pressure.
- Compatible with Standard Housings: Fits most #1, #2, #3, and #4 bag filter housings (ring options: plastic, SS, or flange).
- Low Initial Pressure Drop: Optimized fiber structure reduces energy consumption during filtration.
- Customizable Sizes: Available in various diameters and lengths to match your existing equipment.
| Parameter | Value |
|---|---|
| Material | 100% Polyester (PE) |
| Filtration Rating | 5 μm (nominal) |
| Max Operating Temperature | 90°C (194°F) |
| Max Differential Pressure | 2.5 bar (36 psi) |
| Flow Rate (for water) | ~20 m³/h per bag (for #2 size) |
| Compliance | FDA 21 CFR 177.1520 (upon request) |
Why Choose Our PE Filter Bag for Sauce & Syrup?
Enhanced Product Quality: The 5 micron precision captures fine sediments, fibers, and undissolved particles, resulting in clear, smooth sauces and syrups that meet high consumer expectations. Reduced Downtime: Our bags are designed with high dirt-holding capacity, meaning fewer change-outs and less interruption to your production line. Cost-Effective: Compared to cartridge filters, our bag filters offer lower replacement costs and easier disposal.
Versatile Applications: Ideal for filtration of ketchup, mayonnaise, fruit juice concentrates, honey, molasses, edible oils, and other viscous food liquids. The bag’s construction ensures no media migration, keeping your product pure.
Trust & Reliability from a 25+ Year Manufacturer
With over 25 years of manufacturing experience and an annual export value of US$5–10 million, Anping County Boli Hardware Wiremesh Products Factory has built a reputation for quality and consistency. Our products are shipped from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring fast delivery worldwide. We serve diverse markets across North America, South America, Europe, Asia, Africa, and Oceania, and we understand the specific requirements of food processing industries.
We are committed to providing OEM/ODM services – we can customize bag dimensions, ring types, and packaging to meet your exact needs. Our strict quality control process includes visual inspection, leak testing, and micron rating verification before shipment.
Ready to improve your filtration efficiency? Contact us today for a quote or free sample. Experience the difference of a reliable partner who has been serving the wire mesh and filtration industry since 1998.
Frequently Asked Questions
Q1: Is this filter bag suitable for high-viscosity liquids like syrup?
Yes, the PE needle-felt material is designed to handle viscous fluids. The 5 micron rating allows a good balance between clarity and flow rate. For extremely thick syrups, we recommend a larger size bag or a pre-filter to extend service life.
Q2: Can I use this bag for hot sauce (up to 80°C)?
Absolutely. Our bag can operate continuously up to 90°C, making it suitable for hot-fill sauce production. However, sudden temperature changes should be avoided to prevent thermal shock to the felt.
Q3: What ring types are available?
We offer plastic sealing rings, stainless steel rings (SS304/316), and flange rings. The plastic ring is standard; SS rings are recommended for high-temperature or corrosive applications.
Q4: How do I know the correct size for my housing?
Please measure your housing’s inner diameter and length. Common sizes are #1 (180x430mm), #2 (180x810mm), #3 (102x230mm), and #4 (102x380mm). We can also produce custom sizes upon request.
Q5: Does this bag comply with food safety regulations?
Our bags are manufactured using FDA-compliant raw materials (21 CFR 177.1520). We can provide a certificate of compliance upon request. However, we do not claim CE or ISO unless specifically requested and verified.
Q6: What is the typical lifespan of the filter bag?
Lifespan depends on the solids load and operating conditions. For sauce filtration, a 5 micron bag typically lasts 4–8 hours of continuous use before needing replacement. We recommend using a differential pressure gauge to monitor when to change.
Q7: Can I order samples before bulk purchase?
Yes, we offer free samples (up to 5 pieces) for evaluation. You only need to pay for shipping. Contact our sales team to arrange.
Q8: What is the minimum order quantity?
Our MOQ is 100 pieces for standard sizes. For custom sizes, the MOQ is 500 pieces. Smaller quantities can be negotiated for trial orders.
