500mm Diameter Swimming Pool Sand Filter With 1.5HP Pump 220V 50Hz
Product Spotlights
500mm diameter sand filter with 1.5HP pump, 220V/50Hz, flow rate 12m³/h, FRP tank, multi-port valve, low maintenance, suitable for pools up to 40m³, reliable manufacturer since 1998 with global export experience.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Fiberglass Reinforced Plastic (FRP)
Diameter:
500 mm
Pump Power:
1.5 HP (1100 W)
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
45m³/h Flow Rate 304 Stainless Steel Swimming Pool Sand Filter With 6-Position ValveNegotiableMOQ: 1 Piece -
Commercial Swimming Pool Sand Filter for Hotel and Resort Water Treatment 30m³/hNegotiableMOQ: 1 Piece
-
Semi-Automatic Swimming Pool Sand Filter With 7-Position Valve 25m³/h CapacityNegotiableMOQ: 1 Piece
-
Residential Swimming Pool Sand Filter for Above Ground Pools Easy Installation 18m³/hNegotiableMOQ: 1 Piece
-
2-Year Warranty Swimming Pool Sand Filter With Mill Test Report 304 Stainless SteelNegotiableMOQ: 1 Piece
Material
Other, Fiberglass Reinforced Plastic (FRP)
Diameter
500 mm
Pump Power
1.5 HP (1100 W)
Voltage / Frequency
220V / 50Hz
Connection Size
50 mm (2 inch)
Max Working Pressure
2.5 bar
Filtration Area
0.196 m²
Flow Rate
12 m³/h
Color
Blue / Black (optional)
Application
Above-ground & in-ground swimming pools
Welcome to Anping County Boli Hardware Wiremesh Products Factory — a trusted manufacturer since 1998 with annual export revenue of US$5-10 million. Our 500mm Diameter Swimming Pool Sand Filter with 1.5HP Pump 220V 50Hz is engineered to deliver crystal-clear water for both above-ground and in-ground pools. Combining robust construction with efficient water circulation, this system ensures low maintenance and long-lasting performance. Experience the perfect balance of power and reliability for your pool.
Product Highlights & Technical Specifications
- High-Efficiency Filtration: The 500mm tank diameter provides a large sand bed surface area (0.196 m²) for effective particle trapping down to 40 microns.
- Powerful Pump: The 1.5HP (1100W) pump delivers a maximum flow rate of 12 m³/h, ensuring rapid water turnover for pools up to 40 m³.
- Durable Construction: Tank made of corrosion-resistant fiberglass reinforced plastic (FRP) with UV stabilizers, rated for 2.5 bar working pressure.

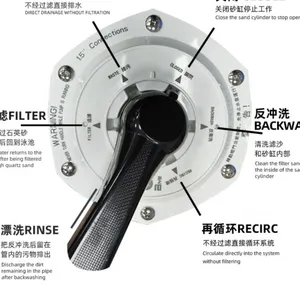

- Easy Operation: Multi-port valve with 6 functions (Filter, Backwash, Rinse, Recirculate, Waste, Closed) allows simple maintenance.
- Compatible Media: Uses standard silica sand (#20 grade) or optional glass filter media for enhanced performance.
- Energy Efficient: 220V/50Hz motor with low noise and overheat protection, suitable for standard household electrical supply.
| Parameter | Value |
|---|---|
| Tank Diameter | 500 mm |
| Pump Power | 1.5 HP (1100 W) |
| Voltage / Frequency | 220V / 50Hz |
| Max Flow Rate | 12 m³/h |
| Filtration Area | 0.196 m² |
| Max Working Pressure | 2.5 bar |
| Connection Size | 50 mm (2 inch) |
| Recommended Pool Size | Up to 40 m³ |
Why Choose Our Sand Filter System?
- Simple Maintenance: Sand media only needs replacement every 3–5 years; backwashing is quick and efficient.
- Cost-Effective: Lower initial investment compared to cartridge or DE filters, with minimal ongoing costs.
- Versatile Installation: Suitable for above-ground pools, in-ground pools, and even small commercial applications.
- Reliable Pump: The 1.5HP pump is equipped with a built-in thermal overload protector and a durable mechanical seal.
- Customizable Options: Available with different valve types (push-pull or side-mount) and colors upon request.
At Anping County Boli Hardware Wiremesh Products Factory, we have been delivering high-quality pool equipment to global markets for over 25 years. Our products are exported to North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. We ship from major Chinese ports including Tianjin, Qingdao, Shanghai, and Foshan. With annual export sales of US$5-10 million, we have the capacity and experience to meet your needs. We stand behind every product with rigorous quality control and responsive customer service. Contact us today to order your 500mm sand filter with 1.5HP pump — a reliable solution for clean, sparkling pool water.
Frequently Asked Questions
-
Q: What size pool is this filter suitable for?
A: The filter is ideal for pools up to 40 m³ (approximately 10,500 gallons) with a 12 m³/h flow rate. For larger pools, consider multiple units or a higher capacity model. -
Q: Can I use this system with a saltwater pool?
A: Yes, the FRP tank and pump components are corrosion-resistant and compatible with saltwater chlorination. However, we recommend using salt-resistant filter media for extended life. -
Q: What type of sand should I use?
A: Use #20 grade silica sand (0.45–0.85 mm) or a high-quality filter glass media. The filter requires approximately 50 kg (110 lbs) of sand. -
Q: Is the pump pre-wired or does it require a plug?
A: The pump is supplied with a power cord but no plug. It must be connected to a dedicated 220V/50Hz circuit by a qualified electrician. A plug can be added per your local requirements. -
Q: How often should I backwash the filter?
A: Backwash when the pressure gauge reads 0.5–0.8 bar above the normal operating pressure. Typically once every 1–2 weeks depending on pool usage and debris load. -
Q: What is the warranty period?
A: We offer a 1-year warranty against manufacturing defects for the filter tank and pump motor. Extended warranty options are available upon request. -
Q: Can I use this pump with a different filter?
A: Yes, the pump can be used as a standalone circulation pump. However, for optimal filtration performance, we recommend pairing it with our 500mm sand filter. -
Q: Do you provide custom packaging or branding?
A: Yes, we offer OEM/ODM services. Custom logo, color, and packaging are available for bulk orders. Please contact our sales team for details.
