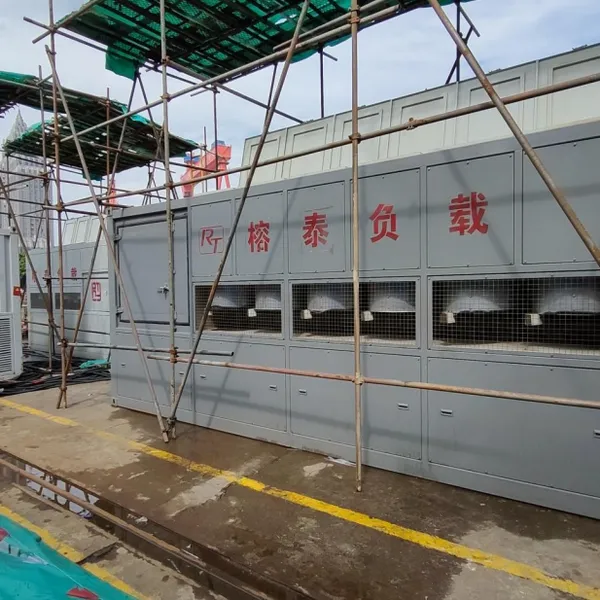

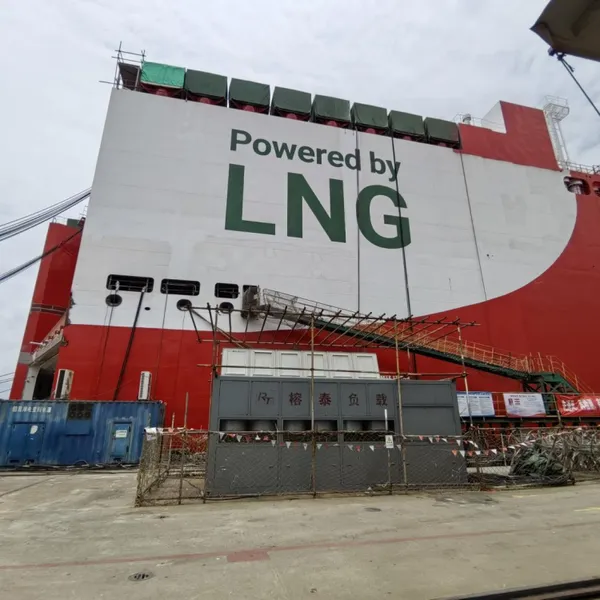

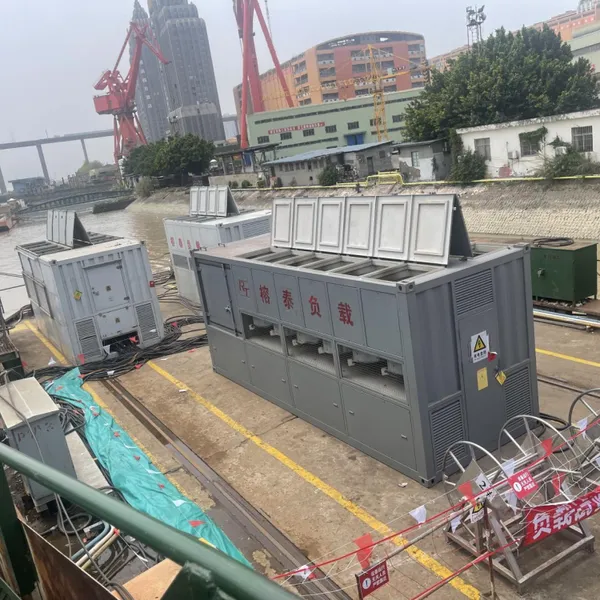

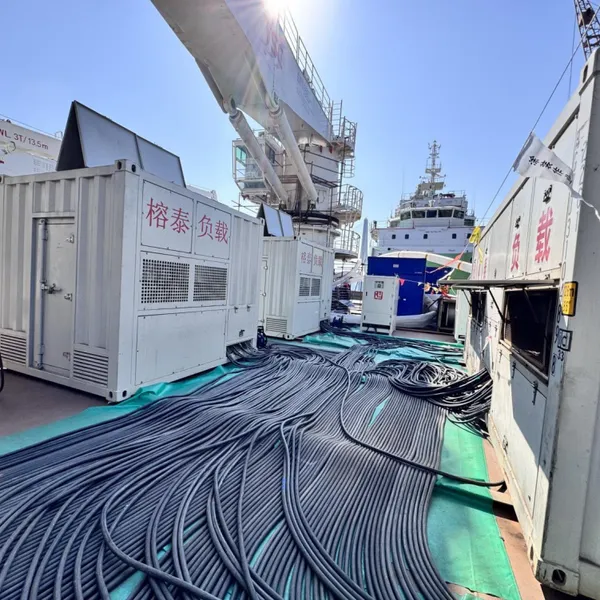

Help CenterMarine Generator Test for Ship Manufacturing Client 8000KW-AC690V-PF:0.8
Product Spotlights
Related Products
-
Marine Generator Test for Ship Manufacturing Client 12MW-AC690V-PF:0.8NegotiableMOQ: 1 Unit -
Fan-Liquid Cooled Load BankNegotiableMOQ: 1 Unit
-
MW Container LoadBank for Generator Industrial GradeNegotiableMOQ: 1 Unit
-
AC 400V 10-5000 Resistive Load Bank for UPS TestingNegotiableMOQ: 1 Unit
-
5kw 6kw 7kw 8kw 10kw 15kw 20kw AC/DC Dummy Load for Server PDU Generator Testing for Data Center CommissioningNegotiableMOQ: 1 Unit
Load bank
Series No.
RT8000KVALB
Formation
Resistive load,inductive load,data acquisition,electrical control part,heat dissipation device and load protection control
Test voltage
Based on customer's needs,such as AC400V,440V,450V,480V,690V,10.5KV,33kV,etc.
Test frequency
50Hz/60Hz
Load character
Resistive load + Inductive load
Power factor
Customized
Control
Local panel control + remote automatical control can be supplied
Power source connection
Copper bar + Terminal 3phase
Loading accuracy
±3%
Three phase balance
Inbalance: ≤ 3%
Working mode
Continuous work
Cooling mode
Forced air cooling(horizontal air inlet/outlet;horizontal air inlet,vertical air outlet,protection awning can be supplied)
Insulation class
F
Accuracy
The sampling accuracy of the instrument is 0.2;
(Voltage:±0.5%,current:±0.5%,frequency:±0.1%,power:±1%,Cos:±1% )
Load expansion
Parallel expansion of multiple load containers
Load protection
Short circuit, over voltage, over current, high temperature, air volume, emergency stop protection
Resistive
load
Minimum step
1kW
Load step
According to customer needs
Resistance tube
Insulation impedance of each resistance element DC1000V 20M Ω above,
withstand voltage AC2000V 1 minute,
Resistance error of each resistance tube:±3%
Resistive material
8020 Ni-Cr alloy resistor
Cold and hot state change
≤ 2%
Inductive load
Minimum step
1kvar
Load step
According to customer needs
Inductor
Withstand voltage AC3000V 1 minute,
inductance error of each Inductor:±3%
Material
Copper reactor
Other
Protection level
IP55 when not use, IP20 when using
Use occasion
Outdoors/indoor
Transport
4 lifting holes
Color
RAL7035 or customized RAL color number
Standard
Meet international standard, ship standard and telecommunication standard
Color
Customized
Ambient temperature
-20ºC to 50ºC
Humidity
Up to 100%
Altitude
Up to 2500m
Atmospheric pressure
86 to 106kPa
