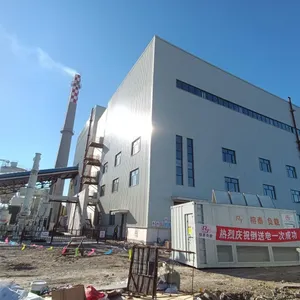

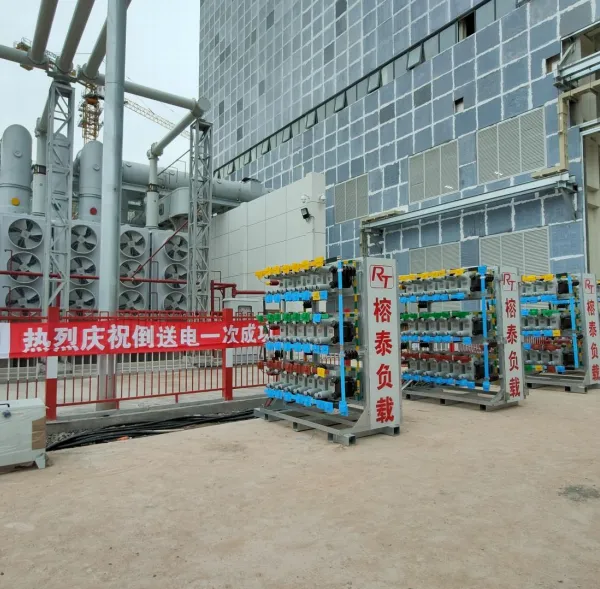

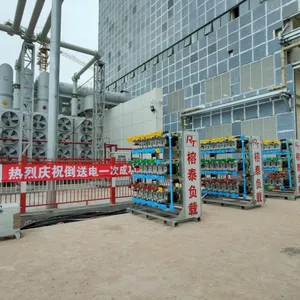

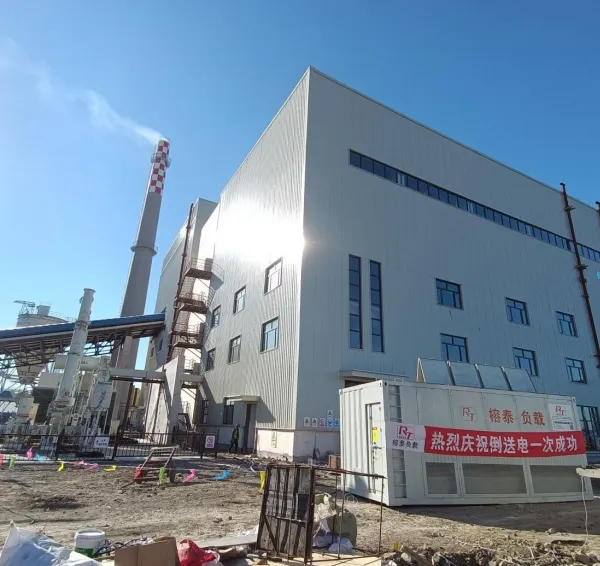

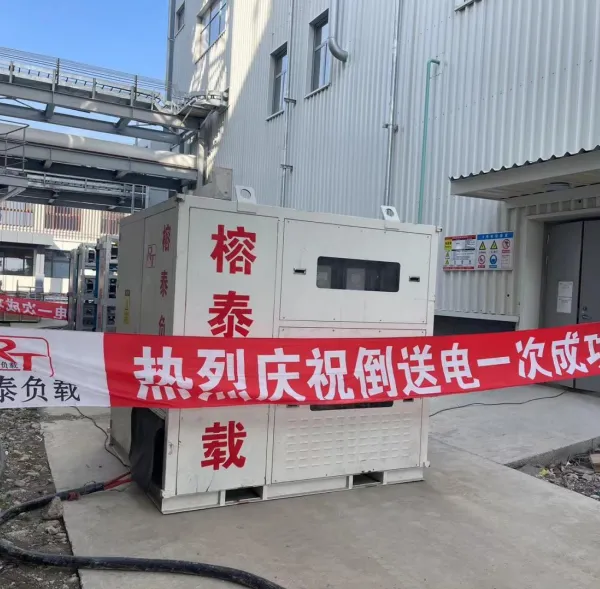

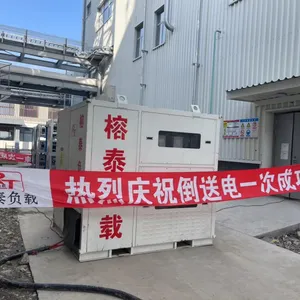

Reverse‑feeding Load Test (Back‑feed Dummy Load Test)
Reverse‑feeding load test is performed when the main generator is shut‑down for maintenance or commissioning. External power source feeds power backward to the station auxiliary busbar, while dry‑type resistive load bank acts as dummy load to consume power.
Test Purposes
Test temperature‑rise & current‑carrying capacity of station‑service transformers, busbars, switchgears and power cables without running main generator.
Verify over‑current protection, relay protection and automatic bus transfer device (BZT) logic.
Detect hidden faults such as poor contact and over‑heating at cable joints and bus‑bar connections.
Acceptance test for new‑built power plants & substations, and post‑overhaul inspection.
Features of our load bank for reverse‑feeding test

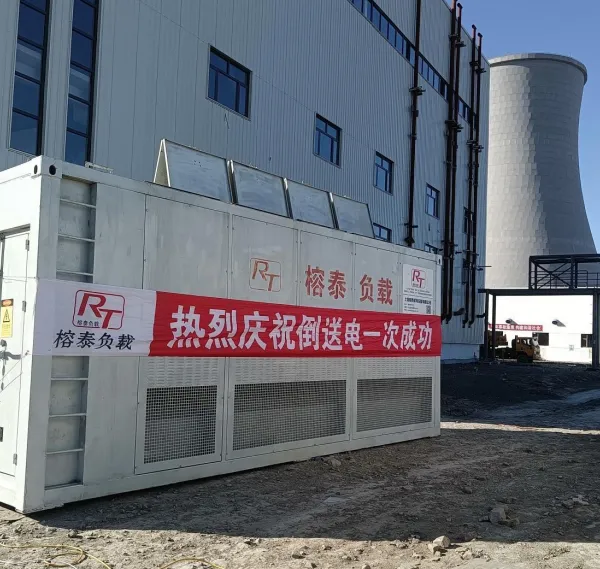

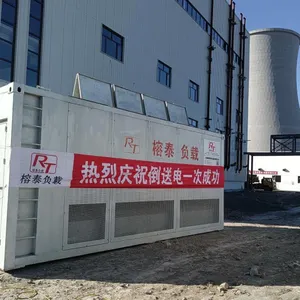

Mobile container‑type dry‑air‑cooled unit, no water pool required, easy on‑site deployment.
Compatible with medium‑high voltage 6kV‑35kV and low‑voltage 400V auxiliary power system.
Unity power factor resistive load, step‑by‑step smooth loading.
Integrated data acquisition system, automatically log voltage, current and temperature, generate formal test report.
Multi‑unit parallel connection for MW‑level high‑power testing.
Built‑in over‑voltage, over‑current and over‑temperature protection for high‑safety reverse‑feed operation.
