Help CenterEPS Motor Stator Production Line
Product Spotlights
Integrated Quality Control – Combines vision inspection, missing-part detection, pressure and welding inspection.
Error-Proof Production – Prevents misassembly and process errors for stable quality.
Flexible & Upgradeable – Reserves space for future product and process upgrades.
Integrated Automation – Covers core splitting, winding, insulation, welding, assembly, cooling, and inspection.
Related Products

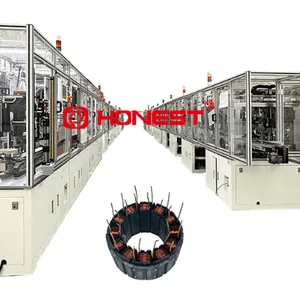

EPS Motor Stator Production Line
HONEST's EPS motor stator assembly line adopts an industrial control collection data system to realize the traceability of product production process information, and highly integrates visual inspection, material reverse detection, missing installation identification, pressure monitoring, welding inspection and other process methods to achieve foo-proofing and error-proofing effect. The design considers product upgrade needs and reserves space for modification. The production line configuration meets customer configuration requirements and meets the safety production requirements of automatic lines. The equipment processes include core splitting, winding, insulation paper inserting, terminal wire cutting, terminal pre-clamping, core laser welding, terminal welding, stator comprehensive inspection, housing loading & code marking, stator heating assembly, stator cooling, etc.
Advantages
01 Fully automatic production line ensures stable and reliable production process.
02 Configure the entire line data collection system to ensure that each process is traceable.
03 Equipped with high-precision sensors, visual inspection systems, etc. to prevent missing installation, incorrect installation, and to conduct quality inspection after installation.
04 The equipment is ergonomically designed and easy to operate.
05 High-performance fully automatic detection function ensures 100% complete inspection after assembly.
06 All collected data are transmitted back to MES, which has data management functions, records and queries all collected data, and data management operation authority management records.
Equipment Parameters
Production efficiency
≤15 seconds/PCS
Yield
≥98%
Compatible products
3 models
Voltage
AC220V/AC380V 50HZ
Air pressure
0.4-0.7Mpa
Power
120kw
Control method
PLC+HMI
Size
23000(L)*8000(W)*1950(H)mm
Application areas
Automotive steering wheel power motor
Welcome to inquire for a free quote, solutions, and case studies.
