Help CenterBLDC Motor Stator Assembly Line
Product Spotlights
MES Connectivity – Supports production data traceability and integration with customer MES systems.
High Automation – Integrates winding, welding, marking, and performance testing.
Smart Quality Control – Enables real-time inspection and stable production quality.
Related Products
-
Air Pump BLDC Motor Stator Production LineUS$ 5000MOQ: 1 Unit -
Compressor Motor Stator Assembly LineUS$ 5000MOQ: 1 Unit
-
EPS Motor Stator Production LineUS$ 5000MOQ: 1 Unit
-
Commercial Vehicle Water Pump Stator Assembly LineUS$ 5000MOQ: 1 Unit
-
Segmented Stator Production LineUS$ 5000MOQ: 1 Unit

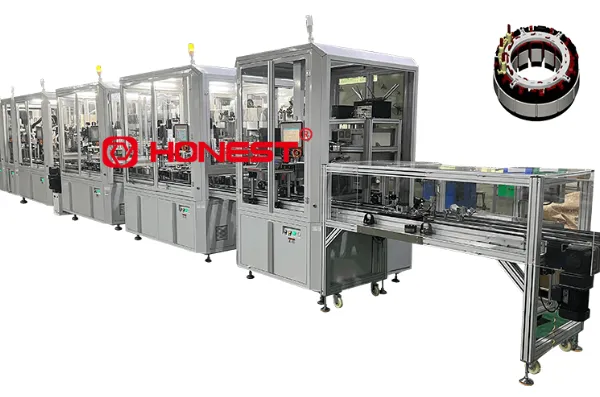

Automotive Water Pump Brushless Motor Stator Assembly Line
The brushless motor stator assembly line for automobile water pumps is equipped with high-precision sensors, visual inspection systems, etc. to prevent leakage, missing installation, wrong installation and post-installation quality inspection. The brushless motor stator assembly line is equipped with a data traceability system and can be connected with the customer's MES system. , with relatively high automation, intelligence and humanization. Process flow : core frame loading, laser engraving, stator winding, wire bar welding, terminal bar welding, terminal bar welding and performance testing, etc.
Advantages
-
01
Adopt modular and flexible design to make the structure simple and beautiful.
-
02
The entire line uses smart cameras to replace manual inspections.
-
03
Adopt production line data traceability system.
-
04
Production data can be queried by scanning the product QR code.
-
05
The equipment is equipped with special safety gratings, safety door locks, etc. for personal safety protection.
-
06
The equipment control system mainly consists of human-machine interface, programmable controller PLC, industrial computer, etc.
Equipment Parameters
Efficiency
≤12s/pcs
Voltage
AC 380V 50HZ
Air pressure
0.45～0.65MPa
Power
The whole line is about 80KW
Size
16000(L)*3000(W)*1800(H)mm
control method
control method
Utilization rate
Equipment utilization rate ≥90%
Scope of application
automobile water pump stator
Welcome to inquire for a free quote, solutions, and case studies.
