WP Pure Tungsten Welding Electrode Green Tip, AC TIG Welding for Aluminum & Magnesium Alloy
Product Spotlights
Premium TIG tungsten electrodes (WT20/WC20/WL20/WP) with 99.95% purity. AWS A5.12 & ISO 6848 certified. Easy arc starting, ultra-stable arc, minimal burn-off. Full size range 1.0–6.4mm, COA per batch, OEM packing, mixed sizes available. Fast 5–10 day shipping. Trusted by 40+ countries.
Negotiable
MOQ: 1 Box (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Tungsten Wire
Shape:
Round
Purity:
>98%
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
10 days
Related Products
-
Supply Gr2 Titanium Plate Titanium Thin Sheet Ti Plate ASME SB 265 Corrosion Resistant Grade 2 Titanium SheetNegotiableMOQ: 1 Kilogram -
Grade 5 Titanium Plate For Automotive Engineering Motorsport Components And High Performance Vehicle PartsNegotiableMOQ: 1 Kilogram
-
ASTM B265 Gr5 Gr7 Gr2 Strong Titanium Plate Gr 16 Sheet Metal Materials Grade 5 23 Ballistic Plates 0.4 0.7 2 4 5 mm ThickNegotiableMOQ: 1 Kilogram
-
Wholesale Custom Gr1 Gr2 Titanium Plates Available In Stock High Quality Metals & Metal Products On SaleNegotiableMOQ: 1 Kilogram
-
Ti6Al4V Gr5 Titanium Sheet Grade 5 Titanium Plate Price Per KgNegotiableMOQ: 1 Kilogram
Type
Tungsten Wire
Shape
Round
Purity
>98%
Application
Aviation, Electronics, Industrial, Medical, Chemical
Standard
JIS, ASTM
Alloy
Alloy
whatsapp
+8615706030959
Color code
Green,Golden,Sky‑Blue,Orange,Red
Diameter
1.0mm‑4.0mm
Model
WP,WL15,WL20,WC20,WT20
Material
Tungsten, Rare‑earth oxide
Transport Package
box
Origin
china

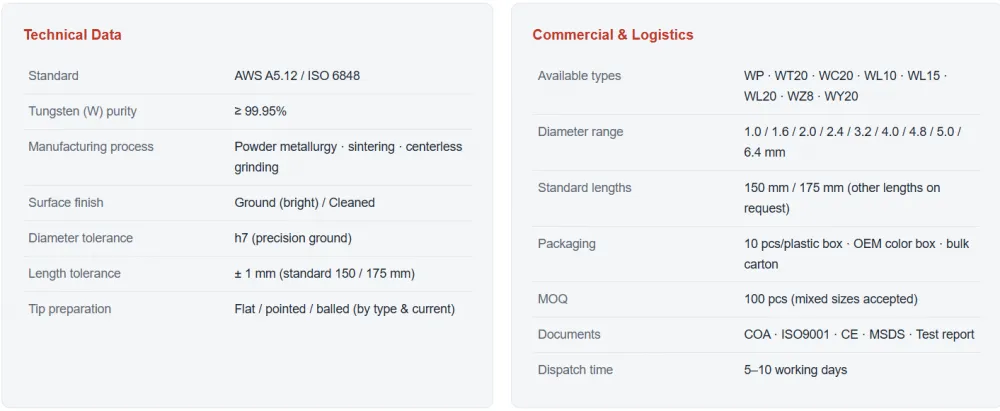

Product Overview & Specifications
Our tungsten electrodes are manufactured by powder metallurgy, high-temperature sintering and precision centerless grinding. Each batch is tested for purity, density and dimensional tolerance before dispatch, ensuring consistent welding performance and long service life.
Note: WT20 (thoriated) contains radioactive thorium dioxide — handle, store and dispose of per local regulations. For a non-radioactive alternative, WC20 (ceriated) or WL20 (lanthanated) are recommended.

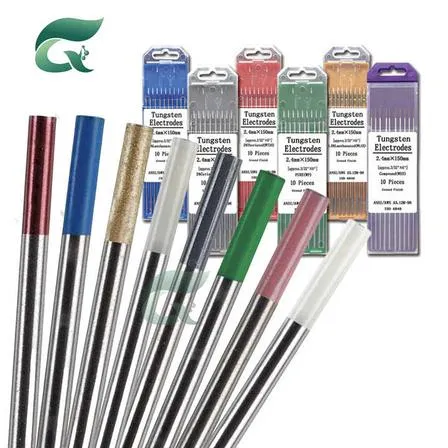

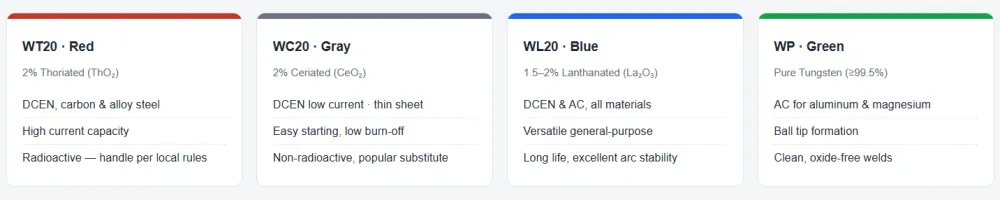

Electrode Types & Color Code
Select the right tungsten alloy for your base material and current type. Color rings follow international coding for quick, error-free identification on the shop floor.
| Type | AWS Class | Oxide | W % | Best current | Typical application | Radioactive |
|---|---|---|---|---|---|---|
| WP | EWP | — | ≥99.5 | AC | Al, Mg, general AC TIG | No |
| WT20 | EWRTh-2 | ThO₂ 2% | ~97.9 | DCEN | Carbon/low-alloy steel, pipe | Yes |
| WC20 | EWCe-2 | CeO₂ 2% | ~97.9 | DCEN / AC | Thin sheet, stainless, DC/AC | No |
| WL10 | EWLa-1 | La₂O₃ 1% | ~98.9 | DCEN / AC | Stainless, precision welding | No |
| WL15 | EWLa-1.5 | La₂O₃ 1.5% | ~98.4 | DCEN / AC | Stainless, carbon steel | No |
| WL20 | EWLa-2 | La₂O₃ 2% | ~97.9 | DCEN / AC | General purpose, all materials | No |
| WZ8 | EWZr-8 | ZrO₂ 0.8% | ~99.1 | AC | Al, Mg (alternative to WP) | No |
| WY20 | EWPu-2 | Y₂O₃ 2% | ~97.9 | DCEN / AC | High-current DC, thick section | No |
Popular Size Reference & Recommended Current
Quick selection guide by diameter (mm / inch), current type and typical amperage range. Actual settings depend on base material, shielding gas and joint design.
| Ø mm | Ø inch | DCEN (A) | DCEP (A) | AC (A) | Standard length | Stock status |
|---|---|---|---|---|---|---|
| 1.0 | 0.040 | 15–80 | — | 20–60 | 150 / 175 mm | In stock |
| 1.6 | 1/16 | 70–150 | 10–20 | 60–120 | 150 / 175 mm | In stock |
| 2.0 | 0.080 | 100–200 | 15–25 | 100–160 | 150 / 175 mm | In stock |
| 2.4 | 3/32 | 160–280 | 20–35 | 140–235 | 150 / 175 mm | In stock |
| 3.2 | 1/8 | 250–400 | 30–50 | 225–330 | 150 / 175 mm | In stock |
| 4.0 | 5/32 | 350–550 | 40–65 | 300–450 | 150 / 175 mm | On request |
| 4.8 | 3/16 | 500–750 | 55–85 | 400–600 | 150 / 175 mm | On request |
| 5.0 | 0.197 | 600–850 | 65–100 | 500–700 | 150 / 175 mm | On request |
| 6.4 | 1/4 | 800–1100 | 85–130 | 650–950 | 150 / 175 mm | On request |

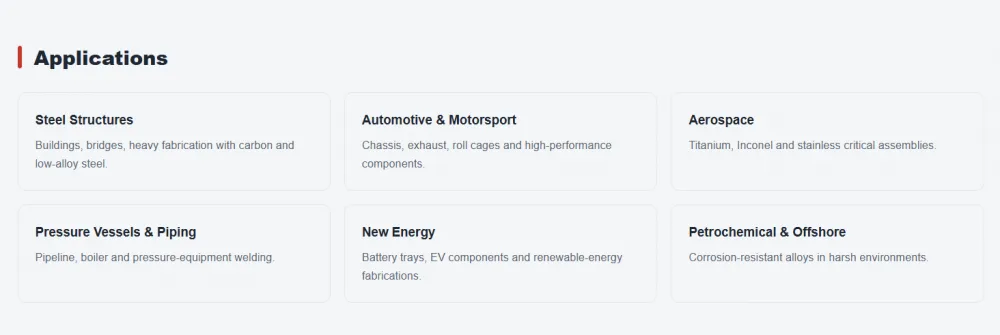

Applications

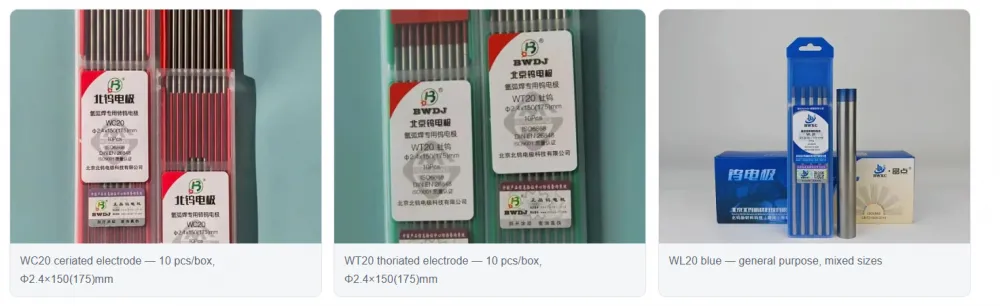

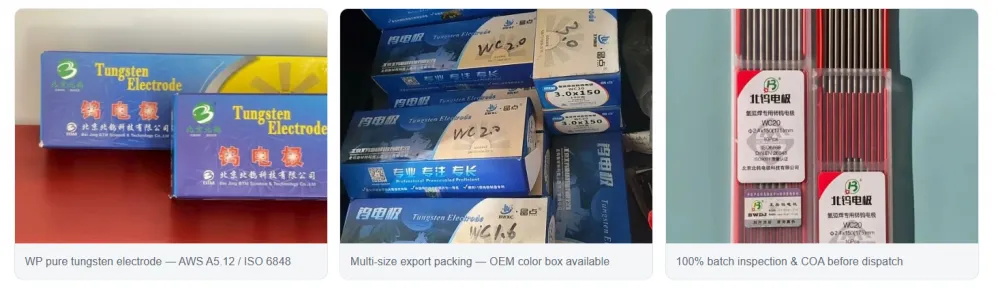

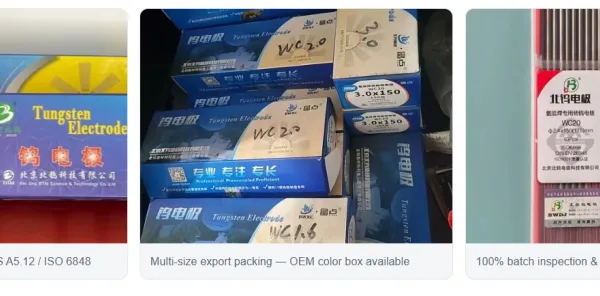

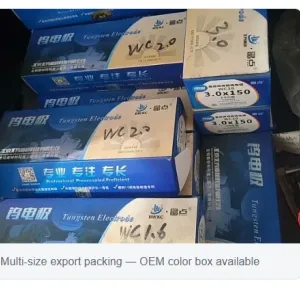

Product & Factory Gallery
Real product photos and glimpses of our production, sintering, inspection and export packing process.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2023
Factory Size
3,000-5,000 square meters
Annual Export Value
US$2.5 Million - US$5 Million
