High Purity Grade 2 Titanium Plates For Electronic And High Clean Environments

High Purity Grade 2 Titanium Plates For Electronic And High Clean Environments thumbnail-2

High Purity Grade 2 Titanium Plates For Electronic And High Clean Environments thumbnail-3

High Purity Grade 2 Titanium Plates For Electronic And High Clean Environments thumbnail-4

High Purity Grade 2 Titanium Plates For Electronic And High Clean Environments photo-1

High Purity Grade 2 Titanium Plates For Electronic And High Clean Environments photo-2

High Purity Grade 2 Titanium Plates For Electronic And High Clean Environments photo-3

High Purity Grade 2 Titanium Plates For Electronic And High Clean Environments photo-4

Product Spotlights

Titanium Plate — Strength Without Compromise:Engineered for extreme conditions, our premium titanium plate delivers an exceptional strength-to-weight ratio, unmatched corrosion resistance, and superior biocompatibility. Withstand harsh chemicals, saltwater, and temperature extremes from cryogenic to 600°C. Non-magnetic, non-toxic, and 100% recyclable. Ideal for aerospace, medical implants, marine, and chemical processing applications. Lighter than steel, stronger than aluminum — performance that

Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Titanium Sheets

Shape:

Square

Grade:

GR2

Contact Supplier Request Quote Chat Now

Yiwu Tongke Trading Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Type Titanium Sheets

Shape Square

Grade GR2

Technique Hot Rolled

Application Industrial, Medical

Transport Package sea and board

Origin China

Product Paramenters

Ti 6Al-4V Titanium Plate and sheet Type	Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate
Grade	ASME SB265、AMS 4911、AMS 4919、AMS 4914、ASTM F67、ASTM F136, MSRR, AMS, BS
Titanium Alloy Gr 5 Plate Length	1000mm-13000mm or as required
Gr 5 Titanium Plate Width	1000mm-1219mm-1500mm-1800mm-2000mm-2500mm or as required
UNS R56400 Plate Thickness	0.3 to 120mm or as required
ASTM B265 Titanium Alloy Gr 5 Plate Process	Hot/ Cold Rolled/forging
UNS R56400 Plate surface	No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B265 Titanium Alloy Gr 5 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc.
ASTM B265 Titanium Alloy Gr 5 Plate, Sheet and Strip	JIS: N0, N2, N1, NW2200, NW2201, NW4400, NW5500, NW6002, etc
Titanium Grade 5 Sheet ASTM	ASTM B265
Titanium Grade 5 Sheet AMS	AMS 4902
Tolerances of width and thickness	EN 10258 (formerly DIN 59381)，EN 10151 ASTM B265 Titanium Alloy Gr 5 strip for springs，EN 10088 ASTM B265 Titanium Alloy Gr 5 strip (general)
Ti 6Al 4v Grade 5 Titanium Plate standards and approvals	EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 EN ISO 9445 ASTM A 480 ASTM A 959 ASME IID
Standard Ti-6Al-4V ALLOY Plate & Sheet Sizes	1000 x 2000 mm, 1220 x 2440 mm, 1500 x 3000 mm, 2000 x 2000 mm, 2000 x 4000 mm
	Cold rolled Gr 5 Titanium Plate 0.5-6.4 mm
	Hot rolled Gr 5 Titanium Plate 3.0–60.0 mm
UNS R56400 Plate Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard ASTM B265 Titanium Alloy Gr 5 Sheet suppliers
Availability of Titanium Alloy Gr 5 Foil sizes	Thickness : 8-100 microns (0.00031-0.004 in)
	Width: Up to 500 mm (19.5 in)
	Weight (in rolls) : Up to 50 kg (110 lb); e.g. approxi- mately 1400 m at 8 microns and ap- proximately 112 m at 100 microns.
Cutting	To provide a comprehensive service, we use a variety of cutting methods, including:
Cutting	Laser Plate Cutting，Plasma Plate Cutting，Oxy-propane Flame Cutting
Plasma profiles	As per customer’s drawings
Value added services for Cp Grade 5 Titanium Plate	Laser cutting, Waterjet cutting, Plasma cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing.
China Grade 5 Titanium Plate Manufacturer	ASTM B265 Titanium Alloy Gr 5 Plate: material 3/16″ [5.00 mm] and over in thickness and over 10″ [250 mm] in width;Gr 5 Titanium Sheet: material under 3/16″ [5.00 mm] in thickness and 24″ [600 mm] and over in width;Alloy Titanium Grade 5 Clad plate: Alloy Titanium Grade 5 Clad plate is a composite steel plate made by bonding UNS R56400 Titanium Grade 5 Plate, etc.ASTM B265 Titanium Alloy Gr 5 Strip: cold-rolled material under 3/16″ [5.00 mm] in thickness and under 24″ [600 mm] in width.
UNS R56400 Plate Origin	CHINA
Packing of Ti-6Al-4V plate	Bundles with waterproof cloth outside or plywood box
Test	UT, SGS testing, TUV etc

Details Images

Commercially Pure Titanium and Titanium Alloys

Pure Titainium:
CP Grade 1, CP Grade 2, CP Grade 3, CP Grade 4
Titanium Alloys:
CP Grade5 , Ti 6AL-4V
Other Available Titanium Product Grade:
Grade7, Grade 9, Grade 11, Grade 12, Grade 16, Grade 17, Grade 18

Excellent flatness and thickness accuracy

Daxun Alloy's products have excellent flatness and thickness accuracy. We manufacture extremely uniform titanium plates with excellent formability and corrosion resistance, all based on a constant quality control system.

Surface finishing

We always use the latest automatic control technology, strive to improve the accuracy of all aspects, and roll steel under ideal conditions. Therefore, the entire surface of our titanium plates is finely processed. The excellent surface gloss of our products is appreciated by customers.

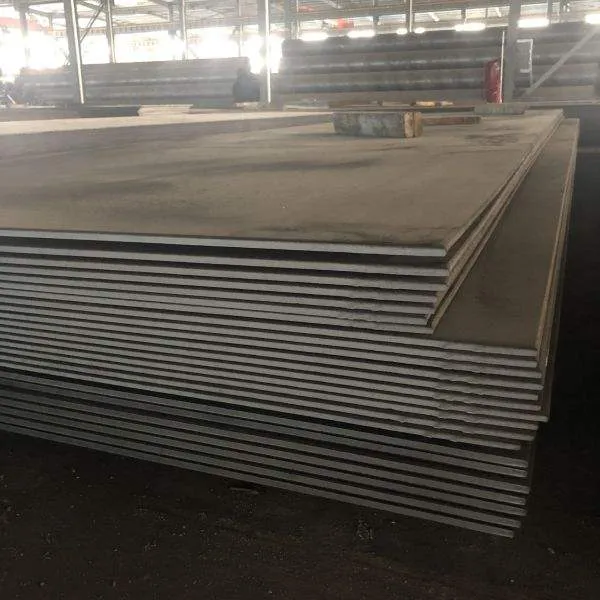

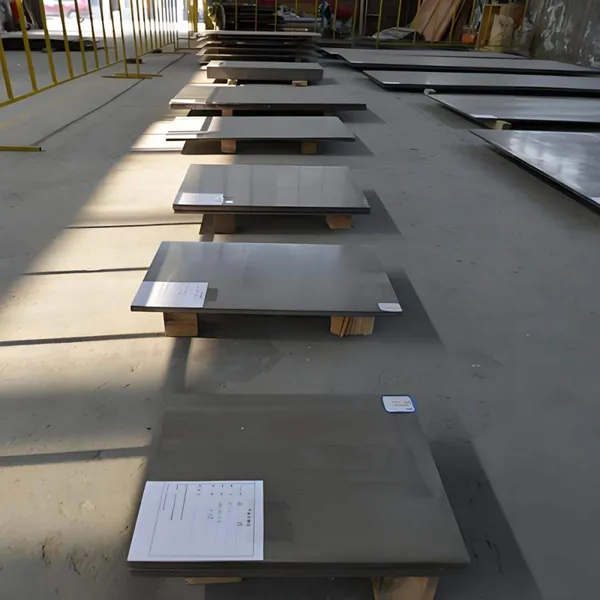

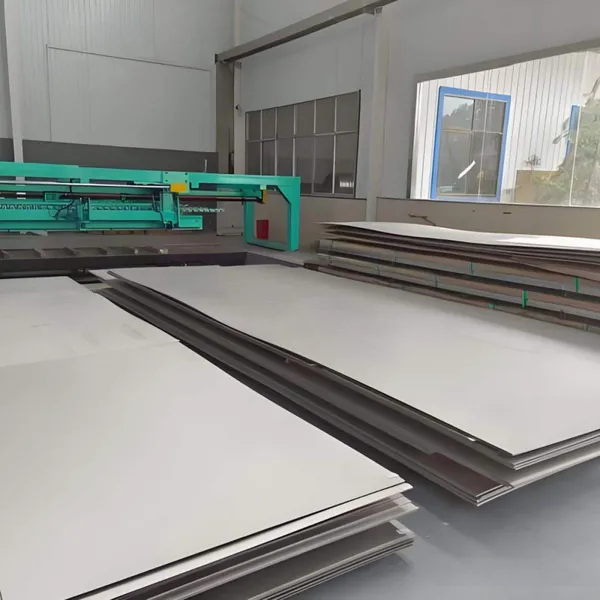

Product display

Product Tags: titanium plate , titanium sheet , Titanium alloy
