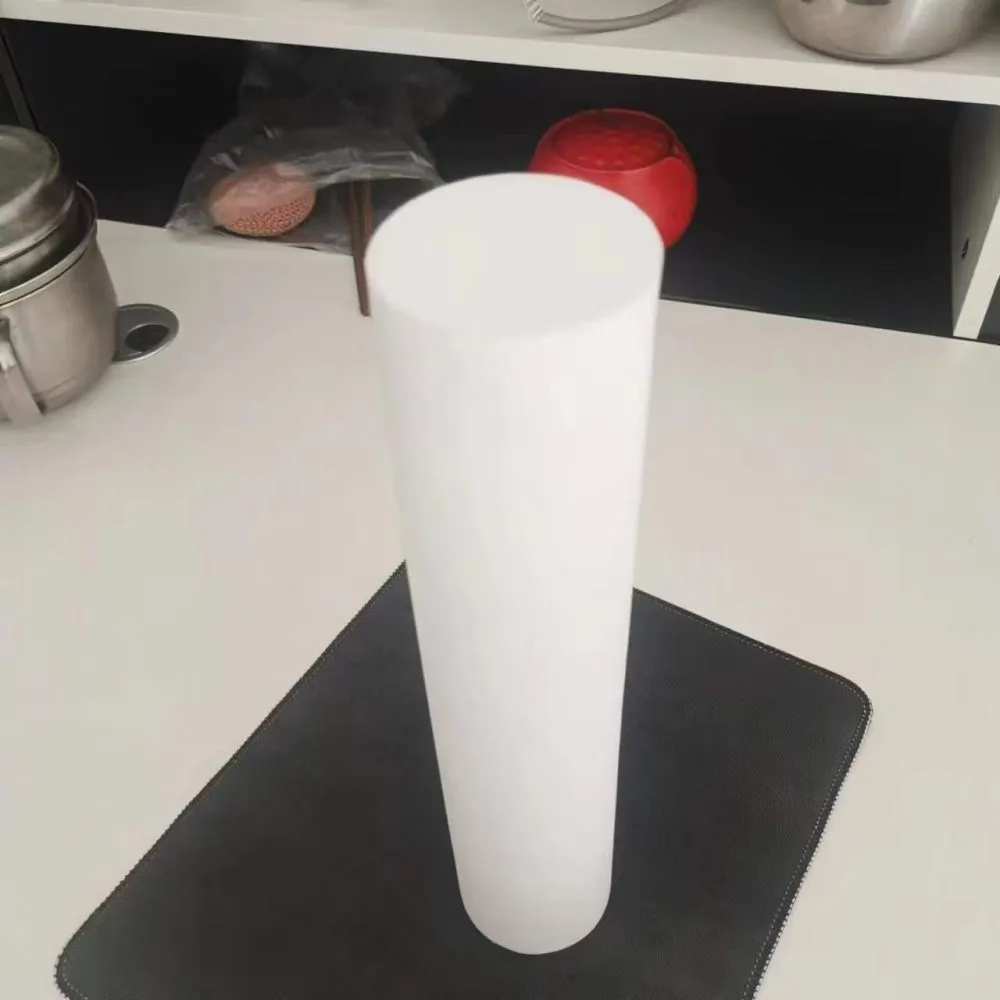

PE/PA Membrane Filter Cartridge 10 Inch Warranty 1 Year With Mill Test Report and Batch Traceability
Product Spotlights
PE/PA membrane filter cartridge, 10 inch, with 1-year warranty, Mill Test Report, and batch traceability. High chemical resistance, customizable filtration precision (0.1–100 μm), reusable, and compatible with standard housings. Trusted manufacturer since 1998 with US$5M–10M annual export.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
PE (Polyethylene) / PA (Polyamide)
Length:
10 inch (250 mm)
Outer Diameter:
2.5 inch (63 mm) – standard
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PE/PA Membrane Filter Cartridge 0.5μm 30-inch Length for Fine Filtration ApplicationsNegotiableMOQ: 1 Piece -
Polyether Sulfone/Polyamide Filter Cartridge 0.22μm 10-inch With Silicon GasketNegotiableMOQ: 1 Piece
-
Air/Steam/Nitrogen Filter Housing 316L SS 10-Year Warranty Standard CompliantNegotiableMOQ: 1 Piece
-
Air/Steam/Nitrogen Filter 304 SS 1" NPT 1 Year Warranty With Mill Test ReportNegotiableMOQ: 1 Piece
-
Air/Steam/Nitrogen Filter for Pharmaceutical Manufacturing 304 SS 0.2μm 1" Tri-ClampNegotiableMOQ: 1 Piece
Material
PE (Polyethylene) / PA (Polyamide)
Length
10 inch (250 mm)
Outer Diameter
2.5 inch (63 mm) – standard
Inner Diameter
1.0 inch (28 mm) – standard
Filtration Precision
0.1–100 μm (customizable)
Maximum Operating Temperature
80°C (PE) / 60°C (PA)
Maximum Differential Pressure
0.4 MPa at 25°C
End Cap Connection
Double open end, 222/226 O-ring (optional)
Color
White (natural) or custom
Warranty
1 year
Welcome to Anping County Boli Hardware Wiremesh Products Factory – your trusted manufacturer since 1998. Our PE/PA Membrane Filter Cartridge 10 Inch is engineered to deliver consistent filtration performance while meeting the highest standards of quality control. Each cartridge comes with a Mill Test Report and batch traceability, ensuring full transparency from production to delivery. With a 1-year warranty, this filter cartridge is designed to provide reliable and cost-effective filtration for a wide range of industrial applications.
Key Features & Technical Specifications
- High-quality PE/PA membrane material – offers excellent chemical resistance, low extractables, and high dirt-holding capacity.
- Precise filtration from 0.1 to 100 microns – customizable to meet your specific process requirements.
- 10-inch standard length – compatible with most industry-standard filter housings.
- Robust construction – withstands operating temperatures up to 80°C (PE) and 60°C (PA), with a maximum differential pressure of 0.4 MPa.
- Double open end or optional 222/226 O-ring – flexible end cap configurations to fit various systems.
- Batch traceability – each cartridge is labeled with a unique batch number, allowing full traceability of raw materials and production records.
- Mill Test Report included – provides verified data on bubble point, flow rate, and integrity test results.
- 1-year warranty – covers manufacturing defects, ensuring peace of mind.
| Parameter | Value |
|---|---|
| Length | 10 inch (250 mm ±2 mm) |
| Outer Diameter | 2.5 inch (63 mm) |
| Inner Diameter | 1.0 inch (28 mm) |
| Filtration Precision | 0.1 – 100 μm (customizable) |
| Maximum Operating Temperature | 80°C (PE) / 60°C (PA) |
| Maximum Differential Pressure | 0.4 MPa at 25°C |
| End Cap Connection | Double open end (standard); 222/226 O-ring (optional) |
| Warranty | 1 year |
Benefits for Your Business
- Consistent quality – batch traceability ensures every cartridge meets the same strict standards, reducing process variability.
- Cost savings – the membrane can be repeatedly cleaned and reused, extending service life and lowering replacement costs.
- Versatile applications – suitable for water treatment, food & beverage, chemical processing, pharmaceuticals, and electronics.
- Easy integration – standard 10-inch size fits most housings, and our optional end cap designs allow seamless retrofit.
- Risk reduction – the Mill Test Report provides documented proof of performance, helping you comply with internal quality audits.
Trust Built Over 25 Years
Anping County Boli Hardware Wiremesh Products Factory has been a reliable manufacturer since 1998, with an annual export value of US$5 million – US$10 million. Our products are shipped to over 15 markets including North America, South America, Europe, and Asia. We are committed to providing high-quality filtration solutions with complete documentation and responsive customer support. Every PE/PA Membrane Filter Cartridge is backed by a 1-year warranty and our promise of batch traceability. Contact us today to request a sample or discuss your specific filtration needs.
Frequently Asked Questions
- What filtration precision is available? Our cartridges can be manufactured with precision from 0.1 micron to 100 micron. Please specify your requirement when ordering.
- Can I reuse the cartridge after cleaning? Yes, the PE/PA membrane can be cleaned with backwashing or chemical cleaning, depending on the application. Detailed cleaning instructions are available upon request.
- What certifications does the factory hold? We focus on internal quality control. Each cartridge is supplied with a Mill Test Report, but we do not claim unspecified certifications. For specific compliance needs, please contact our sales team.
- How does batch traceability work? Each production batch is assigned a unique number, and we maintain records of raw material lots, manufacturing parameters, and test results. This number is printed on the cartridge label and the Mill Test Report.
- What is the warranty coverage? The 1-year warranty covers defects in material and workmanship under normal use. It does not cover damage from improper installation or chemical incompatibility.
- Can I get custom lengths or end caps? While 10 inch is standard, we can produce other lengths and end cap configurations. Custom orders have a minimum quantity requirement.
- What is the typical delivery time? For standard 10-inch PE/PA cartridges, delivery is usually 15–20 working days after order confirmation. Expedited shipping is available on request.
- Do you provide samples for testing? Yes, we offer sample cartridges for evaluation. Please contact us to discuss the sample cost and shipping terms.
