PE/PA Filter Cartridge 1 Micron 10 Inch 226 O-Ring Standard Compliant With Technical Support
Product Spotlights
Precision 1-micron PE/PA pleated filter cartridge with 10-inch 226 O-ring seal, offering high contaminant capacity, chemical resistance, and low pressure drop. Backed by 25+ years of manufacturing experience, global shipping, and free technical support. Customizable options for O-ring material and micron rating.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
PE (Polyester) / PA (Polyamide)
Filtration Rating:
1 Micron
Length:
10 Inch (254 mm)
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PE/PA Membrane Filter Cartridge 10 Inch Warranty 1 Year With Mill Test Report and Batch TraceabilityNegotiableMOQ: 1 Piece -
PE/PA Membrane Filter Cartridge 0.5μm 30-inch Length for Fine Filtration ApplicationsNegotiableMOQ: 1 Piece
-
Polyether Sulfone/Polyamide Filter Cartridge 0.22μm 10-inch With Silicon GasketNegotiableMOQ: 1 Piece
-
Air/Steam/Nitrogen Filter Housing 316L SS 10-Year Warranty Standard CompliantNegotiableMOQ: 1 Piece
-
Air/Steam/Nitrogen Filter 304 SS 1" NPT 1 Year Warranty With Mill Test ReportNegotiableMOQ: 1 Piece
Material
PE (Polyester) / PA (Polyamide)
Filtration Rating
1 Micron
Length
10 Inch (254 mm)
End Cap Configuration
226 O-Ring
Operating Temperature
Up to 80°C (176°F)
Maximum Differential Pressure
4.0 bar (58 psi)
Filtration Efficiency
≥99.99% at rated micron
Applications
Water treatment, chemical processing, food & beverage, pharmaceuticals
Welcome to Anping County Boli Hardware Wiremesh Products Factory – a trusted manufacturer since 1998 with an annual export value of US$5-10 million. Our PE/PA Filter Cartridge 1 Micron 10 Inch 226 O-Ring represents a reliable filtration solution for demanding industrial applications. Combining high-quality polyester (PE) and polyamide (PA) media with a precision 226 O-ring seal, this cartridge delivers consistent micron-rated filtration, easy installation, and extended service life. Backed by our dedicated technical support team, it is designed to meet the needs of global clients in water treatment, chemical processing, and more.
Key Features & Technical Specifications
| Filtration Medium | PE (Polyester) / PA (Polyamide) – thermally bonded, depth-type pleated structure |
| Micron Rating | 1 micron absolute – high efficiency for fine particle removal |
| Size | 10 inch (254 mm) length, standard industry dimensions |

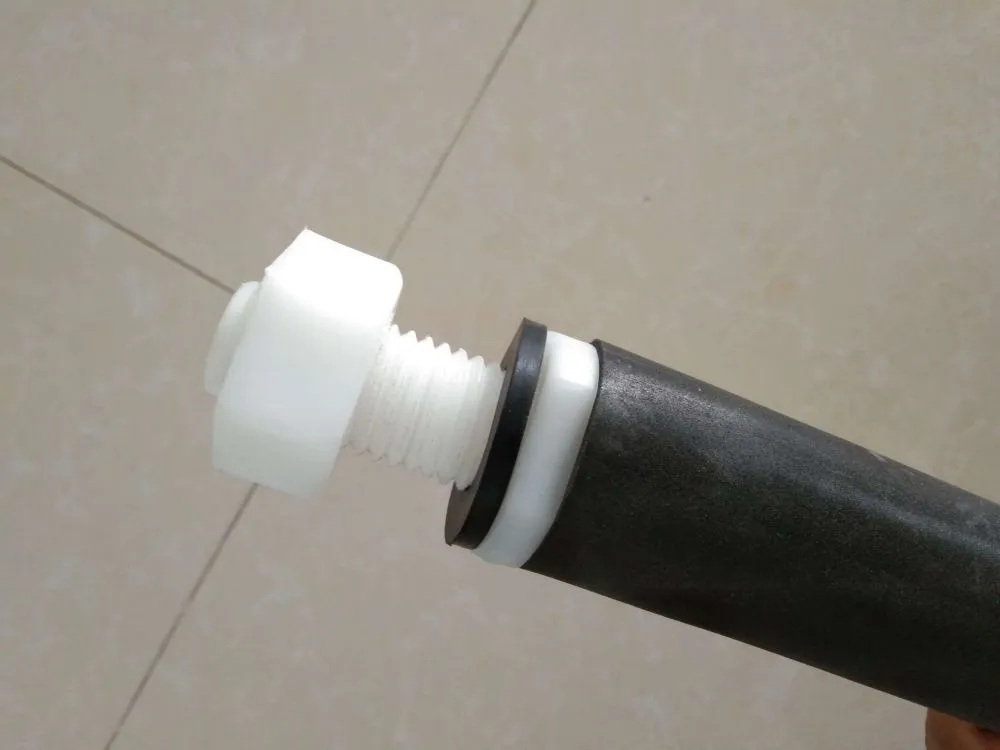

| End Cap | 226 O-Ring (double O-ring optional) – leak-proof, compatible with standard housings |
| Operating Temperature | Up to 80°C (176°F) – suitable for hot liquids |
| Max Differential Pressure | 4.0 bar (58 psi) at 25°C |
| Filtration Efficiency | ≥99.99% for particles >1 micron (tested per ISO 4572) |
| Applications | Water purification, chemical filtration, food & beverage, pharmaceutical, electroplating, oil & gas |
Detailed Product Advantages
- High Contaminant Holding Capacity: The pleated structure of PE/PA media provides a large surface area, allowing the cartridge to trap more particles without clogging quickly. This reduces replacement frequency and operating costs.
- Excellent Chemical Compatibility: PE and PA materials resist a wide range of chemicals, including acids, alkalis, and organic solvents. The cartridge is suitable for aggressive fluid filtration in chemical plants.
- Secure 226 O-Ring Seal: The double O-ring design (optional) ensures a positive seal in the housing, preventing bypass flow and maintaining constant filtration efficiency.
- Easy Installation & Retrofit: With standard 10-inch length and 226 end cap, this cartridge fits most commercial filter housings. No special tools required – simply drop in and replace.
- Low Differential Pressure: The open pleat geometry minimizes flow resistance, saving energy in pump systems.
- Compliance with Standards: Manufactured in accordance with international quality control procedures. The cartridge meets equivalent filtration performance standards (e.g., NSF/ANSI 61 for drinking water applications – available upon request).
- Customizable Options: We can supply with different O-ring materials (EPDM, Viton, NBR) and end cap configurations (222, 226, DOE) based on your requirements. Micron ratings from 0.5 to 100 microns are also available.
Why Customers Choose Us
- Over 25 years of manufacturing experience in wire mesh and filtration products (since 1998).
- Annual export value of US$5-10 million, serving clients across North America, South America, Europe, Southeast Asia, Africa, and Oceania.
- Convenient access to ports of Tianjin, Qingdao, Shanghai, and Foshan for fast global shipping.
- Dedicated technical support team provides free consultation on filter selection, system design, and troubleshooting.
- Rigorous quality control – each cartridge is tested for burst strength, flow rate, and filtration efficiency before shipment.

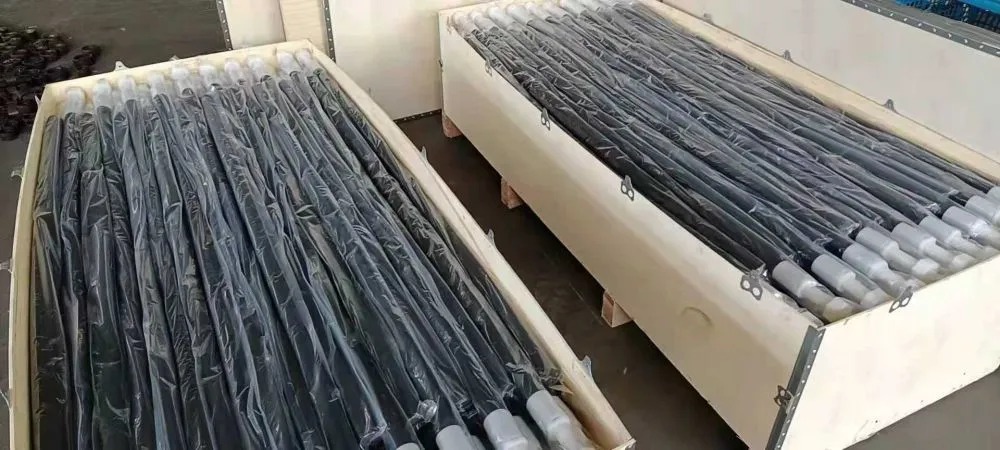

- Flexible packaging: bulk, individual polybag, or customized box with your brand.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between PE and PA media?
A: PE (polyester) offers good chemical resistance and is cost-effective for general water filtration. PA (polyamide, also known as nylon) provides higher temperature tolerance and better resistance to solvents and oils. Our cartridge combines both materials to optimize performance across various applications. -
Q: Can this cartridge be used for drinking water?
A: Yes, the materials used are food-grade compatible. We can supply a version that meets NSF/ANSI 61 standard for drinking water systems upon request. Please confirm your requirement when ordering. -
Q: What is the recommended replacement interval?
A: Replacement frequency depends on the fluid quality and operating conditions. Typically, when the differential pressure reaches 2.0 bar (30 psi) or the flow rate drops significantly, it is time to replace the cartridge. For most applications, a change every 3–6 months is common. -
Q: Does the cartridge come with a core center tube?
A: This 10-inch 226 O-ring cartridge is a standard nominal size without an internal core. It is designed to be supported by the housing’s center rod. If you require a cartridge with a core, please contact us for custom designs. -
Q: What O-ring materials are available?
A: Standard O-ring is EPDM (suitable for water and mild chemicals). Viton (FKM) is available for high-temperature and aggressive chemical applications, and NBR (Buna) for oil-based fluids. Please specify your preference. -
Q: How do I ensure the cartridge fits my housing?
A: Our 226 O-ring end cap follows industry standard dimensions. Measure your housing’s cartridge length, O-ring groove diameter, and seal type. The 10-inch length is nominal; actual length is 254 mm. If you are unsure, we can send a sample for testing. -
Q: Is technical support available after purchase?
A: Absolutely. Our team provides free technical support via email, phone, or video call. We can help with system design, troubleshooting, and optimization to ensure you get the best filtration performance. -
Q: What is the minimum order quantity (MOQ)?
A: For standard 10-inch 226 O-ring cartridges, the MOQ is 100 pieces. For custom configurations or bulk orders, the MOQ may vary. Please contact our sales team for details.
Trust Our Experience, Choose Quality
Anping County Boli Hardware Wiremesh Products Factory has been a reliable partner for filtration customers worldwide since 1998. With an annual export value of US$5-10 million, we understand the importance of consistent quality and on-time delivery. Our PE/PA 1-micron filter cartridge is manufactured in state-of-the-art facilities in Hebei, China, and shipped from major ports (Tianjin, Qingdao, Shanghai, Foshan). We serve markets in North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. When you choose our product, you get more than a filter – you get a long-term partner committed to your success. Contact us today for a quote or sample. We look forward to serving you!
