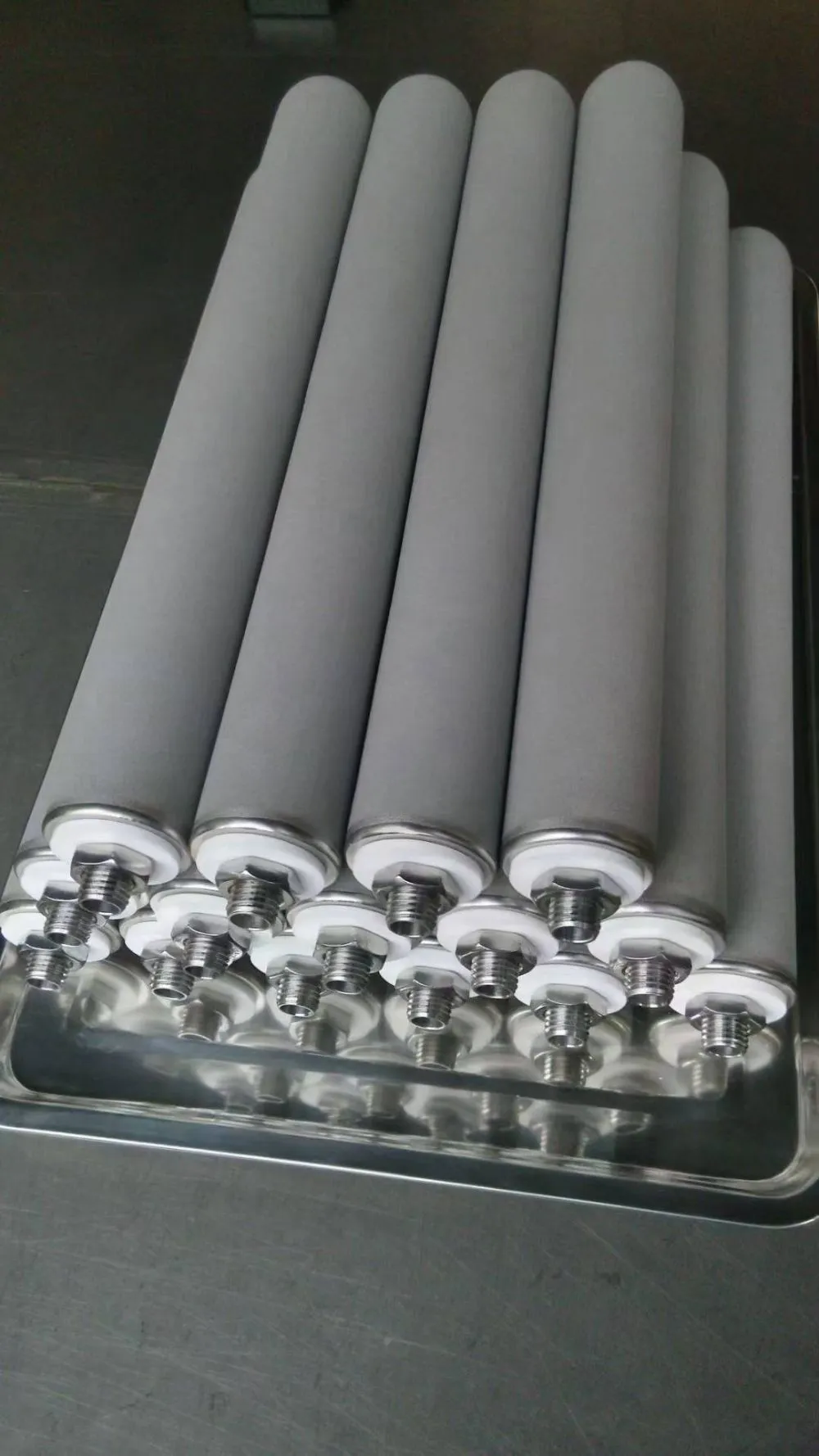

Help CenterTitanium Filter Rod, 2 Micron, 12mm Diameter, 400mm Length, With 1-Year Warranty, Mill Test Report Available
Product Spotlights
Related Products
-
Titanium Filter Rod, 3 Micron, 20mm OD, 500mm Long, 304 Stainless Steel End Cap, With Technical SupportNegotiableMOQ: 1 Piece -
Titanium Filter Rod, 0.45μm, 15mm Diameter, 300mm Length, Backwashable, for Water TreatmentNegotiableMOQ: 1 Piece
-
High-Purity Titanium Filter Rod, 99.9% Titanium, 20mm Diameter, 1μm Filtration Rating, for Chemical ProcessingNegotiableMOQ: 1 Piece
-
Sintered Titanium Filter Rod, 5 Micron, 30mm Outer Diameter, 1000mm Long, Standard CompliantNegotiableMOQ: 1 Piece
-
Titanium Filter Rod, 0.2μm, 6mm OD, 250mm Long, 10 Bar Pressure, for Food & Beverage FiltrationNegotiableMOQ: 1 Piece
Anping County Boli Hardware Wiremesh Products Factory, established in 1998, is a professional manufacturer specializing in high-performance filtration solutions. With an annual export value of US$5–10 million and a global presence across North America, Europe, Asia, and beyond, we bring decades of expertise to every product. Our Titanium Filter Rod (2 Micron, 12mm Diameter, 400mm Length) is engineered for demanding filtration applications where precision, durability, and reliability are non-negotiable. Each rod is backed by a 1-year warranty and a Mill Test Report is available upon request, ensuring full traceability and quality assurance.
This filter rod is manufactured from high-purity titanium powder through a sintering process, creating a uniform porous structure with a precise 2-micron filtration rating. The 12mm diameter and 400mm length make it ideal for use in compact filter housings, laboratory equipment, and industrial process lines. Its exceptional corrosion resistance allows it to handle aggressive chemicals, high temperatures, and steam sterilization, making it a versatile choice for the pharmaceutical, chemical, food & beverage, and water treatment industries.
Key Features & Benefits
- Precision Filtration: 2 micron absolute rating ensures removal of fine particles, bacteria, and contaminants.
- High-Temperature Resistance: Withstands up to 600°C in inert atmospheres, suitable for hot gas filtration and steam sterilization.
- Chemical Compatibility: Inert to most acids, alkalis, and organic solvents – ideal for corrosive media.
- Reusable & Cleanable: Can be backwashed, ultrasonically cleaned, or regenerated, reducing replacement costs.
- Mechanical Strength: Robust sintered structure resists deformation under high differential pressure.
- Customizable: End connections (threaded, flanged, plain) and length can be tailored to your system.
- Certified Quality: Mill Test Report provides chemical composition and mechanical properties for each batch.
Technical Specifications
| Parameter | Value |
| Material | Titanium (Grade 1 or 2) |
| Filtration Rating | 2 Micron (nominal / absolute) |
| Outer Diameter | 12 mm ±0.2 mm |
| Length | 400 mm ±2 mm |
| Porosity | 30–50% (adjustable) |
| Max Operating Temperature | 600°C (inert gas), 300°C (air/steam) |
| Max Differential Pressure | 2.5 bar (at 20°C) |
| End Connections | Plain / Threaded (M10, M12, 1/4" NPT, etc.) |
| Warranty | 1 Year |
Our titanium filter rods are manufactured using advanced sintering techniques that ensure consistent pore distribution and high mechanical integrity. The 2-micron rating corresponds to a bubble-point test that guarantees the majority of pores are below 2 µm, providing reliable retention of particles in the sub-micron range. This makes them particularly effective for polishing filtration, catalyst recovery, and sterile filtration of gases and liquids.
Why Choose Us?
With over 25 years of manufacturing experience, Anping County Boli Hardware Wiremesh Products Factory has supplied filtration components to clients in more than 20 countries. Our annual export volume of US$5–10 million reflects the trust placed in our products by international buyers. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery. Each titanium filter rod comes with a 1-year warranty against manufacturing defects, and a Mill Test Report is provided upon request to verify material composition and performance. Whether you need a standard rod or a custom design, our team is ready to support your project with technical expertise and competitive pricing. Contact us today to discuss your filtration requirements and experience the reliability of a true manufacturer.
Frequently Asked Questions
-
Q: What is the exact filtration efficiency of the 2 micron rod?
A: The rod is rated as 2 micron nominal (up to 90% efficiency) or absolute (99.9% retention) depending on the test standard. We can provide bubble-point and porometry data upon request. -
Q: Can this filter rod be used for hot gas filtration?
A: Yes, it can withstand up to 600°C in inert environments and 300°C in air or steam. It is ideal for hot gas dedusting, catalytic processes, and steam sterilization. -
Q: Is the rod reusable after contamination?
A: Absolutely. The sintered titanium structure can be cleaned by backflushing, ultrasonic cleaning, or chemical washing. Proper cleaning restores flow capacity and extends service life. -
Q: Do you offer custom lengths or diameters?
A: Yes, we can produce rods with custom diameters, lengths, and end connections. Minimum order quantity may apply. Please provide your specifications for a quotation. -
Q: What is the typical lead time for standard rods?
A: For standard 12mm x 400mm rods, we typically ship within 7–15 working days depending on quantity. Custom orders may require 15–25 days. -
Q: Does the product come with a Mill Test Report?
A: A Mill Test Report is available upon request, containing chemical composition and mechanical properties of the titanium material. There is no extra charge for the report. -
Q: What is the warranty coverage?
A: We provide a 1-year warranty against manufacturing defects such as cracks, excessive porosity, or dimensional deviations. It does not cover wear from abrasive particles or improper cleaning. -
Q: Can I get a sample before bulk order?
A: Yes, samples are available for evaluation. Sample cost is negotiable, and shipping is at buyer's expense. We also offer a sample discount for bulk orders.
