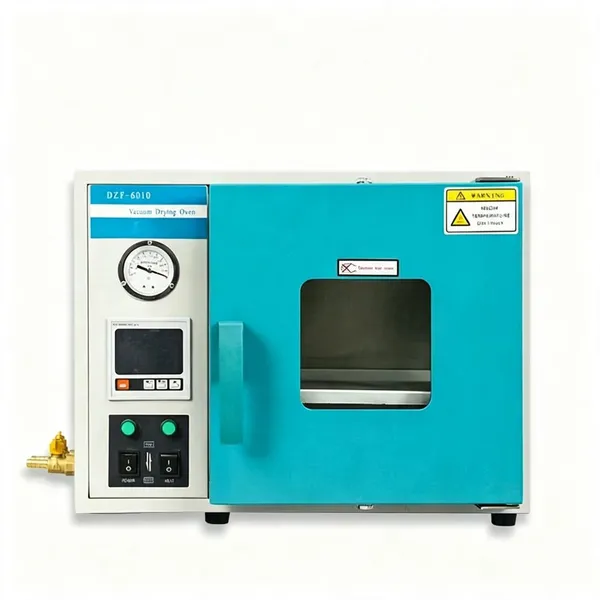

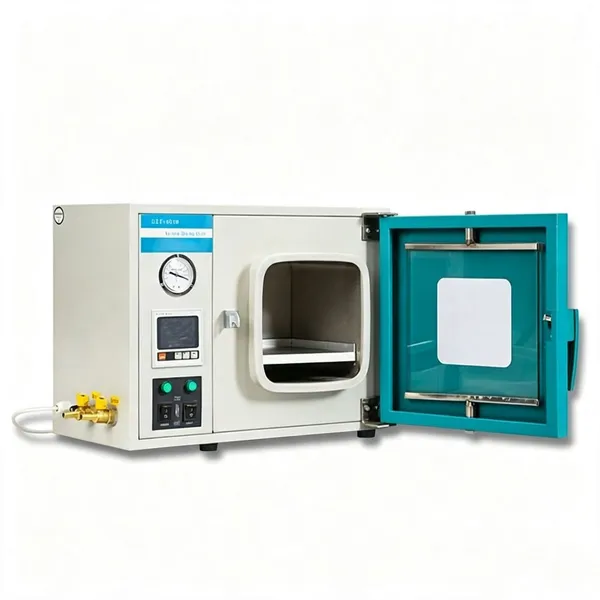

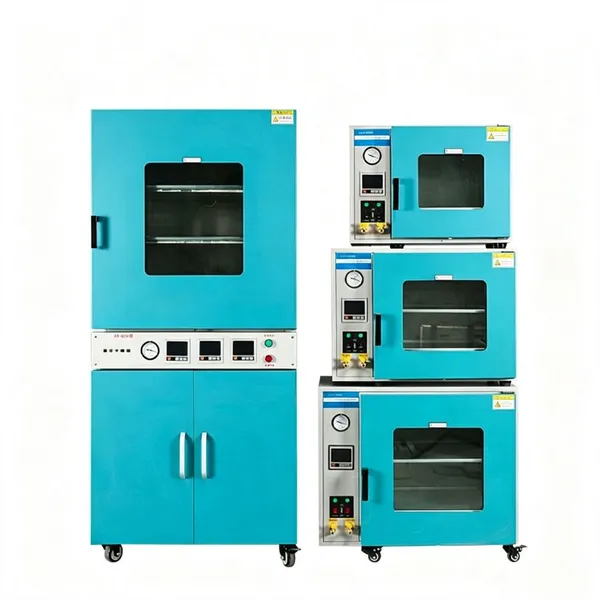

Help Center2020 New Laboratory Vacuum Drying Oven With Pump
Product Spotlights
Microcomputer PID Control: Equipped with microcomputer intelligent PID control technology, this drying oven provides precise temperature control, timing, and over-temperature alarm functions, ensuring reliable and consistent performance for various laboratory applications.
Related Products
-
Electric Blast Drying Oven Lab Forced Air Drying Oven Bench-Top Forced Air Drying OvenNegotiableMOQ: 1 Piece -
50~300 Degree Hot Air Oven/Thermostat Incubator Drying Oven Industrial/Chemical Drying Ovens for LaboratoryNegotiableMOQ: 1 Piece
-
Lab Vacuum Drying Oven Heating Equipment for LaboratoriesNegotiableMOQ: 1 Piece
-
DZF-6050 Series Microcomputer Control Benchtop Vacuum Drying Oven Laboratory Vacuum Drying OvenNegotiableMOQ: 1 Piece
-
Lab Stainless Steel Electric Heating Blast Dry Oven 40L-220L Customizable DHG Series Forced Air Drying Oven RT. +10~300CNegotiableMOQ: 1 Piece

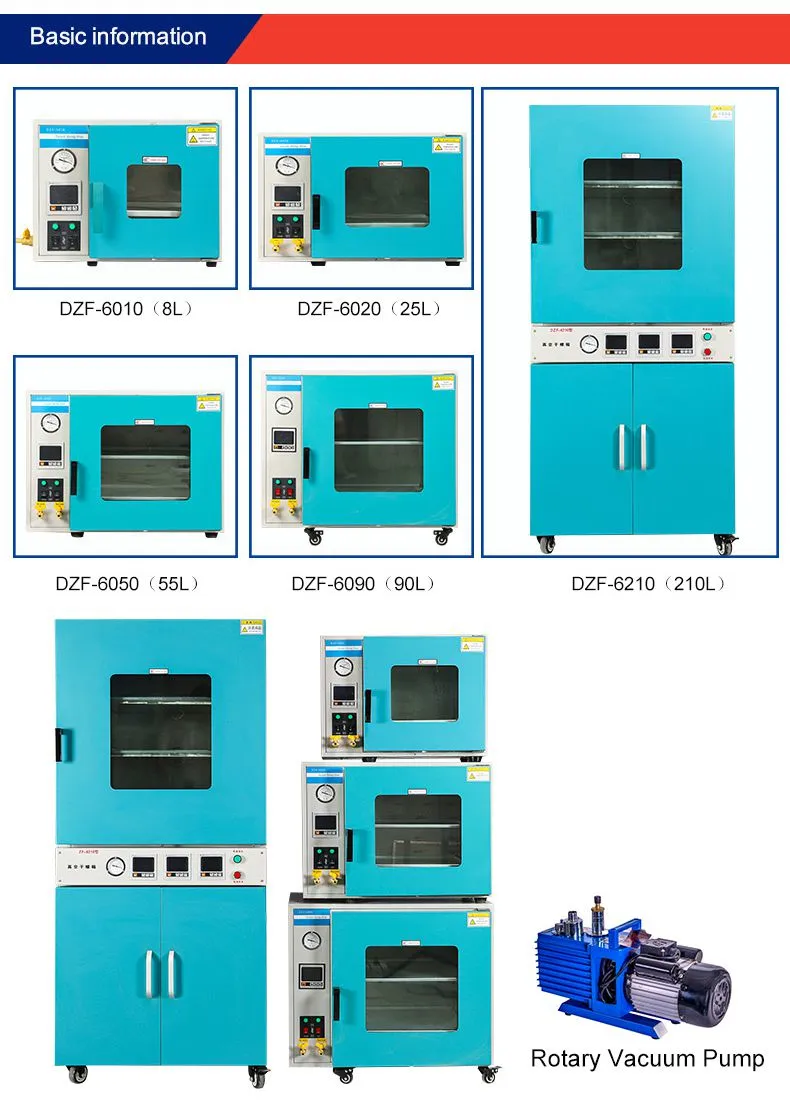

| Model(DZF) | 6050 6053 |
6051 | 6021 | 6020 | 6500 | 6210 | 6090 |
| Voltage | AC 240V50HZ / 110V60HZ | ||||||
| Input power(w) | 1400 | 400 | 250/600 | 2800 | 2060 | 1150 | |
| Temperature control range | RT+10~250℃ 6021 is 200℃ | ||||||
| Temperature resolution/fluctuation | 0.1℃/±1℃ | ||||||
| Vacuum degree | 133Pa | ||||||
| Internal dimensions(cm)W*D*H |
41.5×37×34.5 50L |
30×30×27.5 25L |
63×81×84.5 430L |
56×60×64 215L |
45×45×45 90L |
||
| External dimensions(cm)W*D*H | 73×56×55 | 60.5×49×45 | 79×103×185.5 | 72×82×175 | 61×59×135 | ||
| Shelves | 2Pcs,6053 is 3Pcs | 1Pcs | 4Pcs,(ITC) | 3Pcs,(ITC) | 2Pcs,(ITC) | ||
| Working chamber material | Stainless steel(1Gr18Ni9T) | Cold-rolled sheet | Stainless steel(1Gr18Ni9Ti) | ||||
Products Description

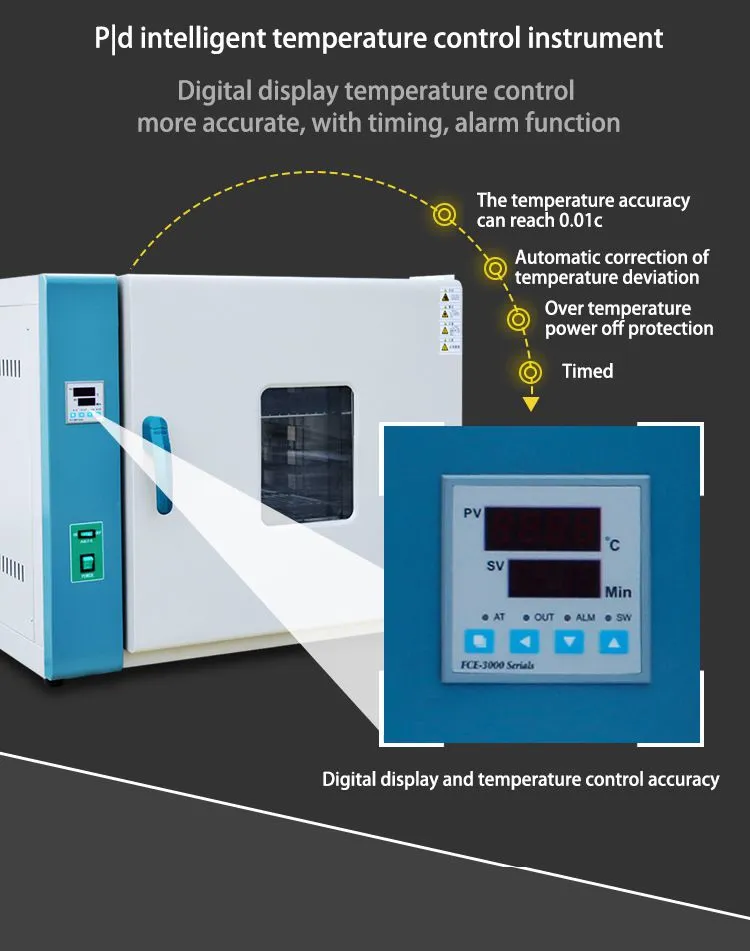

1. Microcomputer intelligent PID control technology, the system has temperature control, timing, over over-temperature alarm function.

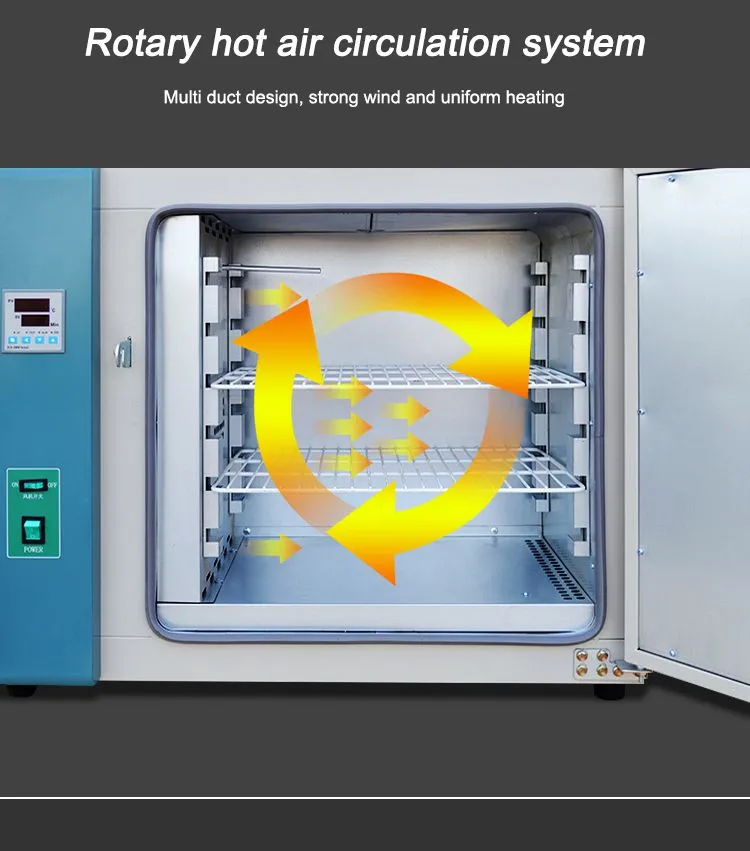

2. The hot air circulation system consists of low-noise fans and air ducts. Reasonable air duct and circulation system to stabilize the temperature in the working chamber;

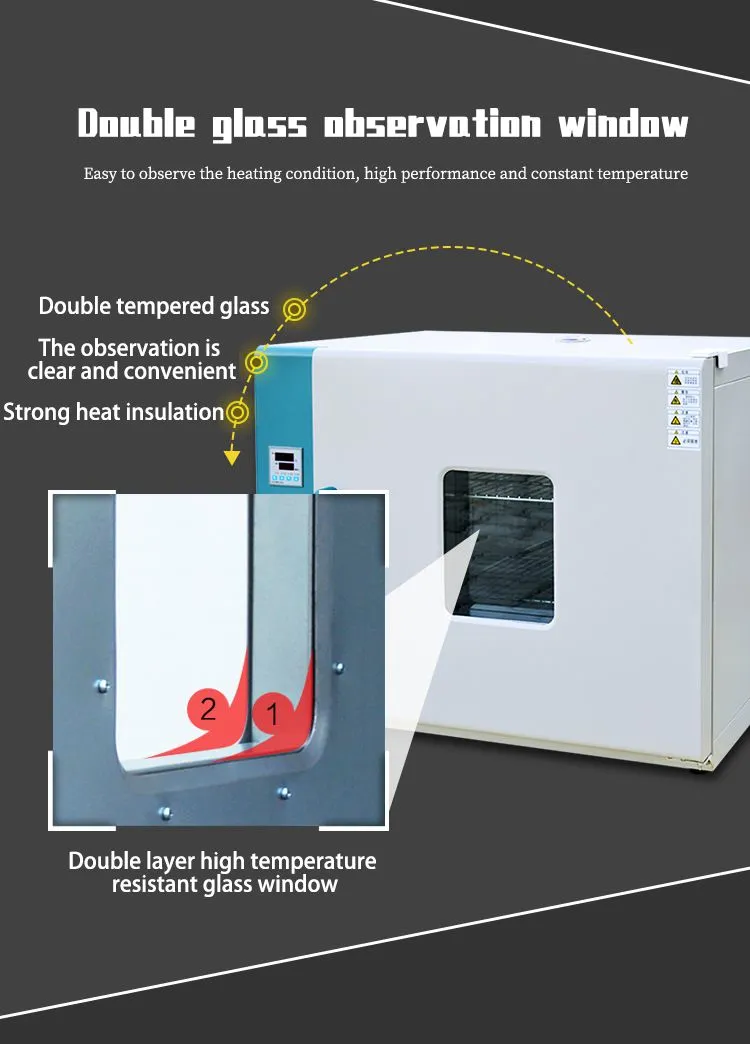

3. The outer casing is made of high-quality cold-rolled steel plate treated by environmentally-friendly electrostatic spray. The overall design is beautiful and novel, and has a large viewing angle observation window.
4. The inner tank is divided into two types: mirror stainless steel and galvanized steel. The semi-arc shape is easy to clean.
5. The spacing of the shelves in the working room and the number of shelves can be adjusted to facilitate access to samples of different specifications.

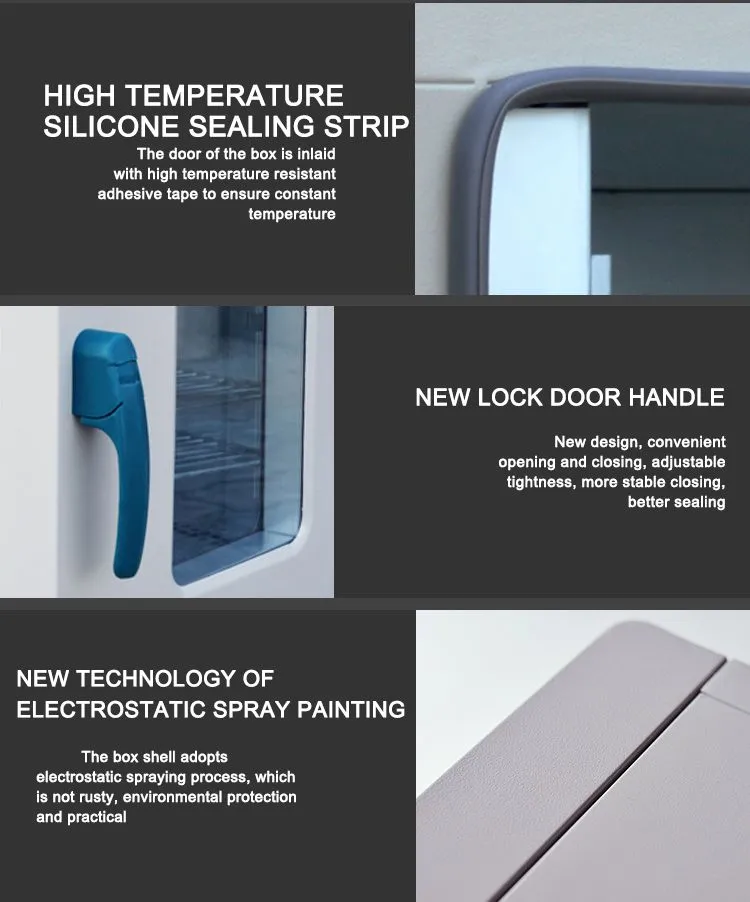

6. Use high-temperature-resistant silica gel as the sealing door edge and high-temperature heating pipe as the heating element to ensure safety and longer service life;
7. Ergonomic fastening handle for easy handling and tightness.
Product Paramenters
INNER SIZE |
EXTERNAL SIZE |
TEMPERATURE |
HEATING UP |
ACCURACY |
UNIFORMITY |
POWER |
POWER OF WORK |
|
W*H*D(CM) |
W*H*D(CM) |
RANGE(°C) |
TIME |
(°C) |
(°C) |
(KW) |
||
VORIL-72L |
45×40×40 |
66×82×52 |
(A-D)A:200°C |
RT~100°C |
±0.3 |
±1% |
220V |
2.2 |
VORIL-125L |
50×50×50 |
69×100×64 |
4.6 |
|||||
VORIL-270L |
60×90×50 |
93×125×70 |
5.5 |
|||||
VORIL-600L |
100×100×60 |
133×165×80 |
6 |
|||||
VORIL-1000L |
100×100×100 |
120×160×120 |
8 |
High Temperature Oven Features
1. Outside SECC steel, fine powder coating treatment. Inner SUS#304 stainless steel.
2. Use a new high temperature-resistant long shaft motor.
3. Turbine fan.
4. Silicone forced tight.
5. Over temperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Heating system: PID+S.S.R.
8. The thermostat: PID microcomputer control, automatic constant temperature, the temperature quickly compensation function.
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass windows can be customized.
