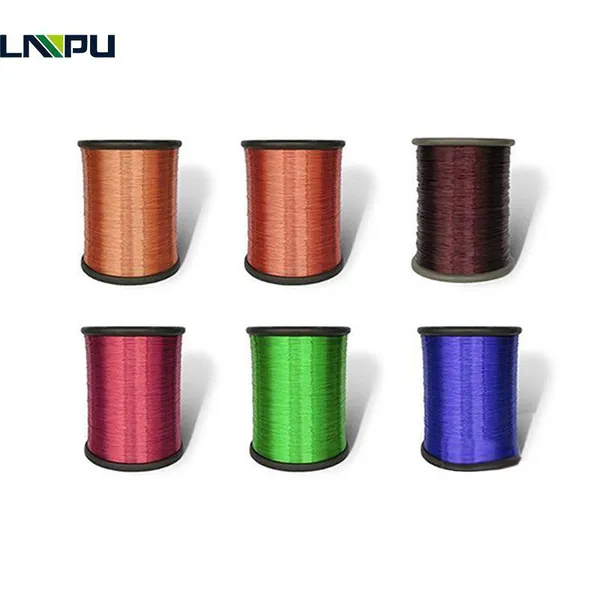

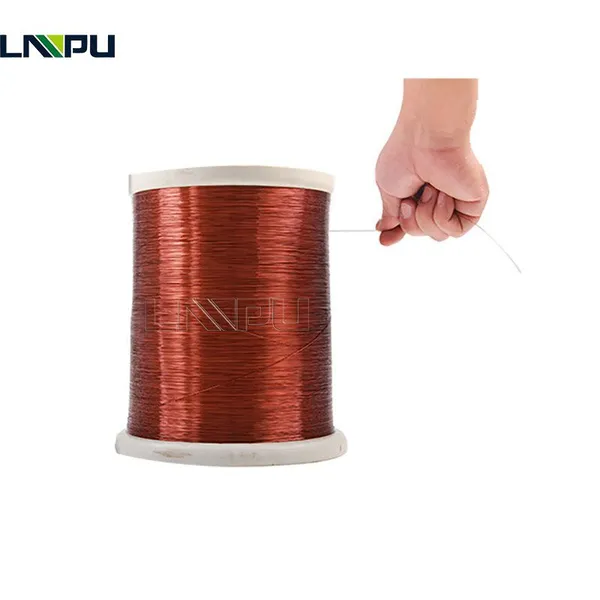

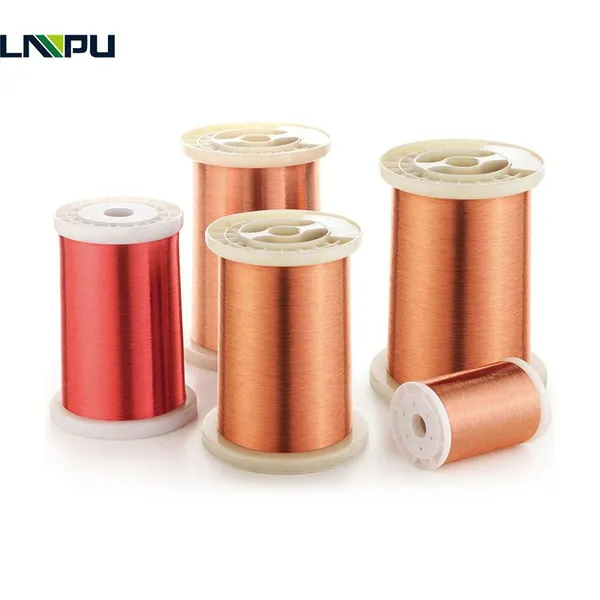

China Factory Price Enameled Copper Clad Aluminum CCAW Fans Motor Winding Wire

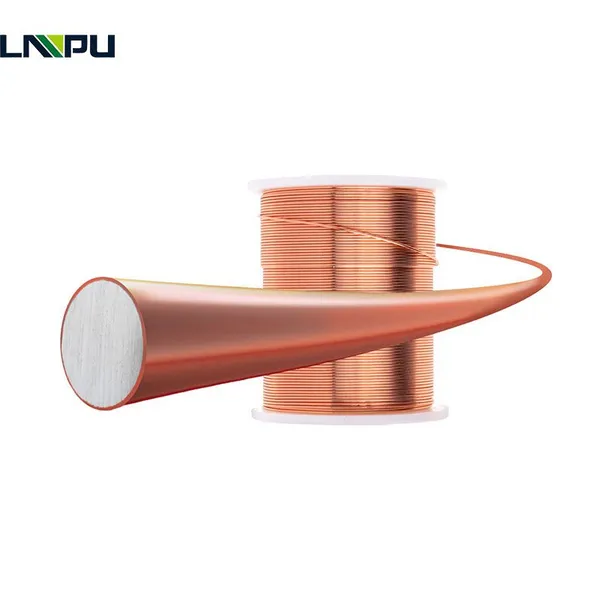

Enameled Copper clad aluminum wire adopts advanced cladding welding manufacturing technology,the high quality copper strip concentrically coated on the outer surface of the conductor,such as aluminum rod or wire and copper layer and the core formed between firm metallurgical bonding between the atoms. Make the combination of two different metal materials as an integral whole, can be like processing a single wire drawing and annealing processing, copper and aluminum in the process of drawing with variable diameter ratio,volume ratio of copper layer remained relatively constant.
Enameled Type |
Polyester |
Modified Polyester |
polyester-imide |
Polyamide-imide |
polyester-imide /Polyamide-imide |
Insulation Type |
PEW/130 |
PEW(G)/155 |
EIW/180 |
EI/AIW/200 |
EIW(EI/AIW)220 |
Thermal class |
130, CLASS B |
155, CLASS F |
180, CLASS H |
200, CLASS C |
220, CLASS N |
Conductor |
CCA |
CCA |
CCA |
CCA |
CCA |
Size(mm) |
0.19-4.0 |
0.19-4.0 |
0.19-4.0 |
0.19-4.0 |
0.19-4.0 |
Enamel thickness |
Grade(0,1,2,3) |
Grade(0,1,2,3) |
Grade(0,1,2,3) |
Grade(0,1,2,3) |
Grade(0,1,2,3) |
Standard |
IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
EC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
IEC60317-0-2 IEC60317-29 MW36-A SZ Enterprise standard SJ/T11223-2000 |
Main Features
1) Good electric conductivity
2) Direct soldering performance
3)High breakdown voltage
4) Sustained and stable quality
5) Tin soldering,Good adhesion
6)Wide Range, round:0.19-4.0 ECCA Wire are available ;
7)Professional Tech and sales Work Team;
8)High quality samples for testing;
10)NEMA/IEC/JIS/GB and any Local Standards base on requirements;
- Sealed motor working under high temperature
- Transformer
- Modern instrument
-Generator
-Welding machine
Perfect Quality Test Equipment
* A full set of product testing equipment.
* Strictly Testing.
* High quality samples for testing.
Export World-Magnet wire
* Our product are exported to more than 50 countries around the world.
* Cooperated with more than 200 overseas customers.
PT-25, PT-30, PT-60, 30/50kg wooden spool,or according to customers demands.
[Q]: How about your company’s annual production capacity?
A : Our Company’s annual production is about 8,000 tons.
[Q]:What’s your company ‘s product scope?
A : We have many kinds of products ,such as enameled aluminum wire, enameled cooper wire, paper covered magnet wire, fiber glass covered magnet wire and other aluminum/cooper magnet wire products.
[Q]: What’s the temperature-resist grade of your enameled aluminum wire?
A : We produce the thermal class of enameled aluminum wire from 130 to 220 Centigrade.
[Q]: What is specifications of enameled aluminum wire your company can produce?
A : Gauge of enameled aluminum wire:
Enameled round aluminum wire: 0.2mm-8.0mm
Enameled flat aluminum wire: a: 1-6mm, b: 3-16mm
[Q]: Can you offer Round Enameled wire with PEW, C200?
A : Yes, for favorable offer, There is one problem need confirm again, PEW is for Class 155 or 180, not Class 200.
[Q]: Could you provide the free samples?
A : Yes, We could provide the free sampels within 0.5kg. You only need undertake the express charges.
[Q]: What’s the price of your enameled aluminum wire?
A : Please sent an email to our [https://magnetwire.en.china.cn ] or a fax to 0086-371-65861123, our salesman will reply you as soon as possible.
