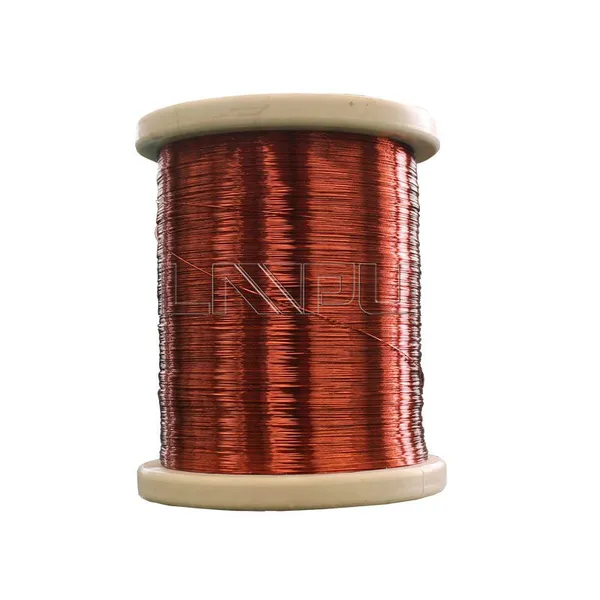

Help Center35 Gauge Awg Annealed Motor Lacquered Enamelled Copper Wire for Transformer Winding
Related Products
-
PEW UEW 41 42 43 44 45 46 47 SWG Enameled Copper WireUS$ 7.5 - 13.5MOQ: 1 Kilogram -
AWg 27 Winding Wire Round Enameled Copper Wire for Motor WindingUS$ 11.07 - 20.17MOQ: 1 Kilogram
-
Germany Market Enameled Copper Winding Wire Price Insulated Magnet WireUS$ 15.8 - 21.39MOQ: 1 Kilogram
-
Dubai Copper Enameled Wire for Winding MotorsUS$ 10.18 - 17.97MOQ: 1 Kilogram
-
UL Standard Manufacturer SWG 27 28 29 30 31 32 33 Enameled Copper Magnet WireUS$ 10.23 - 15.87MOQ: 1 Kilogram
Main Application Of Enameled Copper Wire
1-Sealed motor working under high temperature
2-Transformer
3-Modern instrument
4-Generator
5-Welding machine
Class B Triple Insulated Magnet Wire Enamelled Copper Wire |
||||||
Enameled copper wire
|
Type |
Q(ZY/XY)-1/200 |
||||
Diameter |
0.27mm |
|||||
Standard |
IEC60317 |
|||||
Test Item |
Unit |
Technical Requirement |
Test Result |
|||
Elongation |
>=22 % |
30% |
||||
spring-back angle |
<=47 |
43 |
||||
Flexibility and adhesion |
winding test |
1D |
1 |
|||
Jerk test |
No Crack, and No losing adhesion |
ok |
||||
Heat shock |
0.630mm |
ok |
||||
Cut-through resistance |
cut-through resistance |
2 |
||||
Breakdown Voltage |
KV |
>=2.2 KV |
7.6 7.0 6.8 6.2 7.7 |
|||
Scratch Resisting(Average) |
N |
3.25 N |
7.98 |
|||
Scratch resisting(Min) |
N |
2.75 N |
7.12 |
|||
Main Features
1) Enameled Copper Wire is one kind of magnet wire which is consisted of bare round copper which accord with EN 13601Cu-ETP standard as the conductor and multi-layer insulation layers. The multi-layer insulation layers can be polyester, modified polyester or polyester-imide and so on.
2) Our Enameled Round Copper Wire is one kind of enameled wire which has high heat resistance. Its temperature class can be from 130℃ to 220℃.
3) Our Enameled Round Copper Wire uses TU2 oxygen-free copper as raw material.TU2 oxygen-free copper has good conductivity and heat conductivity.
Main Features
Brand Enamel: ELANTAS
Diameter: Continuous production for wide-range of different sizes.
Features: Double or Three Type Insultaions covered wires are available.
Service:Free techincal consultation and suggestion.
Perfect Quality Test Equipment
* A full set of product testing equipment.
* Strictly Testing.
* High quality samples for testing.
Export World-Magnet wire
* Our product are exported to more than 50 countries around the world.
* Cooperated with more than 200 overseas customers.
[Q]: How about your company’s annual production capacity?
A : Our Company’s annual production is about 8,000 tons.
[Q]:What’s your company ‘s product scope?
A : We have many kinds of products ,such as enameled aluminum wire, enameled cooper wire, paper covered magnet wire, fiber glass covered magnet wire and other aluminum/cooper magnet wire products.
[Q]: What’s the temperature-resist grade of your enameled aluminum wire?
A : We produce the thermal class of enameled aluminum wire from 130 to 220 Centigrade.
[Q]: What is specifications of enameled aluminum wire your company can produce?
A : Gauge of enameled aluminum wire:
Enameled round aluminum wire: 0.2mm-8.0mm
Enameled flat aluminum wire: a: 1-6mm, b: 3-16mm
[Q]: Can you offer Round Enameled wire with PEW, C200?
A : Yes, for favorable offer, There is one problem need confirm again, PEW is for Class 155 or 180, not Class 200.
[Q]: Could you provide the free samples?
A : Yes, We could provide the free sampels within 0.5kg. You only need undertake the express charges.
[Q]: What’s the price of your enameled aluminum wire?
A : Please sent an email to our [https://magnetwire.en.china.cn ] or a fax to 0086-371-65861123, our salesman will reply you as soon as possible.
