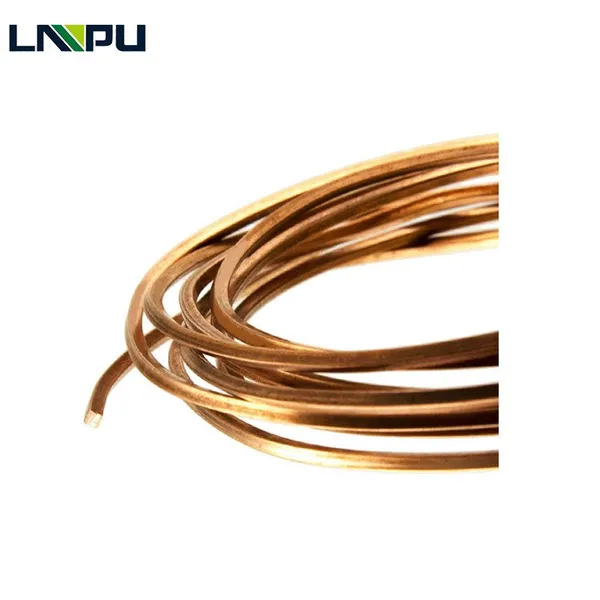

Enamelled Copper Wire for Winding Speaker Square Magnet Wire
US$ 9.68 - 19.54
MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Type:
Insulated
Certification:
ISO9001
Insulation Material:
Enameled
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
22 American Wire Gauge(AWG)Enamel Coated Wire(ECW) Can Withstand 200 Degrees Celsius of Heat Heavy Insulated Magnet WireUS$ 10.67 - 15.97MOQ: 1 Kilogram -
18 Swg Enamel Insulated Copper Wire Price Per Ton in Pakistan for WindingUS$ 11.07 - 22.37MOQ: 1 Kilogram
-
28 Gauge Enamelled Copper Wire Price Per Meter for Motor WindingUS$ 10.35 - 22.37MOQ: 1 Kilogram
-
Best Price of Dubai 1.25Mm Copper Enamel Winding WireUS$ 11.03 - 21.12MOQ: 1 Kilogram
-
1 Kg Copper Ceiling Fan Winding Wire Price in India Copper Magnet WireUS$ 15.8 - 18.68MOQ: 1 Kilogram
Type
Insulated
Certification
ISO9001
Insulation Material
Enameled
Conductor Material
Copper
Conductor Type
Solid
Model Number
Enameled Copper Wire
Brand Name
LP Magnet Wire
Place of Origin
Henan, China
Thermal Class
130-220C
Delivery time
7-30 Days
Standard
IEC,NEMA,GB,JIS
Color
Natural
Diameter
0.025mm--6mm
Insulation
PEW, PIW, EIW, AIW, EI/AIW
Bobbin
30kg/50kgWooden Spool
Feature
high strength, high temperature, solvent resistance
Conductor |
Copper |
||||||
Dimension |
Thicknessa(b): 0.45 ~ 6 mm |
||||||
Thermal Class (℃) |
180 (Class H);200 (Class C);220 (Class C+); 240(Class HC) |
||||||
Insulation Thickness |
G1;G2;G3;G4 |
||||||
Certificate |
UL |
||||||
Standard |
IEC,NEMA,GB,JIS |
||||||
Packing |
30kg -150kg Poly-wooden spool(250*400/250*500/250*600/250*730) |
||||||
Appication |
transformer;motor;generator;modern instrument; welding machine and so on |
||||||
Application
* Enamelled wire is used in many electrical products, usually for the purpose to generate electrical fields such as in transformers and motors. Special examples are voice coils made from selfbonding wire or enamelled aluminum wire for instance or injection valves made of enamelled brass wire.
Company Profile
PACKING & SHIPPING
30kg-150kg ply-wood spool (250*400/250*500/250*600/250*730)
Note : lf you need different packing ,
please coordinate with the sales de-partment
Q:How about your company’s annual production capacity?
A:Our Company’s annual production is about 8,000 tons.
Q: What’s your company ‘s product scope?
A: We have many kinds of products ,such as enameled aluminum wire, enameled cooper wire, paper covered magnet wire, fiber glass covered magnet wire and other aluminum/cooper magnet wire products.
Q:What’s the temperature-resist grade of your enameled aluminum wire?
A: We produce the thermal class of enameled aluminum wire from 130 to 220 Centigrade.
Q:What is specifications of enameled aluminum wire your company can produce?
A: flat enameled aluminum wire: a:0.8-8.00mm; b: 2.0-22mm
Q:Can you offer Round Enameled wire with PEW, C200?
A: Yes, for favorable offer, There is one problem need confirm again, PEW is for Class 155 or 180, not Class 200.
Q: Could you provide the free samples?
A: Yes, We could provide the free sampels within 0.5kg. You only need undertake the express charnges.
Q: What’s the price of your enameled aluminum wire?
A: Please sent an email to our office@cnlpzz.com or call whatsapp/mobile 0086-18103865695, our salesman will reply you as soon as possible.
