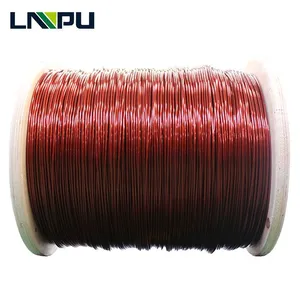

As Per Norm: IEC 60317-23, Max Temp 180, Grade : 1, 0.071mm Enamelled Round Copper Wire
US$ 18.00
500 - 999 Kilograms
US$ 15.80
≥1000 Kilograms
Key Specifications
Get Latest Price
Type:
enameled wire
Insulation Material:
enamel
Conductor Material:
Copper
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Thickness 0.4mm and Width 2mm for a Small Electromagnet Flat Rectangular Copper Magnet WireUS$ 15.80 - 18.00MOQ: 500 Kilograms -
3.6mm X 1.2mm Rectangular Copper Wire Enamelled Rectangular Copper WireUS$ 15.80 - 18.00MOQ: 500 Kilograms
-
4.75 Mm, BS 6811S Section 3.2, IEC 182-1, Class H 180 Enamel Coating Copper Winding Wire for TransformerUS$ 15.65 - 18.00MOQ: 500 Kilograms
-
Temperature Class: 155 Diameter: 0.04mm Packing: Spool PT-4 Color: Natural Enameled Round Copper WiresUS$ 11.65 - 13.00MOQ: 500 Kilograms
-
0.90 mm L2-double Varnished Standard: IEC317-8 or IEC317-13 Insulation: Polyesterimide Varnish Copper WireUS$ 15.65 - 18.00MOQ: 500 Kilograms
Conductor Material
Copper
Conductor Type
Solid
Diameter
customized
Rated Voltage
varies by wire specifications
Model Number
0.071mm Enamelled Round Copper Wire
Brand Name
LP Industry
Place of Origin
Henan, China
Shape
Round
Single Wire Size
customized
Working Temperature
customized
Product Name
Enamelled Round Copper Wire
Diameter Available
0.016-7mm
Insulation
Single or Double Covered
Thermal Class (℃)
180,200, 220, 240
Standard
IEC NEMA GB JIS
MOQ
500kg
Sample
Available
Packing
PT-4~PT-200 or ply-wood spool
Wire Gauge
5-53 awg
Products Description
Conductor |
Copper |
||||||
Dimension |
Thickness(a): 0.3 ~ 10.0 mm; width：1.0-22mm |
||||||
Thermal Class (℃) |
120(Class E);180 (Class H);200 (Class C);220 (Class C+); 240(Class HC) |
||||||
Insulation thickness |
G1;G2;G3;G4 |
||||||
Certificate |
UL |
||||||
Standard |
IEC,NEMA,GB,JIS |
||||||
Packing |
30kg-150kg ply-wood spool(250*400/250*500/250*600) |
||||||
Appication |
Transformer; motor;generator; modern instrument; welding machine and so on |
||||||
Enameled copper wire is one of the main types of winding wire, which is composed of a conductor and an insulating layer. After the bare wire is softened by annealing, it is painted and baked many times. The enameled wire is divided into flat type, round type and square type, used for long-term refrigeration equipment and chemically corroded electrical equipment, dry-type transformers, oil-immersed transformers, epoxy cast transformers, iron separators, electromagnets and other electromechanical equipment
The enameled copper wire is made of copper conductor and insulation materials, the insulation materials mainly include UEW, PEW and AIW, the temperature class 130℃, 155℃, 180℃, 200℃, 220℃ and 240℃. The color is natural and beautiful.

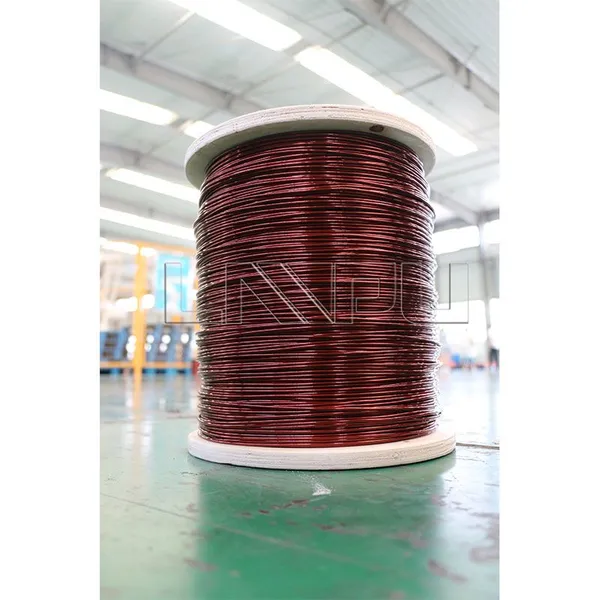

Details Images
Types of enameled wire
1. Acetal enameled wire with two thermal grades of 105 and 120, used in the windings of oil-immersed transformers and oil-filled motors.
2. For polyester and modified polyester enameled wires, the thermal class of ordinary polyester enameled wire is 130, and the thermal class of enameled wire after modification is 155.
3. Polyurethane enameled wire; thermal grade is 130, 155, 180, 200. It is widely used in electronic appliances, precision instruments, telecommunications, and meters.
4. Polyesterimine/polyamide composite enameled wire, thermal class 180, widely used in windings of motors, electrical appliances, meters, power tools, and dry-type power transformers that require high heat resistance.
5. Polyesterimide/polyamideimide composite layer enameled wire is a heat-resistant enameled wire widely used at home and abroad. Its thermal class is 200. It is widely used in refrigerator compressors, air-conditioning compressors, electric tools, explosion-proof motors and motors and electrical appliances used under high temperature, high cold, radiation resistance, and overload conditions.
Product packaging
PACKING & SHIPPING
30kg-150kg ply-wood spool (250*400/250*500/250*600/250*730) Note : lf you need different packing , please coordinate with the sales de-partment
Company Profile
Founded in 1993, Zhengzhou LP Industry Co., Ltd locates in Yanling Economic Development Zone in Henan Province with total assets RMB410 millions. The company covers an area of 100,000.00m2 with building area reach 30,000 m2. It is a modernize enterprise with 20 year professional manufacturing history. From the very beginning till now, the company devotes to research and manufacture enameled copper magnet wire and aluminum winding magnet wire.
All the products adopts IEC, GB, JIS, NEMA standard, and are widely used in the manufacture of motor, transformer, power, electric welding, instrument and meter, household appliances, refrigeration compressor, deflecting coil, special motor, high-frequency transformer and electronic, electrical products.
Manufacturing Technique
01 Stretching and squeezing aluminum conductor into require diameters, roundd or flat, by enameled wire machine
02 Making in requiring size
03 Cool down
04 Suitable aluminum wire conductor is painted by insulation materials
05 Forced air cooling improves the quality of enameled wire. Use a blower to cool the wire in countercurrent through the air duct and cooler. Note that the air source must be used after purification to avoid blowing impurities and dust on the surface of the enameled wire, sticking to the paint film, and causing surface problems.
06 The purpose of receiving and arranging the wire is to continuously, tightly and evenly wind the enameled wire onto the spool
Application
Application
* Microwave transformers;
* Windings with light weight, high conductivity, good heat resistance; Winding used for high frequency signal transmission
* Magnetic wire used in High Frequency transformer, common transformer, inductance coils, electromotors, household electromotors and micro-motors;
* Enamelled wire used in small-motor rotor winding .etc.
* Magnet wires used in monitor deflection coil;
* Magnet wires used in degaussing coil;
* Other special magnet wire.
Exhibition
FAQ
Q:How about your company’s annual production capacity?
A:Our Company’s annual production is about 8,000 tons.
Q: What’s your company ‘s product scope?
A: We have many kinds of products ,such as enameled aluminum wire, enameled cooper wire, paper covered magnet wire, fiber glass covered magnet wire and other aluminum/cooper magnet wire products.
Q:What’s the temperature-resist grade of your enameled aluminum wire?
A: We produce the thermal class of enameled aluminum wire from 130 to 220 Centigrade.
Q:What is specifications of enameled aluminum wire your company can produce?
A: flat enameled aluminum wire: a:0.8-8.00mm; b: 2.0-22mm
Q:Can you offer Round Enameled wire with PEW, C200?
A: Yes, for favorable offer, There is one problem need confirm again, PEW is for Class 155 or 180, not Class 200.
Q: Could you provide the free samples?
A: Yes, We could provide the free sampels within 0.5kg. You only need undertake the express charnges.
Q: What’s the price of your enameled aluminum wire?
A: Please sent an email to our office@cnlpzz.com or call whatsapp/mobile 0086-18103865695, our salesman will reply you as soon as possible.
