Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Factory Sale High Break Voltage Rectangular Magnet Wire Ultra-fine Self Adhesive Enameled Copper Wire

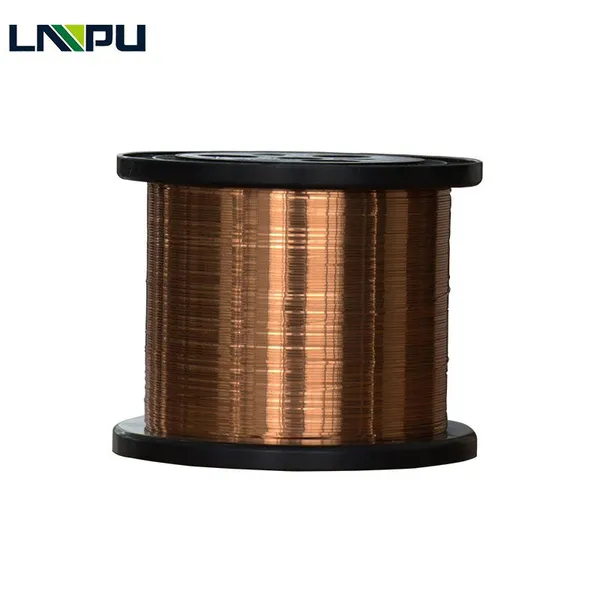

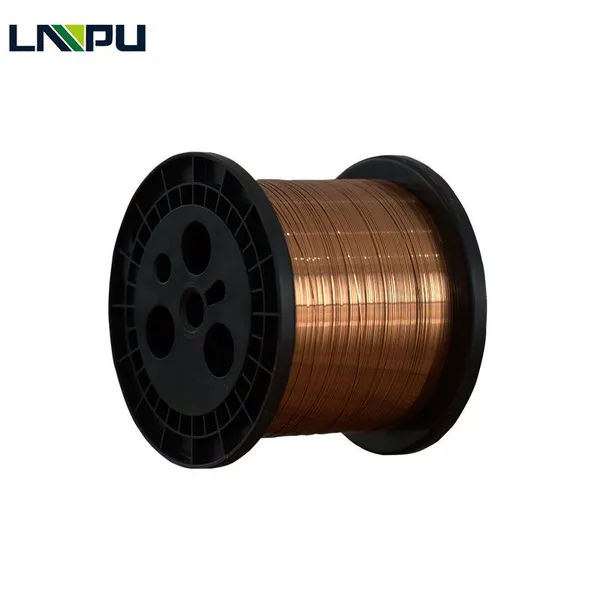

Factory Sale High Break Voltage Rectangular Magnet Wire Ultra-fine Self Adhesive Enameled Copper Wire
US$ 43 - 45
MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
Enameled
Conductor Material:
Copper
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Winding Wire Enamelled Copper Wire for Rewinding Motors Enameled Copper Wire for Winding of MotorsUS$ 15.80 - 16.50MOQ: 500 Kilograms -
Good Quality Awg42 Uew Enameled Square Copper Magnet Winding Wire for TransformerUS$ 16.00 - 16.50MOQ: 500 Kilograms
-
Heat Resistance Polyester-imide Enameled Copper Wire for Motors EIW/180 Winding Copper Wire 0.08mmUS$ 15.80 - 16.50MOQ: 500 Kilograms
-
Enameled Copper Magnet Wire for Motor Fan Copper Winding Wire Voice Coil 16 18 20 22 24 26 AWG Gauge ManufacturerUS$ 15.00 - 16.50MOQ: 500 Kilograms
-
Heat Resistance Enamelled Square Copper Wire High Quality Enamelled Copper Winding WireUS$ 15.56 - 16.50MOQ: 500 Kilograms
Type
Insulated
Insulation Material
Enameled
Conductor Material
Copper
Conductor Type
Solid
Diameter
customized
Rated Voltage
220 V
Model Number
Enameled Copper Wire
Brand Name
LP
Place of Origin
Henan, China
Shape
Flat
Single Wire Size
customized
Working Temperature
customized
Product name
Motor Copper Tinned Enameled Wire
Standard
IEC, NEMA,GB
Thermal Class
130-220C
Delivery time
10days-30days
size
a:0.1-0.6;b:0.2-6.0mm
Other name
Ultra fine rectangular enameled copper wire
Product characteristics
Excellent heat shock, adherence and flexibility
Insulation
Polyesterimide Overcoated with Polyamide-Imide
Conductor |
Copper |
||||||
Dimension |
Thickness(a): 0.1 ~ 0.6 mm; width：0.2-6.0mm |
||||||
Thermal Class (℃) |
180 (Class H);200 (Class C);220 (Class C+); 240(Class HC) |
||||||
Features |
Solderable and self-bonding |
||||||
Standard |
IEC,NEMA,GB,JIS |
||||||
Packing |
PT-4/PT-10 Plastic spool; 5kg -150kg Poly-wooden spool |
||||||
Appication |
High temperature voltage devices, instrumentation and various types of electronic components winding |
||||||
Application
* Enamelled wire is used in many electrical products, usually for the purpose to generate electrical fields such as in transformers and motors. Special examples are voice coils made from selfbonding wire or enamelled aluminum wire for instance or injection valves made of enamelled brass wire.
Company Profile
PACKING & SHIPPING
30kg-150kg ply-wood spool (250*400/250*500/250*600/250*730)
Note : lf you need different packing ,
please coordinate with the sales de-partment
