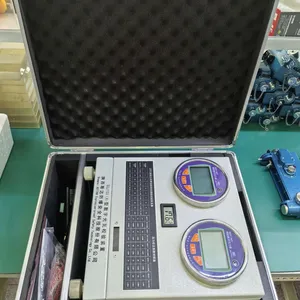

Help CenterDC Battery Powered SGJ100(A) Optical Interference Methane Detector Calibration Instrument Field Calibrating Equipment
Product Spotlights
Related Products
-
Corrosion Resistant SGJ100(A) Digital Calibration Device Mine Gas Detector Basic Error Calibration TesterNegotiableMOQ: 1 Piece -
Stable Pressure Regulation SGJ100(A) Digital Calibrator Optical Interference Methane Detector Mining Safety Testing DeviceNegotiableMOQ: 1 Piece
-
Dual Range 0-7kPa 0-60kPa Digital Calibrator For Optical Interference Gas Methane Detector SGJ100(A)NegotiableMOQ: 1 Piece
-
Anti Electromagnetic Interference SGJ100(A) Optical Interference Methane Detector Digital Calibration DeviceNegotiableMOQ: 1 Piece
-
Impact Vibration Resistant SGJ100(A) Digital Calibrator For Coal Mine Optical Interference Methane DetectorNegotiableMOQ: 1 Piece

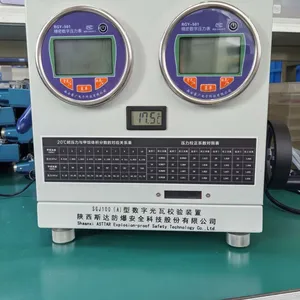

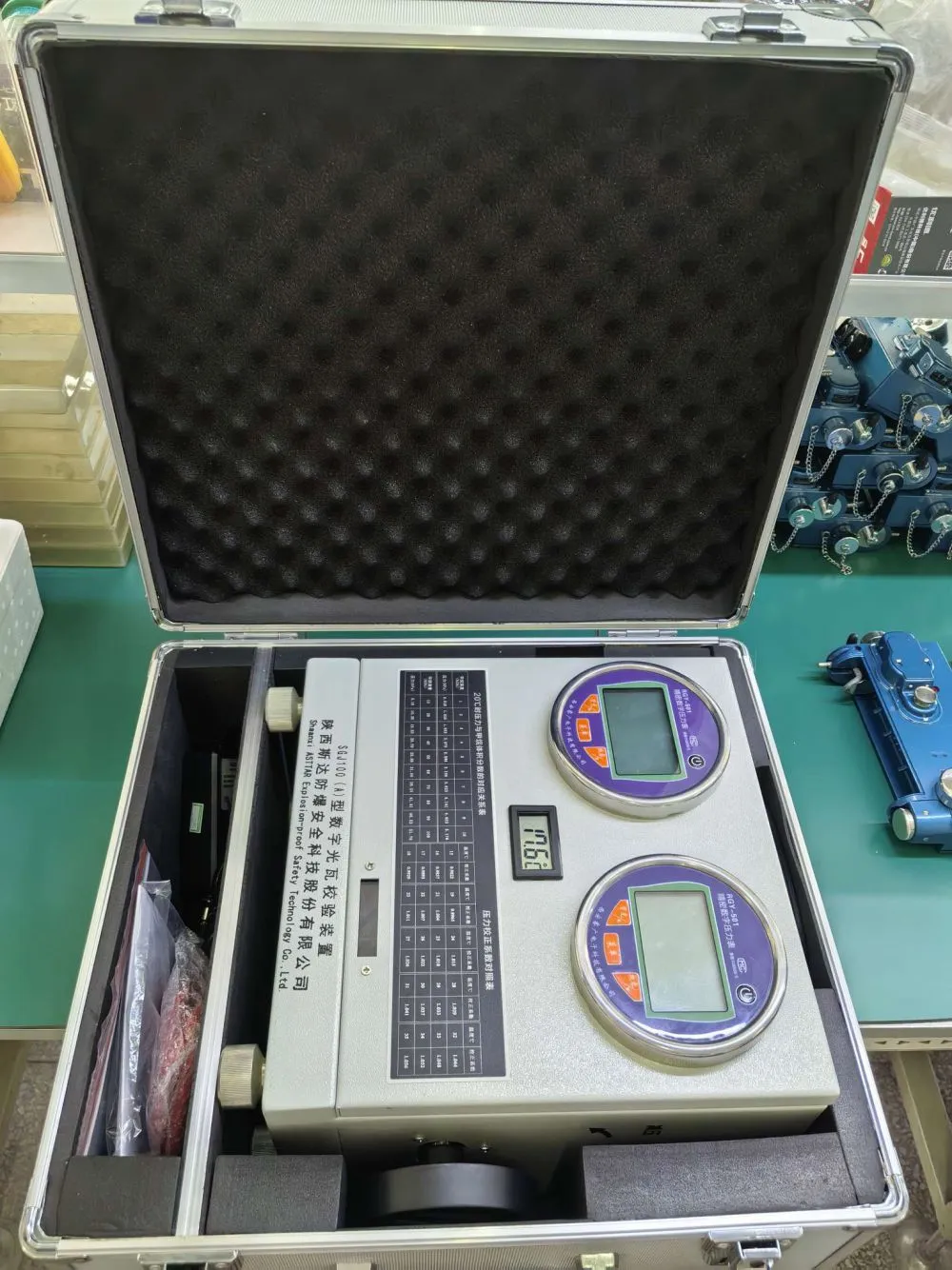

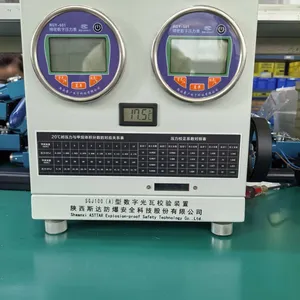

SGJ100(A) Digital Calibration Device for Optical Interference Methane Detector

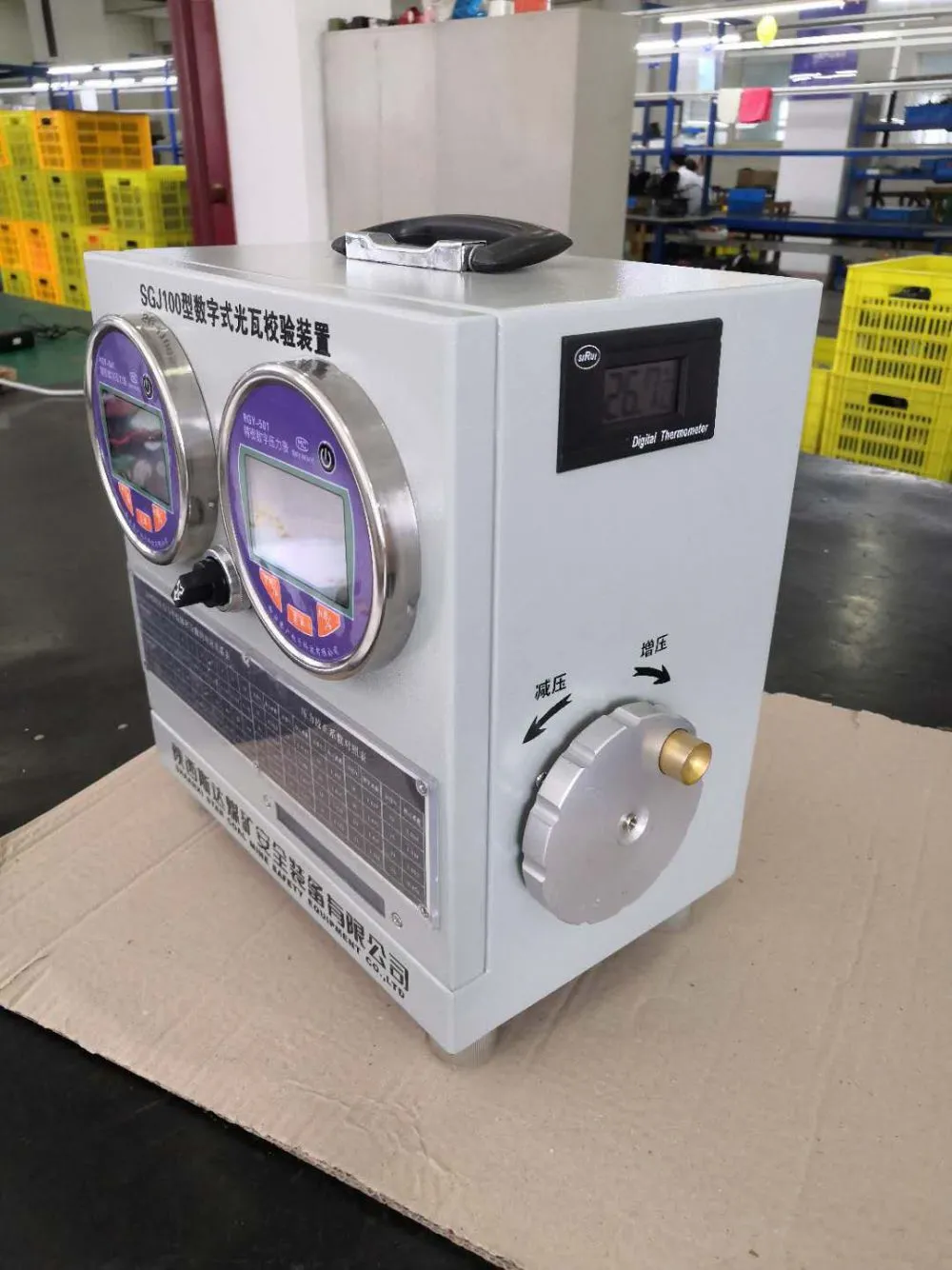

SGJ100(A) digital calibration device for optical interference methane detector (hereinafter referred to as calibration device) adopts rotary piston pressure pump and precision digital pressure gauge, which has the characteristics of stable pressure regulation and high test accuracy. It has upper limit alarm function, the display is clear and intuitive, the operation is convenient and simple; it has the advantages of high precision, corrosion resistance, impact resistance, vibration resistance, anti-electromagnetic and radio frequency interference technology, and high stability.
The calibration device is mainly used to calibrate the basic error and gas tightness of the optical interference methane detector with measuring range (0-10) % CH4 and (0-100) % CH4, and also to provide the standard pressure source for various micro-pressure (0-60) kPa measuring instruments.
Item |
Technical parameters |
Measurement range |
When the pressure change-over switch is set to the "7kp" position, the pressure range is: (0-7) kPa, (0-10)% CH4 When the pressure change-over switch is set to the "60kp" position, the pressure range is: (0-60) kPa, (0-100)% CH4 |
Measurement accuracy |
When the pressure range is (0-7) kPa, the maximum allowable error is not more than ±8Pa When the pressure range is (0-60) kPa, the maximum allowable error is not more than ±60Pa |
Dimensions |
363×195×320mm |
Weight |
7.6kg |
Supply voltage |
DC9V (for digital pressure gauge), 1.5V-AA battery (for digital thermometer) |
Service environment |
Ambient temperature: (15-35)℃, humidity: |
