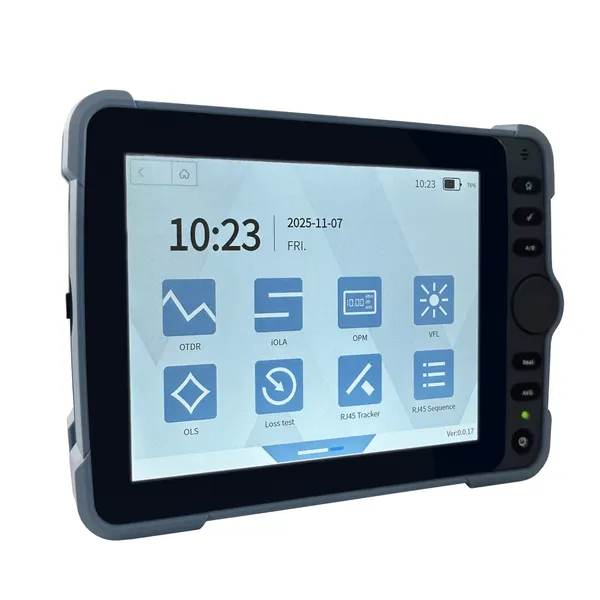

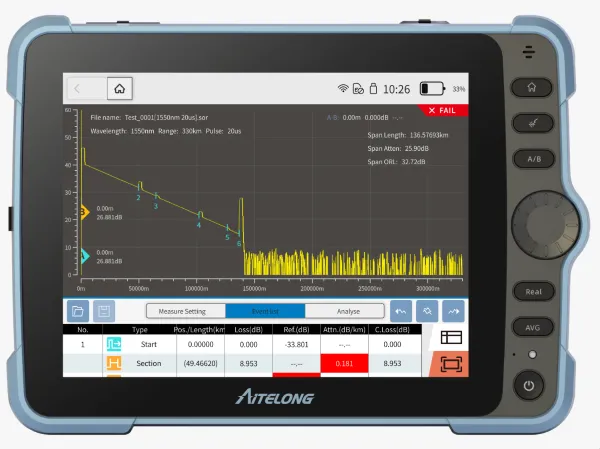

8 inch large colorful TFT touch screen
Support testing for SM/MM/SM+MM
PON network online test
0.6m event dead zone and 3m attenuation dead zone
Dynamic range max. up to 49dB
Integrate OTDR/ VFL/OPM/LS/Event map/Loss test/RJ45search/RJ45Sequence/Fiber end inspector/Bluetooth/WIFI/
Camera/Beidou+GPS /Level & temp. meter etc.
Support iOLM (Intelligent optical link monitor) (Optional)
Related Products
-
Communication Under Ground Cable Fault LocatorNegotiableMOQ: 1 Piece -
Aitelong SAT-17K Handheld Optical Fusion Splicer for FttxNegotiableMOQ: 1 Set
-
8\" Touch Screen OTDR Manufacturer FTTH OTDRNegotiableMOQ: 1 Set
-
Battery Conductance TesterUS$ 1600.00 - 1800.00MOQ: 1 Piece
-
AITELONG Battery Conductance TesterNegotiableMOQ: 1 Unit
Specification
| Model | Wavelength | Dynamic range |
| SAT-18F01 | 1310/1550nm | 49/47dB |
| SAT-18F02 | 1310/1550nm | 46/44dB |
| SAT-18F03 | 1310/1550nm | 41/39dB |
| SAT-18F04 | 850/1300/1310/1550nm | 23/32/40/38dB |
| SAT-18F05 | 1310/1550/1625nm | 41/39/39dB |
| SAT-18F06 | 1310/1550/1650nm | 41/39/39dB |
| SAT-18F07 | 1310/1490/1550nm | 41/39/39dB |
| SAT-18F08 | 850/1300nm | 23/32dB |
| SAT-18F09 | 1310/1550/1625nm | 45/43/41dB |
Mark: 1625nm/1650nm with filter for PON
General Specification
| Screen | 8 inch TFT touch screen, 1024*768 |
Port |
HDMI output:1; USB:3(type A*2, type C*1); TF card slot:1; Nano SIM card slot:1; 3.5mm earphone:1; Ethernet:1(10/100/10000 BASE-T) |
Storage |
Inner:8G; Outer: USB/TF card. Support data format: write: sor/pdf/png/csv, read: sor/png/csv |
Camera |
200w, autofocus |
Size and Weight |
235(H) x 170(W) x 55(D)mm; 1.3kg |
Working Environment |
Temperature: Operating: -10°C to 50°C; Storage: -20°C to 70°C Relative Humidity: 0% to 95% (non-condensing) |
Battery |
Rechargeable Li-Lon 8000mAh battery; Working time: 6 hours; Standby time: 10 hours, Charging time |
Technical Specification
Model |
18F01 |
18F02 |
18F03 |
18F04 |
18F05 |
Wavelength(nm) |
1310/1550nm |
1310/1550nm |
1310/1550nm |
850/1300/ 1310/1550nm |
1310/1550/ 1625nm |
Dynamic Range |
49/47dB |
46/44dB |
41/39dB |
23/32/40/38dB |
41/39/39dB |
Event Dead Zone |
Dynamic range>40dB: 0.6m; Dynamic range |
||||
Attenuation Dead Zone |
Dynamic range>40dB: 3m; Dynamic range |
||||
Pulse Width |
SM:3ns~20µs; MM850:5ns~1000ns; MM1300:5ns~5000ns |
||||
Distance Range |
0.1/0.5/1.25/2.5/5/10/20/40/60/80/100/150/200/330 km |
||||
Max Sampling Points |
256000 |
||||
Linearity |
±0.05 dB/dB |
||||
IOR |
1.000000 to 2.00000 |
||||
Distance Uncertainty |
±(0.75+0.005%×distance + sampling resolution) m |
||||
Measurement Time |
5s to 180s, Real time |
||||
VFL |
Wavelength :650±20nm; Output Power:>10mw; Operation mode: CW, 2Hz flash |
||||
|
Power Meter
|
Wavelength: 800 to 1700 nm; Measurement range: -50~+30dBm Calibrated wavelength:850, 980,1270,1300, 1310, 1490, 1550, 1577,1625,1650 nm |
||||
Light Source |
Wavelength: Same with OTDR; Output power: >-5dBm; Operation mode: CW, 270Hz, 1KHz, 2kHz,1KHz+flash, 2kHz+flash |
||||
Network Wire Sequence Collation |
Suitable for network wire: UTP/UTP; Port: RJ45. Testing range:600m |
||||
Audio network wire search function |
Mode: digital, analog; Frequency:455kHz; testing range: 600m |
||||
