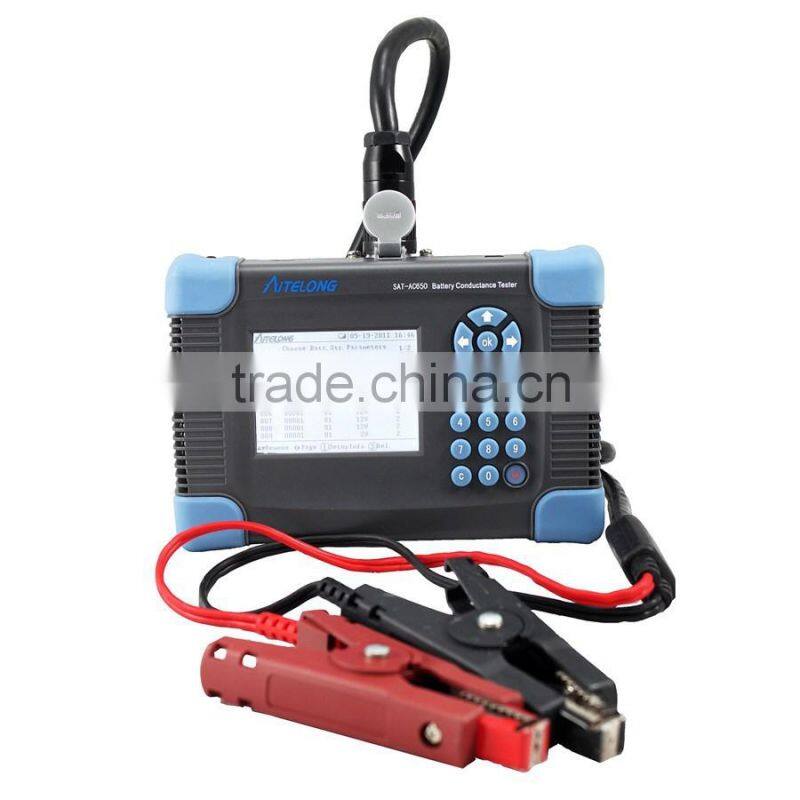

SAT-AC650 Battery Conductance Tester
Fuction
1.Test the battery voltage and conductance online.
2.Battery conductance and voltage out of range alarm.
3.All the battery parameters are maked by group No. to make the user manage the data expediently.
4.PC software analyze the battery to carry out tracking "historical analysis"of battery system.
Technical Parameter
Model |
SAT-AC650 |
Conductance Test Range |
100S-19990S |
Voltage Test Range |
0.000-20.000V Conductance & Voltage 20.000-25.000V Voltage Only |
Measurement Precision |
Conductance:±0.5%rdg ±6dgt Voltage:±0.2%rdg ±6dgt |
Power Supply |
10.8V,2000mAh,Rechargeable Lithium Battery |
Watt Consumption |
Work for 8 hours Continuously |
Storage Capacity |
2G Micro SD |
Display |
320x240 Matrix dot LCD |
Size |
210x140x60 mm |
Weight |
1.2kg |
Working Temperature |
-5℃--+60℃ |
Humidity |
90%RH |
