Qingdao Conqinphi Environmental Technology Group Co., Ltd., a professional manufacturer founded in 2015 with a 10,000-30,000 m² factory and over 200 employees, introduces our Food-Grade Plate Heat Exchanger Featuring 316L Stainless Steel, 2.0mm Flange, 304 Stainless Steel Frame. This heat exchanger is designed specifically for the food and beverage industry, where hygiene, durability, and efficiency are paramount. Manufactured with high-quality 316L stainless steel plates and a robust 304 stainless steel frame, our unit ensures superior corrosion resistance, easy cleaning, and long service life, meeting the strictest food safety standards.
The 2.0mm thick flange provides enhanced sealing and structural integrity, preventing leakage even under high-pressure conditions. With a compact design and high heat transfer efficiency, this plate heat exchanger helps reduce energy consumption and operational costs while maintaining precise temperature control for your products. Whether you are processing milk, juice, beer, sauces, or other liquid foods, our exchanger delivers consistent performance and minimal downtime.
Key Features & Technical Specifications
- Food-Grade 316L Stainless Steel Plates: Excellent resistance to pitting and crevice corrosion, ideal for acidic or chloride-containing food products.
- 304 Stainless Steel Frame: Robust and easy to clean, designed for frequent washdowns in sanitary environments.
- 2.0mm Thick Flange: Provides reliable sealing and prevents gasket extrusion, accommodating higher working pressures.
- Removable Plate Pack: Allows for easy inspection, maintenance, and capacity expansion.
- High Heat Transfer Coefficient: Achieved through optimized corrugation patterns, reducing surface area requirements and product hold-up volume.
- Customizable Plate Count: Available in various sizes (from 5 to 200+ plates) to match your specific flow rate and thermal duty.
- Gasket Materials: NBR, EPDM, or Viton® available for different temperature and chemical compatibility needs.
- Certifications: Manufactured under HACCP, ISO9001, ISO14000, and other quality management systems to ensure product safety and reliability.
| Parameter | Value |
|---|---|
| Plate Material | 316L Stainless Steel (AISI 316L) |
| Frame Material | 304 Stainless Steel |
| Flange Thickness | 2.0 mm |
| Max Working Pressure | 1.0 MPa (customizable higher) |
| Max Working Temperature | 150°C (with EPDM gaskets) |
| Connection Size | DN50 / 2" (other sizes available) |
| Gasket Options | NBR, EPDM, Viton® |
| Applicable Standards | 3-A, HACCP, ISO9001 |
Our plate heat exchangers are engineered to deliver maximum uptime. The 316L plates resist scaling and fouling, reducing cleaning intervals. The 304 frame is designed with adjustable tightening bolts to maintain optimal gasket compression throughout the unit's life. Additionally, the modular design allows for future capacity upgrades by simply adding plates – no need to replace the entire unit. This flexibility translates to lower total cost of ownership and a higher return on investment.
For the food industry, hygiene is non-negotiable. Our heat exchanger features smooth surfaces and crevice-free construction, making it compliant with 3-A sanitary standards. The 2.0mm flange ensures a leak-proof connection, preventing cross-contamination. All wetted parts are made of 316L, which withstands aggressive cleaning chemicals and high-temperature sterilization cycles (CIP/SIP).
Qingdao Conqinphi Environmental Technology Group Co., Ltd. has been a trusted manufacturer since 2015, with an annual export value of US$10–50 million and a factory spanning 10,000–30,000 m². Our products are exported to North America, South America, Europe, Southeast Asia, Africa, and Oceania, serving clients in dairy, beverage, brewing, and pharmaceutical industries. With over 200 skilled employees and certifications including HACCP, ISO9001, ISO14000, and OHSAS18001, we guarantee strict quality control from raw material procurement to final assembly.

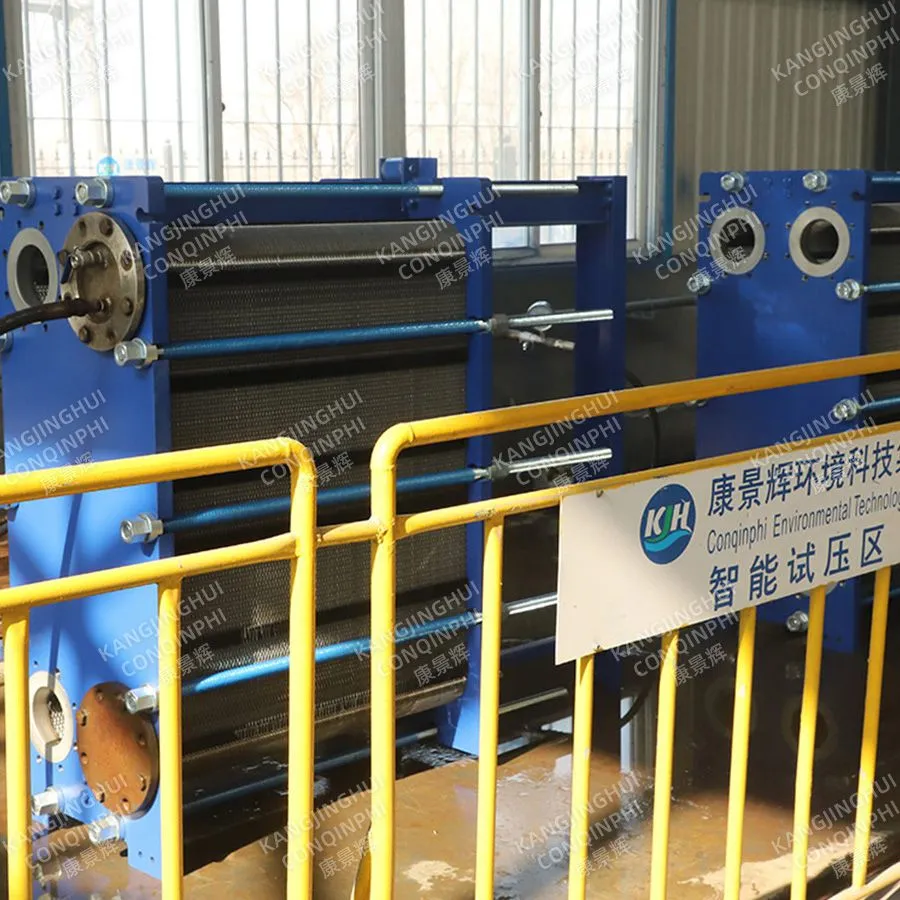

We offer comprehensive after-sales support, including technical documentation, spare parts, and on-site troubleshooting. Our heat exchangers undergo rigorous pressure testing and performance verification before shipment. Choose our Food-Grade Plate Heat Exchanger for a reliable, cost-effective, and sanitary solution that meets the highest industry standards. Contact us today for a customized quotation, or visit our factory in Qingdao, Shandong, China to see the quality firsthand.
Frequently Asked Questions
-
Q: What is the difference between 316L and 304 stainless steel in this heat exchanger?
A: The plates are made of 316L stainless steel, which offers superior corrosion resistance against chlorides and acidic foods (e.g., fruit juices, sauces). The frame is 304 SS, providing sufficient strength and cost efficiency for the structural support. -
Q: Can this heat exchanger be used for high-pressure applications?
A: Yes, the standard design pressure is up to 1.0 MPa, but we can customize the unit for higher pressures (up to 1.6 MPa) by using thicker plates or stronger frames. Please provide your specific requirements. -
Q: How do I clean the heat exchanger?
A: The unit supports Clean-in-Place (CIP) and Steam-in-Place (SIP) procedures. The 316L plates are resistant to common cleaning chemicals. We recommend following the gasket manufacturer's guidelines for temperature and chemical limits. -
Q: What gasket options are available for food contact?
A: We offer NBR (general food service), EPDM (good for hot water and steam), and Viton® (high temperature and chemical resistance). All are FDA-compliant and suitable for food-grade applications. -
Q: What is the lead time for this product?
A: Standard lead time is 25–35 working days, depending on the quantity and customization. For urgent orders, expedited production can be arranged. -
Q: Do you provide spare parts and after-sales support?
A: Yes, we stock gaskets, plates, and frame components. Our technical team can assist with installation, troubleshooting, and maintenance. We also offer a 12-month warranty against manufacturing defects. -
Q: Can I add more plates later to increase capacity?
A: Absolutely. The frame is designed with extra tightening bolts to accommodate additional plates. You can order a plate pack expansion kit at any time, making this a modular and scalable solution. -
Q: Is this product certified for dairy and beverage processing?
A: Yes, our heat exchangers are manufactured under HACCP and ISO9001 quality systems, and they meet the 3-A sanitary standards for dairy equipment. We can also provide material certificates (MTC) upon request.
