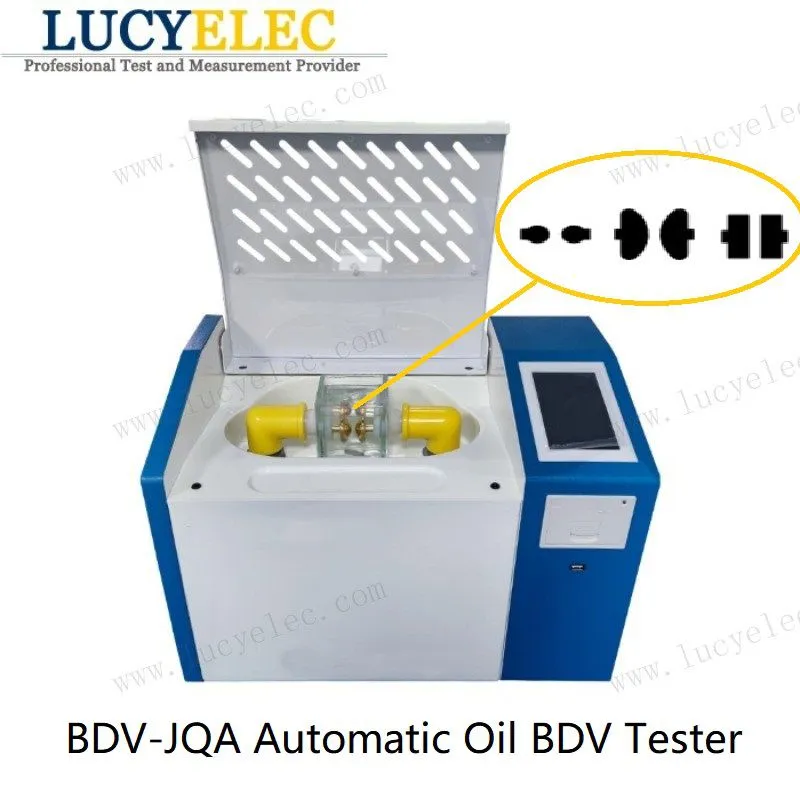

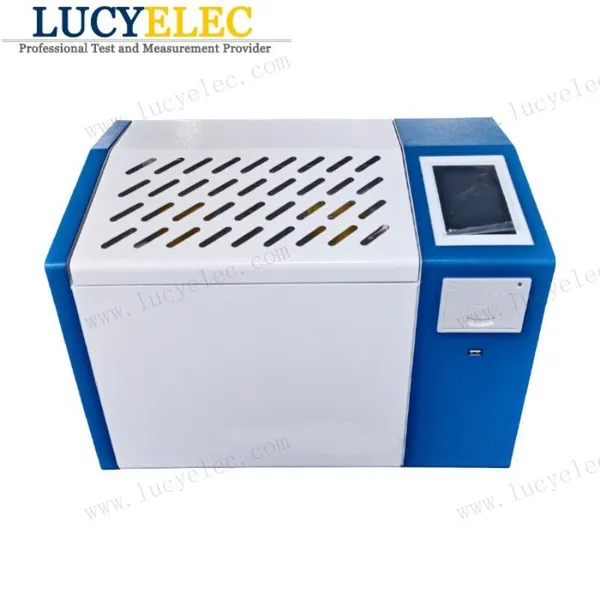

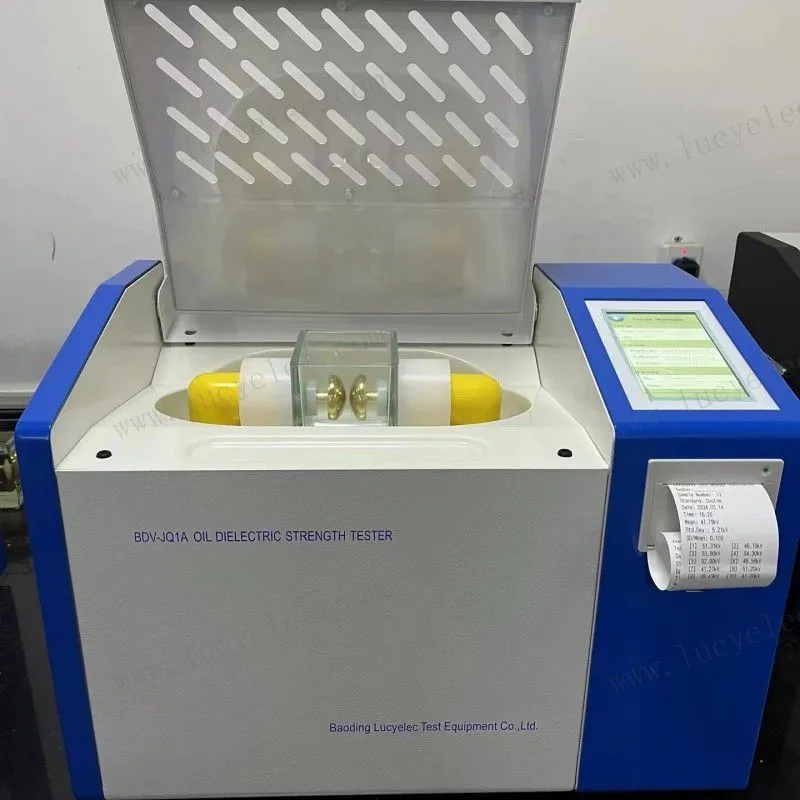

Lucyelec Automatic Oil Analysis Instrument Transformer Oil Dielectric Strength Tester

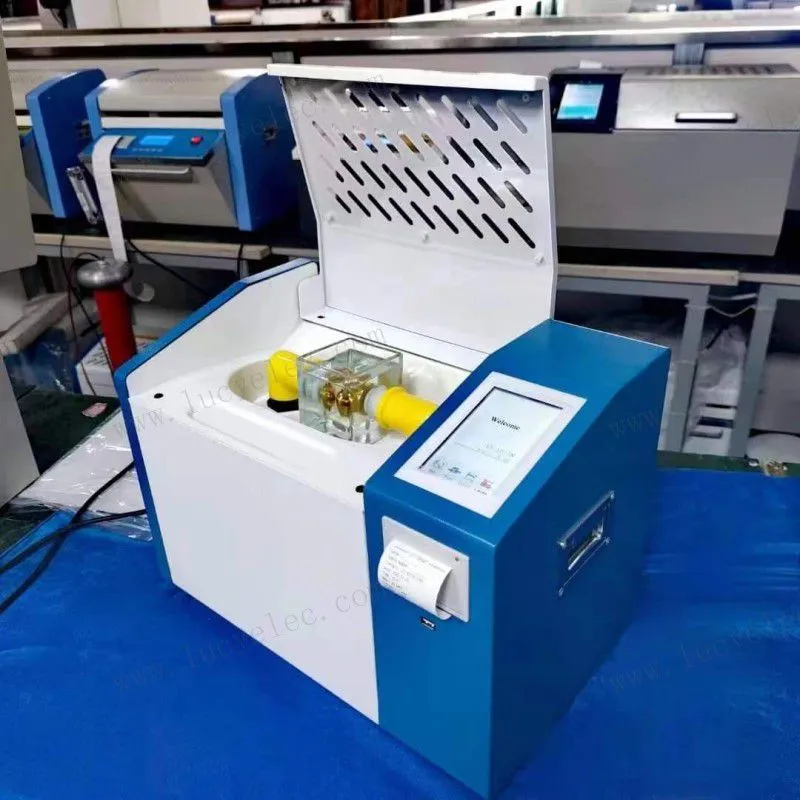

Model: BDV-JQ1A
Please send email to us for more details:
URL: Email: info@lucyelec.com WhatsAPP: +86-15194785871
General Descriptions:
Automatic insulating oil dielectric strength tester also named breakdown voltage(BDV) tester for transformer oil, which indicates its ability to resist electrical stress in oil filled electrical equipment. Lucyelec Test Equipment Co., Ltd. can supply you single cup, three cups, and six cups Oil BDV tester with stable performance and favorable price. Please feel free to ask if any inquiry.
Features and Advantages:

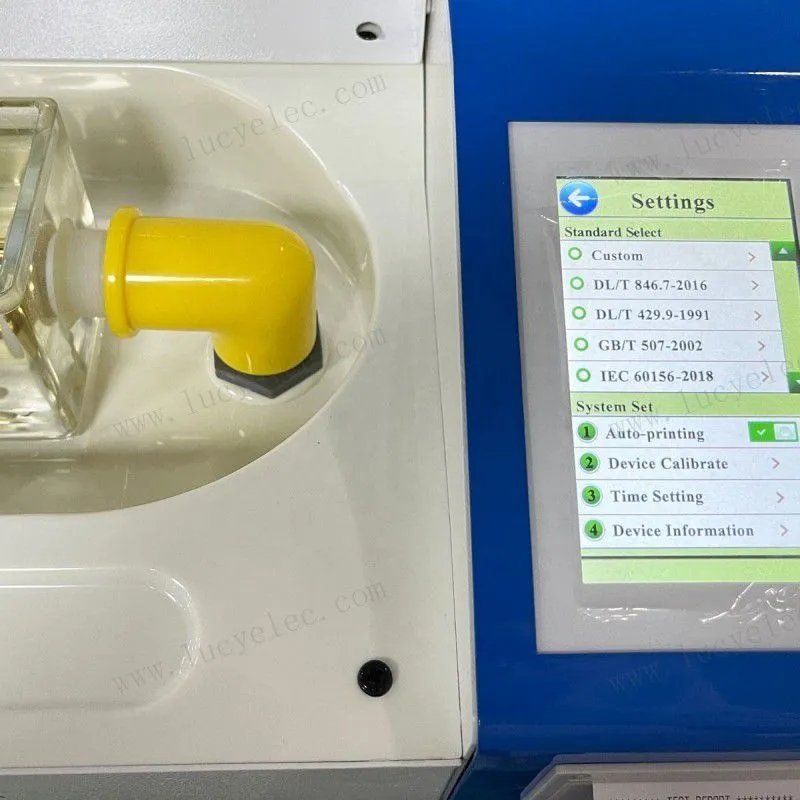

1. Conform to multiple standards (IEC60156, ASTM D1816, ASTM D877), and user-defined programs.
2. Capable of measuring the dielectric breakdown voltage up to 80KV.
3. Easy operation and user-friendly. Can display environmental temperature, humidity, and real time display.
4. Fully auto-measuring, data storage, and print.
5. Automatic data storage if power failure.
6. With over-voltage, over-current, H.V. limit switch alarm functions, to make sure the operator more safer.
7. Strong anti-jamming function.
8. Unique design in circuit and softwaremake sure the stable and reliable performance.
9. USB interface or wireless transmission function is optional.
Technical Specification:
| Output voltage | 0~80 kV |
| Electrode Type | Spherical, semi-spherical, disk Standard 2.5mm (adjustable); |
| Step-up transformer capacity | 1.5 kVA |
| Rising rate of voltage | 0.5~5.0 kV/s (0.5 kV/s, 1kV/s, 2.0kV/s, 3.0kV/s, 5.0kV/s) |
| Measurement accuracy | 1% |
| Supply voltage | AC 110/220 V ±10% |
| Power frequency | 50/60 Hz ±2% |
| Power | 200w |
| Working temperature | 0~40ºC |
| Working humidity |
Product names:Transformer oil bdv tester, BDV Tester Kit, portable BDV measuring kit, BDV of transformer oil, transformer oil breakdown voltage tester, Automatic transformer oil dielectric stength tester, breakdown voltage of transformer oil, Dielectric Strength of Transformer Oil, transformer dielectric oil test equipment, insulation oil tester, oil pressure tester, oil dielectric strength tester, insulation oil dielectric strength tester, insulation oil pressure tester, automatic insulation oil tester, automatic oil tester, portable oil pressure test device
Detailed Photos
About US:
Baoding Lucyelec Test Equipment Co., Ltd. Here in short referred as "Lucyelec". Lucyelec is the professional enterprise who is engaged in providing and export of diversified transformer oil and electrical test instruments since 2015. It's the reliable partner and provider of China test and measurement instruments in Baoding China.
Our main products are Petroleum/oil analysis instrument, Transformer test sets, Switchgear analyzer, Ultrasonic Anemometer, and other electrical test tools and equipment. Lucyelec products are widely used in electric power, wind solar new energy, petroleum chemical, railway, construction, and many more fields.
Striving for diversified test and measurement instruments, professional technical support and experienced export services. We also accept OEM/ODM orders and outsourcing services. Lucyelec sincerely look forward to your cooperation. Let's Win-win together.
FAQ
Q1:Is Lucyelec a trading company or a manufacturer?
We are an integrated trade and manufacturing company with our own brand Lucyelec. Technical support factory price and good after sales service. Sincerely looking forward to your cooperation.
Q2: How do you guarantee the quality?
A: One year's guarantee from date on B/L. Normally. If it's quality problem, we promise to return goods or funds.
Q3: Is OEM available?
A: Yes, all goods can be custom made by your requirements, including packing, LOGO print, etc.
Q4: Can we buy 1 pc for sample testing?
A: Yes, we are glad to send 1pc for quality testing if we have stock of the model you required.
Q5: How to deliver the goods for trial order or small order?
A : For small order, we prefer to choose international express, such as DHL, TNT, EMS which are faster and more convenient for customer. Also, we cooperate with an express agent that can give us a big discount for express fee which is much lower than that quoted by official. For the goods with detachable battery, the express fee can be lower down if the goods is sent out without battery.
Q6: What kind of payment your company accept?
A : T/T , Western Union,MoneyGram, Paypal, ect.
Q7: If we have not found the model from website, what should we do?
A: Please email us with description and picture of the product, we research and develop new model every month, and some of them maybe have not been uploaded in website immediately. But If this is a new products for us, we can develop it for you after get all detailed information about your product.
Q8: What kind of service you can supply?
Our Services:
100% quality guarantee
Quick delivery time
OEM service
Promptly reply you within 24 hours
We treat clients as friend. Giving best service and sincere greetings
If you have any inquiry about quotation or cooperation, please contact Lucyelec. Our sales representative will reply you within 24 hours. Thank you for your interest in our products.
