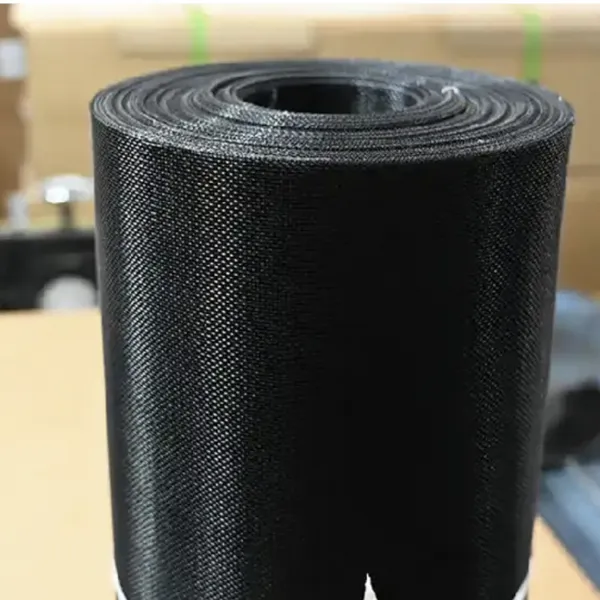

Help CenterAir Filter Element With Epoxy Resin Support Mesh, 0.5mm Wire Diameter, 10mm Mesh Opening, Polyester Fiber Media
Product Spotlights
Related Products
-
Woven Epoxy Resin Support Mesh Inside Air Filter Element, 0.8mm Wire Spacing, 200°C Operating TemperatureNegotiableMOQ: 1 Square Meter -
Epoxy Resin Support Mesh Inside Air Filter Element for HVAC Systems, Dust Collection, Industrial VentilationNegotiableMOQ: 1 Square Meter
-
12-Month Warranty Epoxy Resin Support Mesh Inside Air Filter Element, Mill Test Report, Standard CompliantNegotiableMOQ: 1 Square Meter
-
20x20x1 Inch Epoxy Resin Support Mesh Inside Air Filter Element, 300 Micron Mesh Size, Anti-Corrosion CoatingNegotiableMOQ: 1 Square Meter
-
0.5mm Thickness Epoxy Resin Support Mesh Inside Air Filter Element, 304 Stainless Steel Frame, 300°C Heat ResistanceNegotiableMOQ: 1 Square Meter
Anping County Boli Hardware Wiremesh Products Factory, established in 1998, is a professional manufacturer specializing in wire mesh and filtration products. With an annual export value of US$5 Million – US$10 Million and a global presence across North America, South America, Europe, Asia, Africa, and Oceania, we are proud to introduce our Air Filter Element with Epoxy Resin Support Mesh. This product combines a 0.5mm wire diameter, 10mm mesh opening, and polyester fiber media to deliver efficient air filtration with durable mechanical support. Designed for industrial and commercial applications, it offers a reliable solution for dust control, HVAC systems, and process air purification.
Our air filter element is built with epoxy resin coated support mesh that provides excellent corrosion resistance, rigidity, and long service life. The polyester fiber media ensures high dust holding capacity and low airflow resistance. The 0.5mm wire diameter creates a strong yet flexible structure, while the 10mm mesh opening allows for optimal airflow distribution. This product is customizable in size, shape, and filtration grade to meet specific customer requirements.
Key Features & Technical Specifications:
- Epoxy Resin Support Mesh: Coated on wire mesh for enhanced anti-corrosion and anti-rust properties, suitable for humid or harsh environments.
- Wire Diameter: 0.5mm – Provides a balance between strength and flexibility, ensuring the mesh retains its shape under pressure.

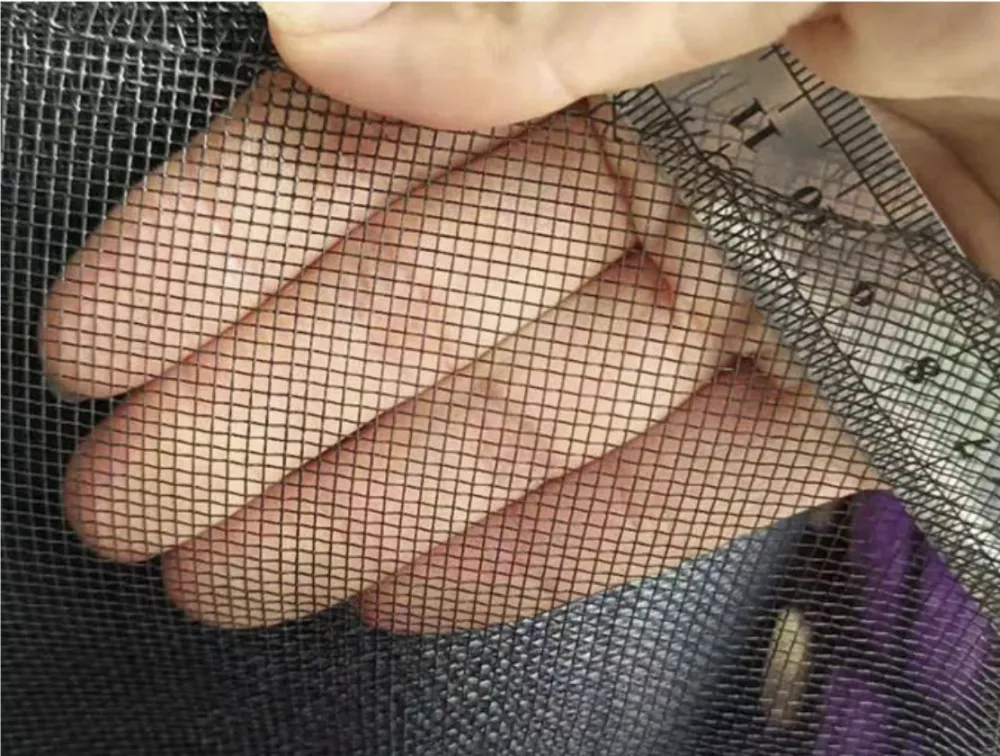

- Mesh Opening: 10mm – Large enough to minimize airflow resistance, yet small enough to support the filter media evenly.
- Polyester Fiber Media: Non-woven, high-loft polyester fibers with high dust holding capacity and low pressure drop. Available in various filtration classes (G3, G4, M5, F5 as per EN 779 or ISO 16890).
- Operating Temperature: Up to 120°C (continuous), with optional higher temperature resistance materials available upon request.
- Customizable Dimensions: Can be cut to any size, shape, or thickness to fit existing filter housings or equipment.
- Easy Installation: Lightweight construction with reinforced edges for secure mounting.
Technical Parameters (Typical Panel Type):
| Parameter | Value |
| Filter Media | Polyester Fiber (non-woven) |
| Support Mesh Material | Galvanized wire with epoxy resin coating |
| Wire Diameter | 0.5 mm |
| Mesh Opening | 10 mm |
| Filtration Efficiency | G3 – F5 (EN 779) / ISO Coarse 60% – ePM10 50% (ISO 16890) |
| Initial Pressure Drop | 25 – 50 Pa (at rated airflow) |
| Max Operating Temperature | 120°C (standard); optional up to 200°C |
| Relative Humidity | Up to 95% RH |
| Standard Size | 592x592x25 mm (or custom) |
Why Choose Our Air Filter Element?
- Durable Construction: Epoxy resin coated mesh prevents rust and extends filter life, even in high-moisture environments.
- High Dust Holding Capacity: Polyester fiber media can capture large amounts of particulate without clogging quickly, reducing replacement frequency.
- Low Airflow Resistance: The 10mm mesh opening and optimized media density minimize pressure drop, saving energy on fan systems.
- Customizable Solutions: We offer tailored sizes, thicknesses, and filtration grades to match your specific equipment and performance needs.
- Cost-Effective: Competitive pricing without compromising quality, backed by over 20 years of manufacturing experience.
This air filter element is ideal for HVAC systems, paint booths, clean rooms, industrial ventilation, compressor intakes, and general air purification units. Its robust support mesh prevents media collapse, ensuring consistent filtration performance over time.
As a trusted manufacturer from Hengshui, Hebei, China, we have a proven track record of exporting to over 50 countries with annual export value exceeding US$5 Million. Our factory is equipped with advanced production lines and strict quality control processes. We have served clients in North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East for decades. Our products are shipped from Tianjin, Qingdao, Shanghai, and Foshan ports, ensuring timely delivery worldwide.
We are committed to providing high-quality, reliable filtration components at competitive prices. Whether you need standard sizes or custom designs, our team is ready to assist. Contact us today for a quote or technical consultation. Experience the durability and performance of our Air Filter Element with Epoxy Resin Support Mesh.
Frequently Asked Questions (FAQ)
-
Q: What are the available filtration grades for this filter element?
A: This filter element is available in grades from G3 to F5 according to EN 779, or ISO Coarse 60% to ePM10 50% according to ISO 16890. Custom grades can be produced upon request. -
Q: Can the filter element be used in high-temperature applications?
A: The standard version can operate up to 120°C continuously. For higher temperatures up to 200°C, we can use special media or coatings. Please consult our sales team. -
Q: How is the epoxy resin support mesh different from standard galvanized mesh?
A: The epoxy resin coating provides superior corrosion resistance, chemical resistance, and a smooth surface that prevents fiber shedding. It also improves the mesh's structural integrity. -
Q: Is the filter element washable or disposable?
A: This product is designed as a disposable filter element. However, some lower-grade versions can be vacuum-cleaned for limited reuse. For optimal performance, replacement is recommended. -
Q: What is the typical lead time for custom-sized filters?
A: For custom sizes, lead time is approximately 15–25 days depending on quantity and complexity. Standard sizes may ship within 7–10 days. -
Q: Do you provide samples for testing?
A: Yes, we offer free samples for quality evaluation. The buyer is responsible for shipping costs. Please contact us to arrange. -
Q: Can the filter element be used in food processing or pharmaceutical environments?
A: The polyester fiber media is non-toxic and generally safe for food and pharmaceutical applications. However, we recommend confirming specific regulatory requirements with our team to ensure compliance. -
Q: What is the minimum order quantity (MOQ)?
A: Our MOQ is typically 100 pieces for standard sizes. For custom products, MOQ may vary. Please inquire for details.
