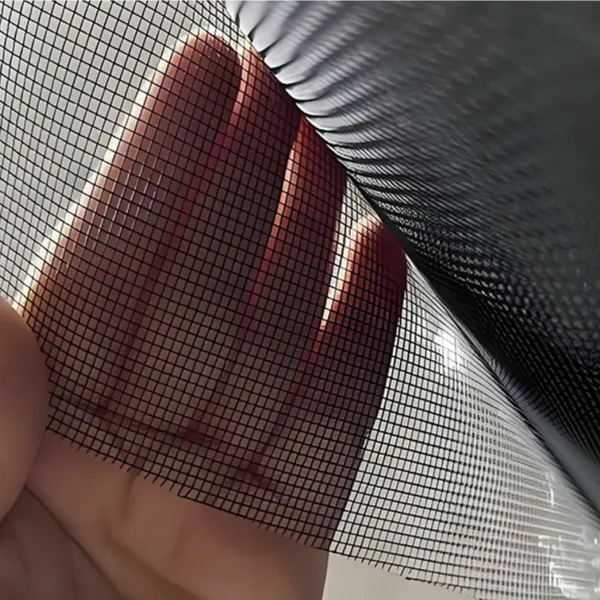

Help Center0.5mm Thick Epoxy Resin Support Mesh Inside Air Filter Element, 50μm Aperture, 200°C Heat Resistant
Product Spotlights
Related Products
-
Epoxy Resin Support Mesh Inside Air Filter Element for HVAC Systems, Dust Collection, and Industrial Air PurificationNegotiableMOQ: 1 Square Meter -
Epoxy Resin Support Mesh Inside Air Filter Element Used in Pharmaceutical Cleanrooms, Food Processing, and Automotive Cabin FiltersNegotiableMOQ: 1 Square Meter
-
Customizable 0.3mm to 1.0mm Epoxy Resin Support Mesh Inside Air Filter Element, 60-100 Mesh CountNegotiableMOQ: 1 Square Meter
-
Epoxy Resin Support Mesh Inside Air Filter Element, 0.5mm Pitch, Corrosion Resistant, Lightweight DesignNegotiableMOQ: 1 Square Meter
-
High Tensile Strength 200N/cm² Epoxy Resin Support Mesh Inside Air Filter Element, 2mm ThickNegotiableMOQ: 1 Square Meter
As a leading manufacturer based in Hengshui, Hebei, China, Anping County Boli Hardware Wiremesh Products Factory has been dedicated to producing high-quality filtration solutions since 1998. Our 0.5mm Thick Epoxy Resin Support Mesh Inside Air Filter Element with 50μm Aperture and 200°C Heat Resistance is engineered to meet the demanding requirements of industrial air filtration systems. This product combines a durable epoxy resin-coated support mesh with precise aperture control, ensuring reliable performance in harsh environments. With an annual export value exceeding US$5 Million, our factory supplies to markets across North America, South America, Europe, Asia, and beyond, delivering consistent quality at competitive prices.
This air filter element features a robust 0.5mm thick epoxy resin support mesh that provides structural integrity while maintaining excellent airflow. The 50μm (micron) aperture ensures efficient capture of airborne particles without compromising pressure drop, making it ideal for applications requiring medium to high filtration efficiency. The unique epoxy resin coating not only enhances the mesh's mechanical strength but also offers superior heat resistance up to 200°C, allowing continuous operation in high-temperature environments such as engine intakes, industrial ovens, and HVAC systems. Below are the key technical specifications:
| Parameter | Value |
| Material | Stainless steel wire mesh with epoxy resin coating |
| Thickness | 0.5 mm (±0.05 mm) |
| Aperture | 50 μm (mesh count: approximately 300 mesh) |
| Heat Resistance | Up to 200°C (continuous) |
| Filtration Efficiency | ≥ 95% for particles ≥ 50 μm |
| Operating Pressure | Up to 5 bar (optional) |
| Available Shapes | Round, square, rectangular, custom |
Product Features & Benefits:
- Enhanced Durability: The epoxy resin layer protects the mesh from corrosion, abrasion, and chemical attack, extending service life even in aggressive environments.
- High Temperature Stability: Withstands continuous operating temperatures up to 200°C, making it suitable for use in drying ovens, exhaust systems, and near heat sources.
- Precise Filtration: The 50μm aperture ensures consistent particle removal, meeting strict air quality standards for industrial processes.
- Low Pressure Drop: Optimized mesh structure allows efficient airflow, reducing energy consumption in ventilation systems.
- Easy Installation: Can be supplied as flat sheets, cut-to-size panels, or pre-formed filter elements to fit existing equipment.
- Customizable Options: We offer various mesh sizes, frame materials (aluminum, stainless steel, plastic), and edge sealing to meet specific requirements.
Technical Details: The support mesh is made from high-quality stainless steel wire (typically 304 or 316 grade) woven into a precise pattern, then impregnated and coated with a thermosetting epoxy resin. This process creates a rigid yet flexible structure that maintains its shape under mechanical stress. The 0.5mm thickness provides excellent dimensional stability, while the 50μm aperture ensures effective filtration without clogging. The product is also resistant to moisture, mild acids, and alkalis, making it versatile for various industries including automotive, pharmaceuticals, food processing, and chemical manufacturing.
Quality Assurance: Every batch undergoes rigorous testing for aperture uniformity, thickness tolerance, and heat resistance. Our factory is equipped with advanced inspection instruments, and we have a dedicated quality control team to ensure compliance with international standards. We follow strict production procedures that have been refined over 25 years of experience.
Why Choose Anping Boli?
- Over 25 years of manufacturing expertise in wire mesh and filtration products.
- Annual export value of US$5–10 million, serving global markets with reliable delivery.
- Flexible shipping options from major Chinese ports: Tianjin, Qingdao, Shanghai, Foshan.
- Dedicated engineering support for custom designs and samples.
- Competitive pricing with consistent quality – we are a direct manufacturer, not a trading company.
Our factory has supplied air filter elements to clients in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and Western Europe. We understand the diverse needs of different markets and are committed to providing products that meet local regulatory requirements. Whether you need a standard size or a custom solution, we can deliver in a timely manner.
Frequently Asked Questions:
Q1: Can this filter element be used in food processing environments?
A1: Yes, the epoxy resin coating is non-toxic and inert once cured. However, we recommend confirming with our sales team if direct food contact is required, as we can offer FDA-compliant options upon request.
Q2: What is the maximum temperature for short-term exposure?
A2: The product can withstand brief spikes up to 220°C, but continuous operation above 200°C may reduce service life. For extreme high-temperature applications, we can recommend alternative materials.
Q3: Do you offer samples before bulk order?
A3: Absolutely. We provide free samples (within reasonable size) for evaluation, and you only pay for shipping. Contact us to request a sample of your desired specification.
Q4: How is the filter element cleaned or maintained?
A4: The epoxy resin surface is smooth and can be cleaned by reverse air blow, gentle vacuum, or washing with mild detergent. Avoid using abrasive tools that may damage the coating.
Q5: Can I get a custom size or shape?
A5: Yes, we offer custom fabrication. Please provide your drawing or dimensions, and we can produce filter elements in any shape – round, square, oval, or irregular.
Q6: What is the lead time for production?
A6: For standard sizes, lead time is 7–15 days after order confirmation. Custom orders may take 15–25 days, depending on complexity.
Q7: Is this product suitable for oil mist filtration?
A7: The epoxy resin coating provides good resistance to oils and greases. However, for heavy oil mist, we recommend a higher grade filter media. Please consult with our technical team for specific application advice.
Q8: What packaging do you use for export?
A8: We use sturdy plywood pallets or crates, with each filter element individually wrapped in protective film. Custom packaging is available upon request.
With our extensive experience, global reach, and commitment to quality, Anping County Boli Hardware Wiremesh Products Factory is your trusted partner for air filtration solutions. Contact us today to discuss your requirements or request a quote. We look forward to building a long-term cooperation with you.
