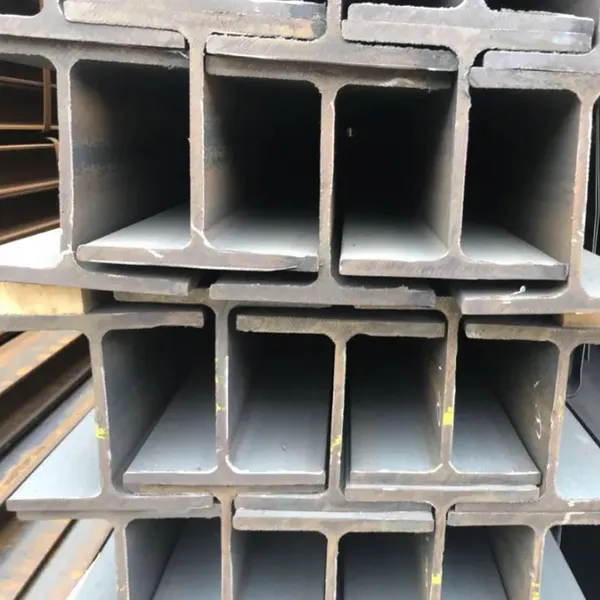

As a leading manufacturer from Hemaokang Steel (Shandong) Co., Ltd., we proudly present our H-Shaped Steel Beam 200x200x8x12mm Q345B Heavy Duty Hot Rolled. Established in 2025 with an annual export value exceeding US$50 million, our company is dedicated to supplying high-quality steel products to global markets. This H-beam is engineered for heavy-duty applications, offering superior strength, excellent weldability, and precise dimensional tolerance. Whether you are constructing high-rise buildings, industrial plants, or bridges, our H-beam provides the structural integrity you need.
Our hot-rolled H-shaped steel beam is manufactured under strict quality control, following the GB/T 11263-2017 standard (or equivalent international standards). The Q345B grade ensures a minimum yield strength of 345 MPa, making it ideal for load-bearing structures. Each beam undergoes rigorous inspection to guarantee consistent performance and long service life.
Key Features & Technical Specifications
- Material Grade: Q345B – low alloy high strength steel with excellent toughness and fatigue resistance.
- Dimensions: Height 200mm, Flange width 200mm, Web thickness 8mm, Flange thickness 12mm.
- Length Options: Standard lengths of 6m, 9m, 12m, or custom lengths upon request.
- Surface Finish: Black as rolled (mill scale), optional shot blasting, painting, or hot-dip galvanizing.
- Weldability: Excellent – suitable for welding without preheating in most applications.
- Load Capacity: High moment of inertia and section modulus, ideal for heavy loads and long spans.
- Certification: ISO9001:2015 certified quality management system.
| Parameter | Value |
|---|---|
| Section Height (h) | 200 mm |
| Flange Width (b) | 200 mm |
| Web Thickness (tw) | 8 mm |
| Flange Thickness (tf) | 12 mm |
| Yield Strength (min) | 345 MPa |
| Tensile Strength (min) | 470-630 MPa |
| Elongation (min) | 21% |
| Standard Length | 6m, 9m, 12m (customizable) |
Benefits for Your Projects
- Reduced Material Costs: The optimized section shape provides high strength-to-weight ratio, saving steel usage.
- Faster Construction: Pre-cut lengths and precise dimensions minimize on-site fabrication time.
- Enhanced Safety: Q345B steel offers excellent impact resistance and earthquake performance.
- Versatility: Suitable for columns, beams, trusses, and support structures in various environments.
- Eco-Friendly: 100% recyclable material, contributing to green building certifications.
Why Choose Hemaokang Steel?
Hemaokang Steel (Shandong) Co., Ltd. is a young but rapidly growing enterprise with a strong export network. Our team of 51-100 experienced professionals ensures that every order is handled with care. With an annual export value of US$50 million to US$100 million, we have successfully served customers across North America, South America, Europe, Asia, Africa, and Oceania. Our ISO9001 certification guarantees consistent quality from raw material sourcing to final delivery. We offer flexible packaging options (bundled, containerized, or break-bulk) and competitive pricing. Contact us today for a quote or technical consultation – we are ready to support your next project with reliable steel solutions.
Frequently Asked Questions (FAQ)
-
What is the minimum order quantity (MOQ) for this H-beam?
Our standard MOQ is 1 ton for stock sizes, but we can accommodate smaller quantities for sample orders. For custom lengths, please consult our sales team. -
Can you provide custom lengths?
Yes, we can cut beams to any length between 1m and 12m, with a tolerance of ±5mm. Longer lengths up to 18m are available for sea freight. -
What surface treatment options are available?
Standard is black (as rolled) with mill scale. We also offer shot blasting, red oxide primer painting, or hot-dip galvanizing (upon request with additional cost). -
Do you have third-party inspection certificates?
Yes, we can provide Mill Test Certificates (MTC) conforming to EN 10204 type 3.1. Additionally, we can arrange SGS, BV, or other third-party inspection at the buyer's cost. -
What is the delivery time?
For stock sizes, delivery is within 7-15 days after order confirmation. For customized orders, it may take 20-30 days depending on the volume. -
How do you pack the beams for export?
We use steel strapping and waterproof wrapping for sea freight. Beams are bundled securely to prevent damage during transit. Container loading or break-bulk is available. -
Is Q345B equivalent to ASTM A572 Gr.50?
Yes, Q345B is widely considered equivalent to ASTM A572 Grade 50 in terms of mechanical properties. However, chemical composition may differ slightly. We can provide a comparison chart upon request. -
Can you supply beams with a galvanized finish?
Yes, we can outsource hot-dip galvanizing to our partner facilities. The galvanizing process adds approximately 7-10 days to the lead time.
