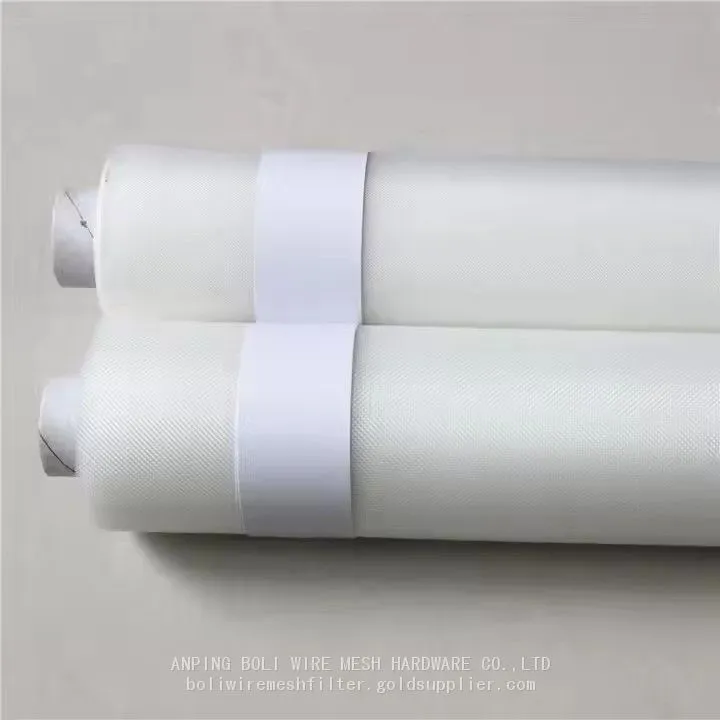

Since 1998, Anping County Boli Hardware Wiremesh Products Factory has been a trusted manufacturer of precision wire mesh and filtration products. Our Food Grade Nylon Mesh 100 Micron with plain weave and 0.5mm thickness is specifically engineered for demanding liquid filtration applications in food, beverage, pharmaceutical, and chemical industries. By combining high-quality nylon monofilament with strict manufacturing controls, we deliver a reliable, durable, and compliant mesh that meets the stringent requirements of modern processing environments.
- 100 Micron Precision Filtration – Captures particles down to 100 microns (approx. 150 mesh) while allowing high flow rates, ideal for filtering liquids like wine, juice, beer, edible oils, and syrups.
- Plain Weave Construction – Provides uniform openings and excellent dimensional stability, ensuring consistent filtration performance batch after batch.
- 0.5mm Thickness – Balances strength and flexibility; offers good resistance to pressure and abrasion without being too rigid.
- Food Grade Nylon Material – Compliant with FDA and EU food contact regulations (certificates available upon request), non-toxic, odorless, and resistant to corrosion and chemicals.
- Easy to Clean & Reusable – Smooth surface allows simple rinse or backwash; can be used repeatedly in many applications, reducing replacement costs.
- Custom Sizes Available – We can cut to specified widths, lengths, or even fabricate finished filter bags, discs, or sheets according to your drawings.
| Parameter | Value |
|---|---|
| Material | 100% Virgin Nylon (Polyamide 6 or 66) |
| Mesh Count | 100 micron (150 mesh per inch) |
| Weave Type | Plain Weave |
| Thickness | 0.5 mm ± 0.05 mm |
| Open Area | Approx. 35% – 40% |
| Tensile Strength | ≥ 80 N/cm (warp & weft) |
| Max Operating Temperature | 120°C (continuous); 150°C (short-term) |
| Color | White (natural), other colors available on request |
| Standard Width | 1.0m, 1.2m, 1.5m (customizable) |
| Packaging | Rolls, sheets, or cut pieces in poly bags |
Key Benefits for Your Business:
- Enhanced Product Quality – Remove fine impurities without compromising flavor or composition, ensuring consistent end-product clarity.
- Cost-Effective Solution – Reusable nylon mesh reduces consumable waste; long service life lowers overall filtration cost.
- Versatile Applications – Suitable for both gravity and pressure filtration systems, from small-scale laboratory setups to large industrial processes.
- Global Compliance – Manufactured in accordance with food safety standards; we can provide documentation for FDA, EU, or other regional requirements.
- Fast Lead Times – With annual export value of US$5-10 million and established supply chain, we offer timely delivery from Tianjin/Qingdao/Shanghai/Foshan ports.
Our factory in Hengshui, Hebei has been producing wire mesh products for over 25 years. We serve markets across North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. Our experienced team can customize this nylon mesh to your exact specifications – whether you need ultrasonic welding, edge sealing, or specific cut sizes. We invite you to contact us for samples, technical data sheets, or a quotation. Let Anping Boli be your reliable partner for high-quality filtration media.
Frequently Asked Questions
Q1: Is this nylon mesh safe for direct contact with food?
A: Yes, the material is food-grade virgin nylon that complies with FDA and EU food contact regulations. We can provide a compliance certificate upon request with your order.
Q2: Can this mesh be used for separating solids from liquids in a centrifuge?
A: Absolutely. The 0.5mm thickness and plain weave provide good mechanical strength. However, please confirm the pressure and temperature conditions with our technical team to ensure optimal performance.
Q3: What is the maximum temperature resistance?
A: Continuous use up to 120°C (248°F) and short-term peaks up to 150°C (302°F). For applications above these limits, consider alternative materials like polyester.
Q4: How do I clean and reuse the mesh?
A: Rinse with warm water and mild detergent, or use a backwash cycle. Avoid harsh chemicals. For stubborn residues, ultrasonic cleaning is recommended. Proper care can extend the mesh life significantly.
Q5: Can you provide cut-to-size pieces or finished filter bags?
A: Yes, we offer custom cutting, welding, and fabrication services. Please provide your dimensions and design, and we will produce according to your requirements.
Q6: What is the minimum order quantity (MOQ)?
A: For standard rolls, MOQ is 100 square meters. For custom sizes, please contact our sales team for a quote. We also accept sample orders for evaluation.
Q7: Is the mesh resistant to acids and alkalis?
A: Nylon has good resistance to dilute acids and alkalis, but strong oxidizing agents may cause degradation. For chemical compatibility, we recommend testing or consulting our technical data sheet.
