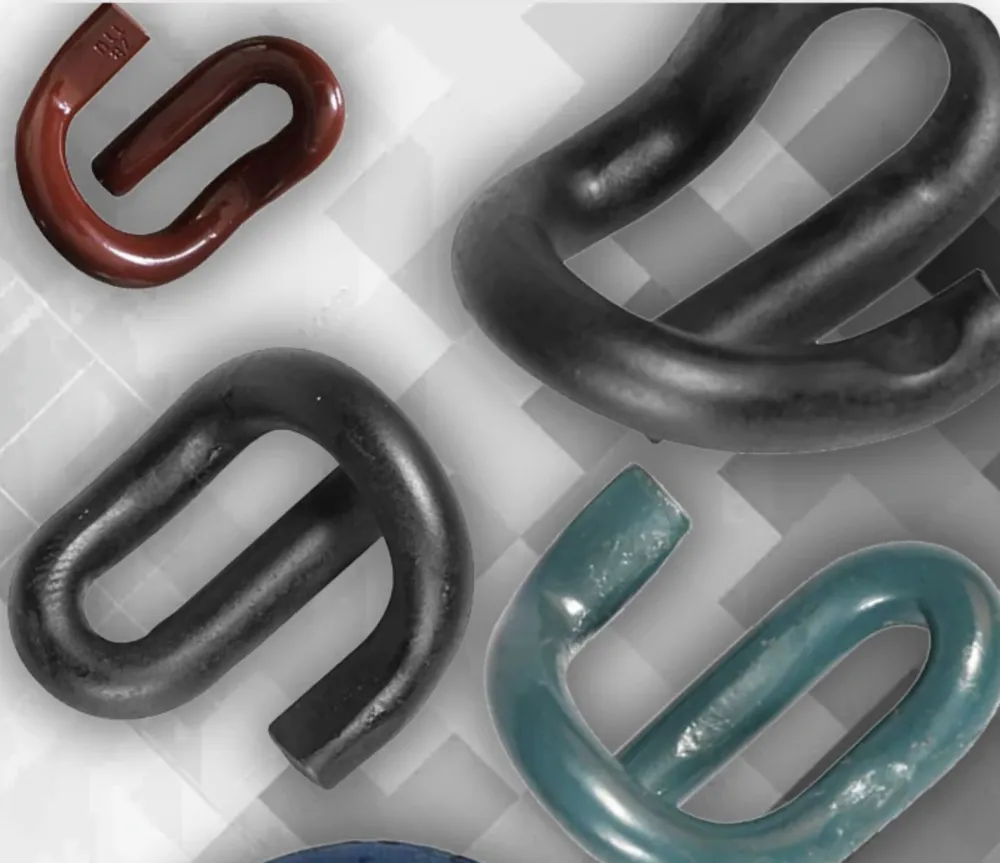

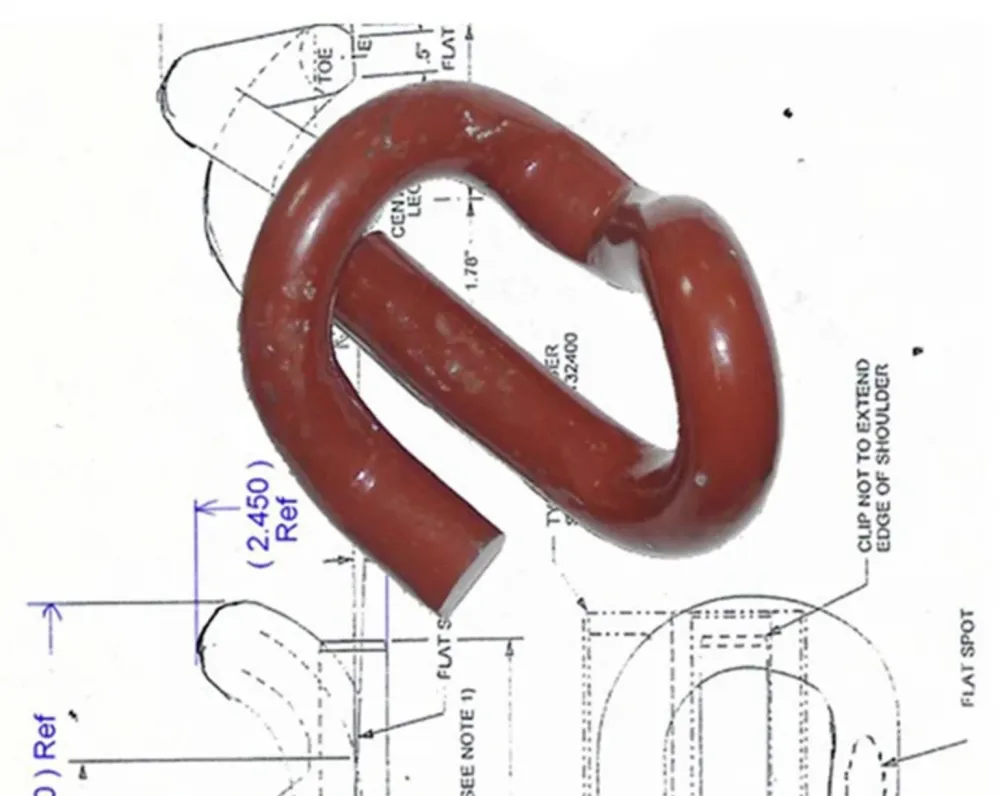

Shot Blasted E-type Elastic Rail Clip With Anti-corrosion Coating Finish
Product Spotlights
Premium E-type elastic rail clip treated with shot blasting for enhanced fatigue life and multi-layer anti-corrosion coating for superior rust protection. Made from high-grade spring steel, precise dimensions, reliable clamping force. Ideal for mainline, metro, and heavy-haul railways. Factory-direct from a 25-year experienced manufacturer with global export capability.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, E-type elastic rail clip
Material:
Spring steel (60Si2Mn / 55Si2Mn)
Surface Treatment:
Shot blasting + anti-corrosion coating
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Tensile Elastic Clip, 1200MPa, For Railway Sleepers, 18mm RodNegotiableMOQ: 1 Piece -
For Heavy Haul Railway Lines, Rail-to-Sleeper Elastic Clip, 60kg/m RailNegotiableMOQ: 1 Piece
-
Lifelong Technical Support, Elastic Rail Clip, Free Sample, Factory Direct PriceNegotiableMOQ: 1 Piece
-
M22 Threaded Rail-to-Sleeper Elastic Clip, 120mm Length, 10mm Wire DiameterNegotiableMOQ: 1 Piece
-
2-Year Warranty, Rail-to-Sleeper Elastic Clip, Mill Test Report Included, Custom LengthNegotiableMOQ: 1 Piece
Type
Other, E-type elastic rail clip
Material
Spring steel (60Si2Mn / 55Si2Mn)
Surface Treatment
Shot blasting + anti-corrosion coating
Applicable Rail
Standard railway rails (50kg/m, 60kg/m, etc.)
Hardness
HRC 38-46
Elastic Deflection
≥ 10 mm
Fatigue Life
≥ 3 million cycles (tested)
Coating Thickness
60-120 μm (customizable)
Packing
Plastic bags + woven bags / pallets / as required
As a leading manufacturer with over 25 years of expertise in railway hardware, Anping County Boli Hardware Wiremesh Products Factory proudly presents our Shot Blasted E-type Elastic Rail Clip with Anti-corrosion Coating Finish. This high-performance rail clip is engineered to deliver superior clamping force, extended service life, and outstanding resistance to harsh environmental conditions. Designed for global railway infrastructure, our E-type clip meets the rigorous demands of modern rail fastening systems, ensuring safety and reliability for mainline, metro, and heavy-haul tracks.
The combination of shot blasting and anti-corrosion coating provides a robust surface finish that dramatically improves fatigue strength and prevents rust. Each clip is manufactured from premium spring steel, heat-treated to achieve optimal hardness and elasticity. Whether you need standard specifications or customized dimensions, our production line is ready to deliver consistent quality batch after batch.
Key Features & Technical Specifications
- Material Excellence: Made from high-grade spring steel (60Si2Mn / 55Si2Mn) with precise chemical composition control, ensuring stable elasticity and long-term durability.
- Shot Blasting Process: Removes scale, burrs, and surface defects, while inducing compressive residual stress that enhances fatigue resistance up to 3 million cycles or more.
- Anti-corrosion Coating: Multi-layer coating system (zinc-rich primer + epoxy/polyurethane topcoat) provides excellent protection against salt spray, humidity, and UV exposure. Coating thickness can be customized from 60 to 120 μm.
- E-Type Design: Optimized geometry for easy installation and consistent clamping force. Compatible with standard railway clips, shoulders, and insulators.
- Hardness & Elasticity: Heat-treated to HRC 38-46, with elastic deflection ≥ 10 mm, ensuring reliable performance under dynamic loads.
- Applicable Rails: Suitable for 50kg/m, 60kg/m, UIC60, and other standard rail profiles. Custom sizes available upon request.
- Quality Control: 100% dimensional inspection, hardness test, and magnetic particle inspection for surface cracks. Samples available for testing.
- Packaging Options: Individually wrapped in oil paper, then packed in plastic bags and woven bags, or palletized for container loading. Export-standard packaging ensures safe transit.
Product Parameter Table
| Parameter | Value |
|---|---|
| Material Grade | 60Si2Mn / 55Si2Mn / EN 10089 |
| Hardness (HRC) | 38 – 46 |
| Elastic Deflection (mm) | ≥ 10 |
| Fatigue Life (cycles) | ≥ 3,000,000 |
| Coating Thickness (μm) | 60 – 120 (customizable) |
| Working Temperature (°C) | -40 to +80 |
| Weight per piece (approx.) | 0.5 – 0.8 kg (depending on size) |
| Packing | Plastic bags + woven bags / pallets |
Benefits for Your Projects
- Longer Track Life: The shot blasting process eliminates surface micro-cracks, reducing the risk of premature failure. Together with the anti-corrosion coating, the clip can withstand years of exposure to moisture, de-icing salts, and industrial pollution.
- Consistent Clamping Force: Precise manufacturing tolerances ensure each clip delivers the same clamping force, improving track gauge stability and reducing maintenance costs.
- Easy Installation: E-type clips are designed for quick manual or mechanical installation, compatible with existing rail fastening systems.
- Cost-Effective: Our factory-direct pricing and yearly production capacity of over 10 million pieces allow us to offer competitive prices without compromising quality.
- Global Compatibility: Tested to meet international standards (AREMA, BS, EN, TB/T) – certifications available upon request.
Since our establishment in 1998, Anping County Boli Hardware Wiremesh Products Factory has grown into a trusted exporter with annual export value exceeding US$5 million. We serve markets across North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. Our main ports of shipment include Tianjin, Qingdao, Shanghai, and Foshan, ensuring efficient logistics worldwide.
We take pride in our in-house quality control laboratory and experienced engineering team. Every batch of rail clips is tested for hardness, elasticity, and coating adhesion. We provide free samples for evaluation prior to mass production, and we welcome OEM/ODM orders with customized dimensions, packaging, or branding.
Choose Boli for rail clips that deliver performance, durability, and peace of mind. Contact us today for a quotation or to discuss your specific requirements.
Frequently Asked Questions
-
Q: What is the difference between your E-type clip and standard clips?
A: Our E-type clip undergoes shot blasting and an advanced anti-corrosion coating, which significantly improves fatigue resistance and corrosion protection compared to ordinary clips. It also meets stricter dimensional tolerances for consistent performance. -
Q: Can I get samples before placing a bulk order?
A: Yes, we provide free samples for quality evaluation. You only need to cover the shipping cost. Samples are usually ready within 5–7 working days. -
Q: Are these clips compatible with 60kg/m rail (UIC60)?
A: Absolutely. Our E-type clips are available in multiple sizes to fit 50kg/m, 60kg/m, UIC60, and other standard rail profiles. Please specify your rail type when ordering. -
Q: What is the lead time for a typical order?
A: For standard sizes, production takes 15–20 days after deposit confirmation. For customized orders, lead time is 25–30 days depending on quantity and complexity. -
Q: Do you have any certifications or quality reports?
A: We can provide material test reports, hardness test reports, and coating thickness reports. Our products are manufactured in compliance with industry standards. Specific certifications can be discussed based on your requirements. -
Q: How do you ensure the anti-corrosion coating is durable?
A: We use a multi-layer coating system with strict process control. The coating is tested for salt spray resistance (≥ 500 hours), adhesion (cross-cut test), and impact resistance. We also offer optional hot-dip galvanized finishing for extreme environments. -
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is 5000 pieces for standard sizes. For custom sizes, please contact us to discuss feasibility. -
Q: Can you provide installation guidance or technical support?
A: Yes, our technical team can provide installation drawings, torque specifications, and on-site support if needed. We also have a comprehensive user manual available.
