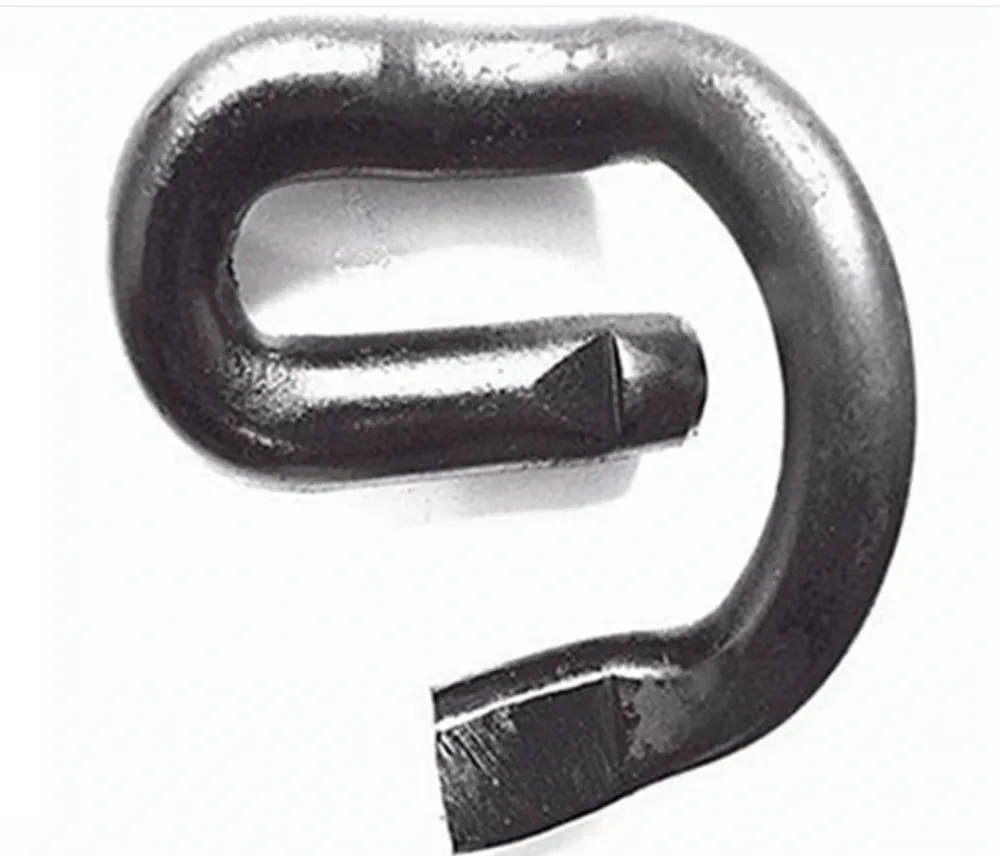

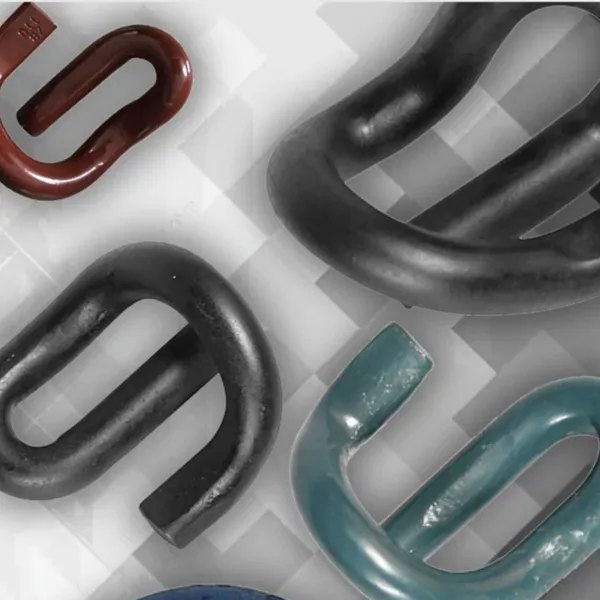

Welcome to Anping County Boli Hardware Wiremesh Products Factory – a trusted manufacturer since 1998 with an annual export value of US$5–10 million, serving markets across North America, South America, Europe, Asia, Africa, and Oceania. Our Hot Dip Galvanized Elastic Rail Clip with a precise 15mm thickness is designed to meet the rigorous requirements of EN 13146-1, ensuring superior performance in railway fastening systems. This clip combines decades of manufacturing expertise with advanced hot-dip galvanizing technology to deliver exceptional durability, corrosion resistance, and reliable clamping force for mainline, high-speed, and heavy-haul railways.
Below are the key features and technical specifications of our product, presented in a structured format for easy reference.
Product Features & Benefits
- Robust Elastic Design: The clip’s spring steel construction ensures consistent clamping force, maintaining rail gauge stability under dynamic loads.
- 15mm Thickness for Heavy-Duty Applications: The extra thickness provides higher fatigue resistance and longer service life compared to standard clips.
- Hot Dip Galvanized Surface: A thick zinc coating (typically 85–100 μm) offers outstanding protection against rust, even in humid, coastal, or tunnel environments.
- EN 13146-1 Compliance: Tested for static and dynamic performance, the clip meets European standards for rail fastening systems, ensuring compatibility with international railway projects.
- Easy Installation & Maintenance: The clip’s shape allows quick fitting and removal with standard tools, reducing labor costs and downtime.

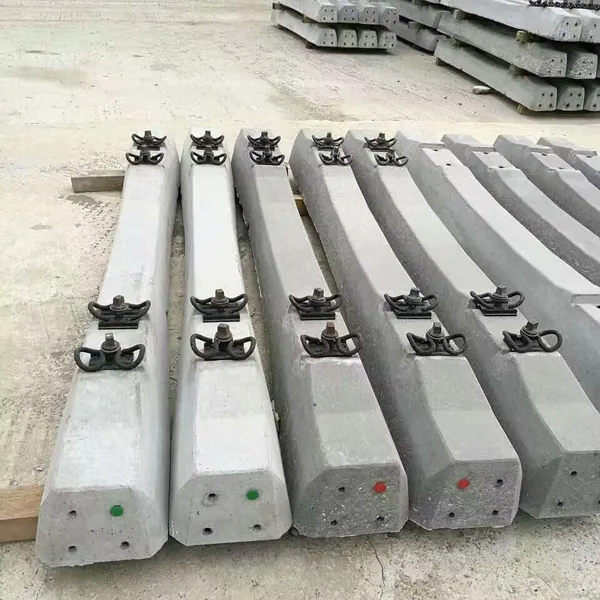

- Wide Compatibility: Suitable for various rail profiles (e.g., 50kg/m, 60kg/m) and sleeper types (concrete, wood, steel).
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Spring Steel (60Si2Mn or equivalent) |
| Thickness | 15 mm ± 0.5 mm |
| Surface Treatment | Hot Dip Galvanized (zinc coating ≥ 85 μm) |
| Standard | EN 13146-1 (static and dynamic testing) |
| Clamping Force | ≥ 12 kN (typical, varies by rail profile) |
| Fatigue Life | ≥ 5 million cycles (tested per EN 13146-1) |
| Operating Temperature | -40°C to +80°C |
| Weight per Piece | Approx. 0.8 kg (for standard 60kg/m rail clip) |
Why Choose Our Rail Clip?
Our Hot Dip Galvanized Elastic Rail Clip is manufactured using advanced production lines with strict quality control from raw material selection to final inspection. Each batch undergoes mechanical testing and dimensional checks to ensure consistent performance. The 15mm thickness provides an optimal balance between flexibility and strength, reducing the risk of rail rollover and ensuring long-term track stability. Compared to uncoated or painted clips, the hot-dip galvanized layer offers superior corrosion resistance, extending service life by 3–5 times in corrosive environments.
We understand that railway projects demand reliability. That’s why our clip is designed to withstand heavy axle loads (up to 25 tons) and high-speed traffic (up to 350 km/h). The elastic design also helps dampen vibrations, reducing noise and wear on both rails and sleepers.
Trust & Experience
With over 25 years of manufacturing experience, Anping County Boli Hardware Wiremesh Products Factory has exported railway components to more than 20 countries. Our annual export value of US$5–10 million reflects the trust of global clients. We ship from major Chinese ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery. Our dedicated team provides comprehensive after-sales support, including technical documentation, sample testing, and custom packaging options.
We invite you to contact us for a quote or to request samples. Our factory can also produce clips with customized dimensions or coating thickness based on your project requirements. Choose reliability – choose our 15mm Hot Dip Galvanized Elastic Rail Clip.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between this 15mm clip and standard 12mm clips?
A: The 15mm thickness provides higher clamping force and fatigue resistance, ideal for heavy-haul or high-speed lines where greater rail restraint is required. -
Q: Is the clip compatible with all rail profiles?
A: It is designed for standard rail profiles like 50kg/m, 60kg/m, and 75kg/m. For non-standard rails, we can customize the clip geometry. -
Q: How long does the hot-dip galvanized coating last?
A: In normal outdoor environments, the zinc coating can provide protection for 15–25 years. In aggressive environments (e.g., coastal, chemical), lifespan may be reduced; however, the coating thickness can be increased upon request. -
Q: Does the clip meet EN 13146-1 requirements?
A: Yes. Our clip is tested according to EN 13146-1 for static stiffness, dynamic stiffness, and fatigue performance. Test reports are available upon request. -
Q: What is the minimum order quantity (MOQ)?
A: MOQ is typically 500 pieces, but we can negotiate for smaller trial orders. Contact our sales team for details. -
Q: Can you provide samples before bulk order?
A: Yes, we offer free samples for qualification. You only need to pay for shipping. Samples can be sent within 7 days after order confirmation. -
Q: How do you ensure the quality of each batch?
A: We perform incoming inspection of raw materials (chemical composition, hardness), in-process dimensional checks, and final testing (clamping force, coating thickness, fatigue test). A quality certificate is provided with each shipment. -
Q: What is the typical lead time?
A: For standard sizes, lead time is 15–20 days after payment. For custom orders, it may be 25–30 days.
