SX011840 Robotics/Machine Tools Application Roller Bearing

SX011840 Robotics/Machine Tools Application Roller Bearing thumbnail-1
SX011840 Robotics/Machine Tools Application Roller Bearing thumbnail-2
SX011840 Robotics/Machine Tools Application Roller Bearing thumbnail-3
SX011840 Robotics/Machine Tools Application Roller Bearing photo-1
SX011840 Robotics/Machine Tools Application Roller Bearing photo-2

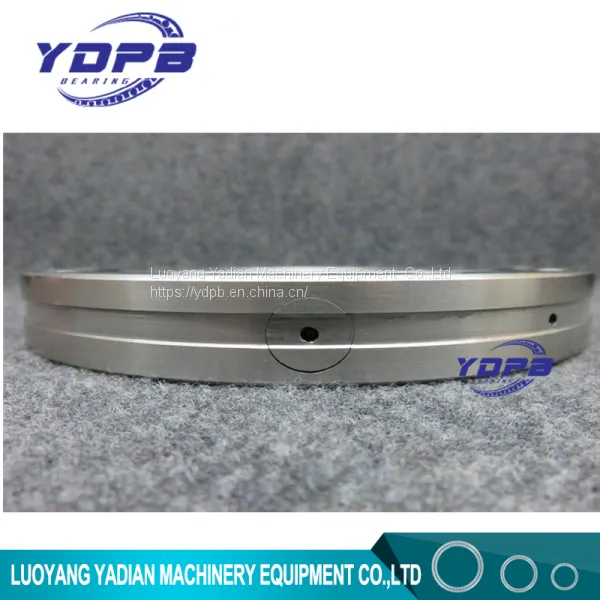

SX011840 Robotics/Machine Tools Application Roller Bearing photo-3

Product Spotlights

1. Inner ring integrity, outer ring division, optimized for inner ring rotation
2. Ultra-compact, thin section
3. High rigidity, adjustable preload & superior precision
4. radial load, axial load and overturning moment
6. Widely used in Small CNC indexing turntables, automation rotary fixtures, medium & small robot joints, optical inspection stages, precision measuring instruments, laser processing rotary stations.
Negotiable MOQ: 1 Combo (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Bearing Steel
Separated:
Unseparated
Rolling Body:
Roller Bearings
Contact Supplier Request Quote Chat Now
Luoyang Yadian Machinery Equipment Co.,Ltd
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Bearing Steel
Separated Unseparated
Rolling Body Roller Bearings
The Number of Rows Single
Outer Dimension Other, 90mm-620mm
Spherical Non-Aligning Bearings
Load Direction Other, radial axial load and tilting moment
Transport Package standard export packaging
Specification 200*250*24
Trademark YDPB
Origin China



SX series Crossed Roller Ring Bearings--Inner ring integrity, outer ring division

This series is similar to RB series, the outer ring is separatable and connect with three fixed rings, while the inner ring is intergrated with the main body. Cylindrical rollers are arranged alternately at 90° inside V-shaped raceways.

No pre-machined mounting holes on bearing rings; axial clamping flanges are required for installation. The split outer ring enables adjustable preload during assembly to eliminate internal clearance. Featuring ultra-thin compact cross-section, this model is optimized for inner ring rotation, widely used for lightweight rotary mechanisms of medium & small precision automation equipment.


Applacations:

  1. CNC indexing turntables

  2. automated rotary fixtures

  3. medium & small robot joints

  4. manipulator rotary units

  5. optical inspection stages

  6. precision measuring instruments

  7. laser processing rotary stations

  8. precision medical rotary equipment


Same structure Different sizes models:

SX011814 /SX011818/ SX011820 /SX011824 /SX011828 /SX011832/ SX011836 /SX011840 /SX011848/ SX011860 /SX011868/ SX011880/SX0118/500


parameters:

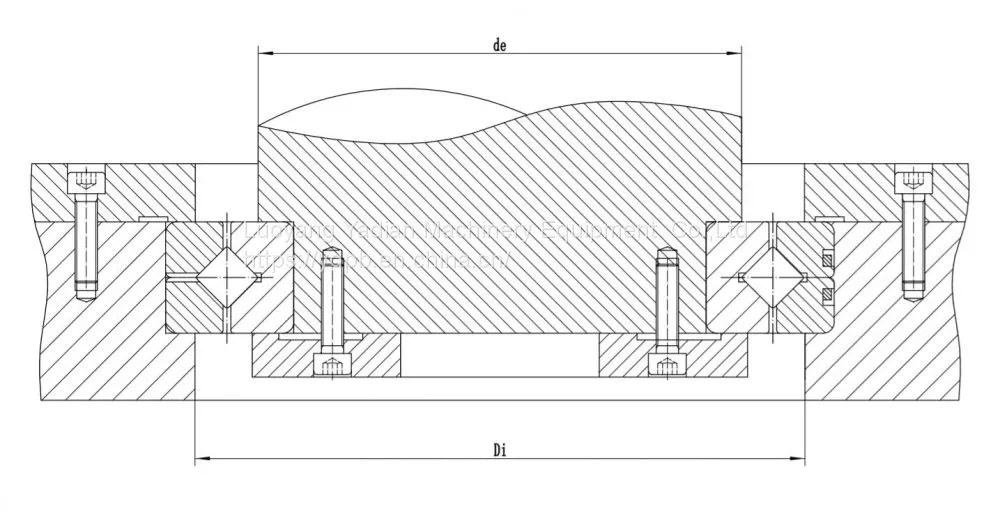

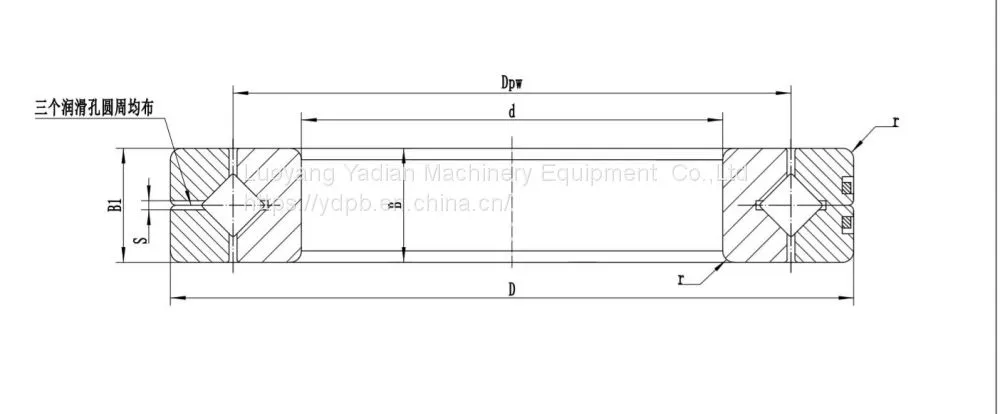

SX1SX2

Bearing

Type

 Dimension

   Basic Load Rating

   (Axial)

      Basic Load Rating      (Radial) Weight

Inner

Diameter

Outer

Diameter

Roller

 Pitch

 Diameter

 Width Oil Holes Chamfer Ca Coa Cr Cor
d D Dpw B  B1 S rmin kN kN kN kN kg
SX011814 70 90 80 10 1.2 0.6 18 60 12 30 0.3
SX011818 90 115 102 13 1.2 1 26 96 17 47 0.4
SX011820 100 125 112 13 1.2 1 28 106 18 52 0.5
SX011824 120 150 135 16 1.5 1 41 153 26 75 0.8
SX011828 140 175 157 18 1.5 1 64 237 41 116 1.1
SX011832 160 200 180 20 1.5 1.1 69 272 44 133 1.7
SX011836 180 225 202 22 2 1.1 98 381 63 187 2.3
SX011840 200 250 225 24 2 1.5 106 425 68 208 3.1
SX011848 240 300 270 28 2 2 149 612 95 300 5.3
SX011860 300 380 340 38 2.5 2.1 245 1027 156 504 12
SX011868 340 420 380 38
 2.5 2.1 265 1148 167 563 13.5
SX011880 400 500 450 46 2.5 2.5 385 1699 244 833 24
SX0118/500 500 620 560 56 2.5 3 260 2538 355 1244 44


SX011814 SX011828 crossed roller bearings


Other core products :
YRT Rotary Table Bearing ,

YRTS High speed rotary table bearings ,

YRTM with angle measuring system bearings,

ZKLDF series rotary table bearings ,

RB/RE/RA/RU/SX/XU/XSU/XR/JXR series Crossed roller bearing / Robotic bearing

Thin section bearing / Robotic bearing

Turntable bearing /Slewing bearing ,

Angular Contact Ball Bearing ,

Ceramic bearings.

Besides,Many other precision bearings series available ,and customization service available according to  drawings or samples.

If you have any needs, pls contact us anytime, thanks!


Luoyang Yadian Mechanical Equipment Co., Ltd. mainly produces a series of precision bearings including turntable bearings, crossed roller bearings, crossed tapered bearings, harmonic reducer bearings, flexible bearings, RV reducer bearings, constant cross-section thin-section bearings, precision machine tool spindle bearings, and precision rotary table bearings. The bearing production covers inner diameters from Φ3mm to outer diameters of Φ2500mm, with precision grades of P5, P4, and P2; higher precision bearings can be provided upon request. The company's leading products are YRT, YRTS, YRTM, ZKLDF, and ZKLDFM series turntable bearings, as well as RB RE, RU, RA, RA-C, RAU, CRB, CRBC, CRBH, CRBS, CRBT, CRBTF, XU, XA, XI XSU, XSA, XSI, and SX series crossed cylindrical roller bearings, and JXR, XR, and Z series crossed tapered roller bearings. Meanwhile, Luoyang Yadianings can also provide CSG and SHF series harmonic reducer bearings, flexible bearings, RV reducer bearings, constant cross-section thin-section bearings, precision machine tool spindle bearings, precision rotary bearings, and non-standard customized bearings. Currently, the YDPB series products have been widely applied in fields such as CNC machine tools, industrial robots, service robots, collaborative, AGVs, SCARA robots, exoskeleton robots, surgical robots, hexapod robots, quadruped robots, humanoid robots, aviation equipment, radar communications, medical equipment, precision measuring instruments printing and dyeing equipment, alignment platforms, optical equipment, industrial rotary tables, hollow rotary platforms, DD motors/direct drive motors, harmonic reducers, and planetary reducers. They are matched with universities and research institutes, used in special robots, mobile radar vehicles, and national key scientific research projects to replace imports, earning high praise from customers.
