Anping Xinye Metal Wire Mesh Products Co., Ltd is proud to present our high-quality Alkali Resistant Fiberglass Mesh, designed specifically for stucco, EPS foam board, and plaster mosaic applications. With a weight range from 75g/m² to 510g/m², this versatile mesh provides superior reinforcement, crack prevention, and long-term durability for both interior and exterior construction projects. Our factory in Hengshui, Hebei, China, leverages advanced weaving and coating technologies to ensure consistent quality and excellent alkali resistance, meeting the demands of modern building systems.
Key Features and Technical Specifications
- Alkali Resistance: Special acrylic/latex coating protects the fiberglass from alkaline environments, extending the service life of the mesh in cement-based plasters and stucco.
- High Tensile Strength: The woven fiberglass structure provides excellent tensile properties, reducing the risk of cracking and structural deformation.
- Lightweight & Easy to Install: The mesh is flexible, easy to cut, and can be quickly embedded into wet mortar, saving labor time and cost.
- Customizable Weight & Openings: Available in various weights (75g to 510g) and mesh sizes (e.g., 4x4mm, 5x5mm, 10x10mm) to match different project requirements.
- Dimension Options: Standard roll width 1m, length 50m-100m; custom sizes available upon request.
- Color Choices: White, blue, green, yellow – can be customized to differentiate product lines or meet specific client preferences.
| Parameter | Specification |
|---|---|
| Material | Fiberglass (C-glass or E-glass) |
| Weight Range | 75g/m² – 510g/m² |
| Mesh Size (opening) | 4x4mm, 5x5mm, 10x10mm (custom) |
| Roll Width | 1m, 1.2m, 1.5m (custom) |
| Roll Length | 50m, 100m (custom) |
| Coating Type | Acrylic or Latex |
| Color | White, Blue, Green, Yellow (custom) |
| Application | Stucco, EPS Foam Board, Plaster Mosaic, EIFS |
Application Benefits
- For Stucco: The mesh reinforces the cementitious layer, preventing cracks caused by temperature changes or substrate movement. It also improves the bond between coats.
- For EPS Foam Board: When used in External Thermal Insulation Composite Systems (ETICS), the mesh provides impact resistance and ensures the insulation layer remains intact under mechanical stress.
- For Plaster Mosaic: The lightweight mesh serves as a base for mosaic tiles, ensuring even distribution of adhesive and preventing tile detachment.
- General: The product is water-resistant, non-magnetic, and does not rot, making it suitable for humid environments.
Trust and Quality Assurance from Anping Xinye

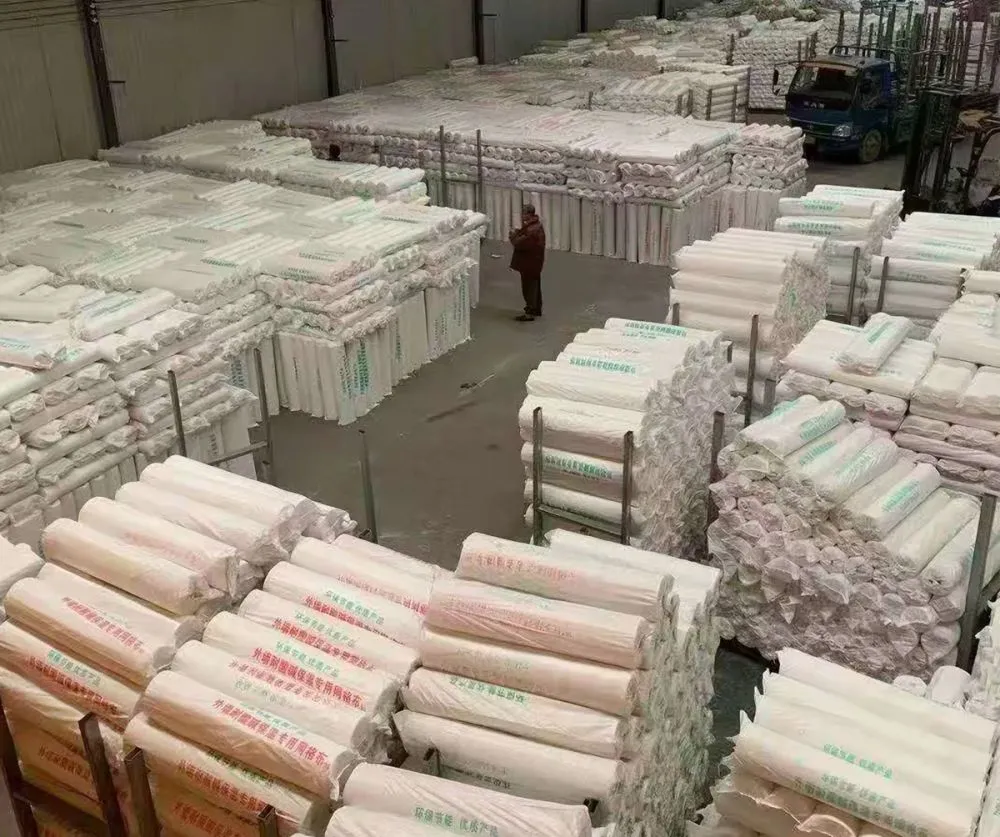

As a professional manufacturer located in the famous wire mesh industrial base of Hengshui, Hebei, Anping Xinye Metal Wire Mesh Products Co., Ltd has been dedicated to producing high-quality fiberglass mesh for years. Our facility is equipped with modern looms and coating lines, and we implement strict quality control at every stage – from raw material selection to final packaging. We have exported to multiple countries and regions, serving clients in the construction and insulation industries. Our commitment to consistency and customer satisfaction is the foundation of our business. We welcome inquiries for samples, custom specifications, and bulk orders.
Frequently Asked Questions (FAQ)
Q1: What is the difference between 75g and 510g mesh?
A: The weight indicates the density of fiberglass per square meter. Higher weight (e.g., 510g) provides greater tensile strength and impact resistance, suitable for heavy-duty applications like industrial floors or high-impact areas. Lower weight (e.g., 75g) is more flexible and cost-effective for light plastering or interior use.
Q2: Can this mesh be used for exterior wall insulation systems?
A: Yes, absolutely. Our alkali-resistant fiberglass mesh is specifically designed for EIFS (Exterior Insulation and Finish Systems) and ETICS. It provides reinforcement for the base coat applied over EPS or XPS foam boards.
Q3: Is the mesh pre-cut to specific sizes?
A: The mesh is supplied in rolls. Standard widths are 1m, 1.2m, and 1.5m, and standard lengths are 50m or 100m. Custom cutting to specific widths or lengths is available upon request.
Q4: Does the mesh need to be overlapped during installation?
A: Yes, it is recommended to overlap the mesh by at least 10cm (4 inches) when joining two pieces to ensure continuity of reinforcement. Overlap edges should be fully embedded in the mortar.
Q5: How should the mesh be stored?
A: Store in a dry, cool place away from direct sunlight. Keep the rolls in their original packaging to prevent moisture absorption. If the coating gets damp, dry it before use.
Q6: Can you provide samples before ordering?
A: Yes, we offer free samples (shipping cost may apply) for clients to evaluate the quality and suitability. Please contact our sales team with your requirements.
Q7: What is the lead time for bulk orders?
A: Typical lead time for standard specifications is 10-15 working days after order confirmation. Custom orders may require additional time depending on the complexity. We will provide a specific schedule upon inquiry.
Q8: Do you offer custom colors or printing?
A: Yes, we can customize the mesh color and even add a company logo or product marking on the mesh surface. Minimum order quantity may apply for custom colors.
Contact Anping Xinye today to discuss your project requirements. Our team is ready to provide technical support and competitive pricing for your stucco, EPS insulation, or plaster mosaic applications. Choose reliable fiberglass mesh from a trusted manufacturer in China.
