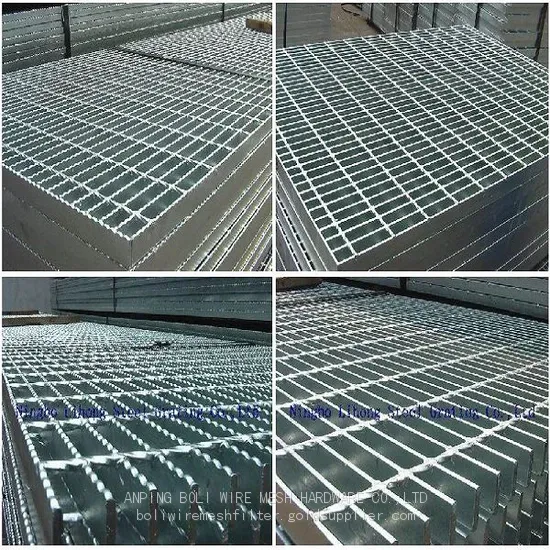

Hot Galvanized Bar Grating, Y Type Locking Bar, 25mm Bar Spacing, Anti-Slip Surfaces

Hot Galvanized Bar Grating, Y Type Locking Bar, 25mm Bar Spacing, Anti-Slip Surfaces thumbnail-3

Hot Galvanized Bar Grating, Y Type Locking Bar, 25mm Bar Spacing, Anti-Slip Surfaces thumbnail-4

Hot Galvanized Bar Grating, Y Type Locking Bar, 25mm Bar Spacing, Anti-Slip Surfaces thumbnail-5

Hot Galvanized Bar Grating, Y Type Locking Bar, 25mm Bar Spacing, Anti-Slip Surfaces photo-1

Hot Galvanized Bar Grating, Y Type Locking Bar, 25mm Bar Spacing, Anti-Slip Surfaces photo-2

Hot Galvanized Bar Grating, Y Type Locking Bar, 25mm Bar Spacing, Anti-Slip Surfaces photo-3

Hot Galvanized Bar Grating, Y Type Locking Bar, 25mm Bar Spacing, Anti-Slip Surfaces photo-4

Hot Galvanized Bar Grating, Y Type Locking Bar, 25mm Bar Spacing, Anti-Slip Surfaces photo-5

Product Spotlights

Hot dip galvanized Y-type locking bar grating with 25mm spacing and anti-slip surfaces offers superior corrosion resistance, secure locking, and enhanced safety. Customizable dimensions and load ratings, backed by 25+ years of manufacturing expertise and global export experience.

US$ 1.20 ≥1000 Square Feet

Key Specifications

Get Latest Price

Material:

Other, Hot Dipped Galvanized Steel

Application:

Other, Industrial Flooring

Locking Bar Type:

Y Type

Contact Supplier Request Quote Chat Now

Anping County Boli Hardware Wiremesh Products Factory

2Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN/QINGDAO/SHANGHAI

Delivery Detail:

3 days

Product Details
Company Profile
Contact Us

Material Other, Hot Dipped Galvanized Steel

Application Other, Industrial Flooring

Locking Bar Type Y Type

Bar Spacing 25mm

Surface Treatment Hot Galvanized

Anti-Slip Feature Serrated / Plain Surface

Customizable Size Yes (Length & Width per request)

Load Capacity Customizable based on design

Color Silver Gray (Galvanized finish)

As a trusted manufacturer established in 1998, Anping County Boli Hardware Wiremesh Products Factory specializes in high-quality industrial grating solutions. Our Hot Galvanized Bar Grating with Y Type Locking Bar offers superior strength and durability, featuring a 25mm bar spacing and anti-slip surfaces designed for demanding environments. With over 20 years of export experience and annual export value reaching US$5-10 million, we deliver reliable products to global markets including North America, Europe, and Southeast Asia.

Product Features and Technical Specifications

Hot Dip Galvanization: Ensures excellent corrosion resistance, extending service life in outdoor or humid conditions.
Y Type Locking Bar Design: Provides secure connection between bearing bars and cross bars, preventing rotation and enhancing structural stability.
25mm Bar Spacing: Optimized for safety and load distribution; ideal for pedestrian walkways and light industrial platforms.

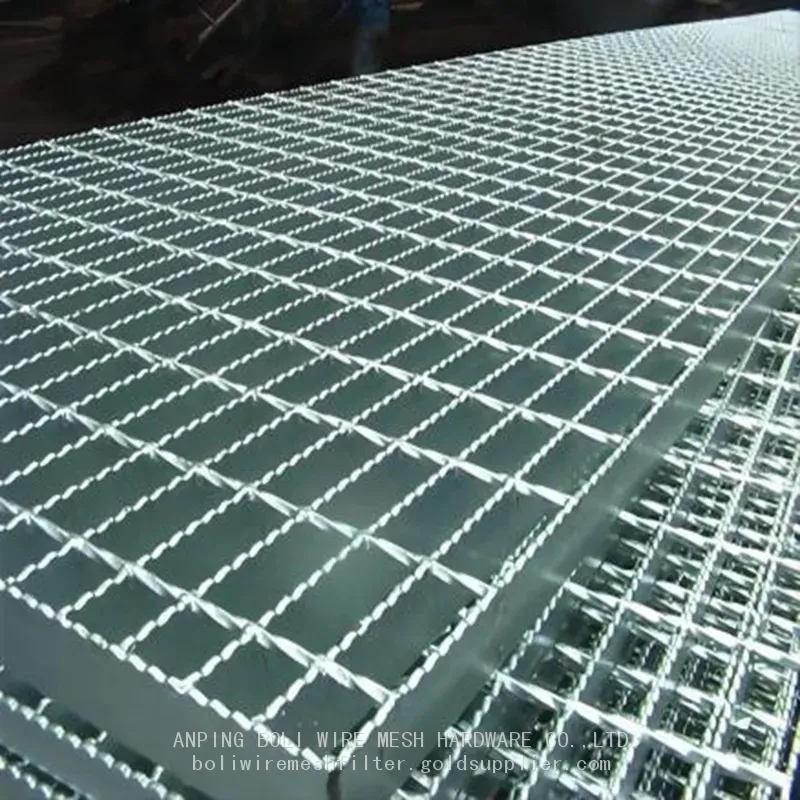

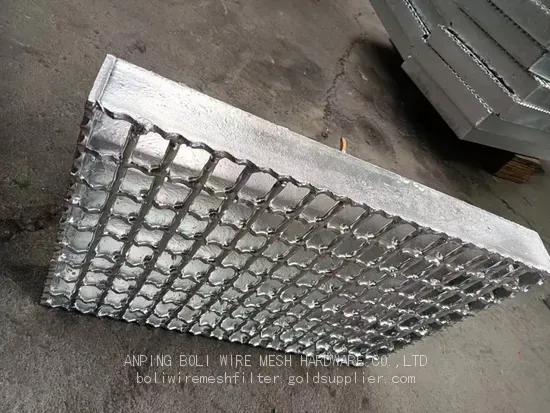

Anti-Slip Surfaces: Available in serrated or plain top options to reduce slipping risks in wet or oily environments.
High Load Capacity: Customizable bar thickness and spacing to meet specific weight requirements.

Parameter	Standard Value	Customization

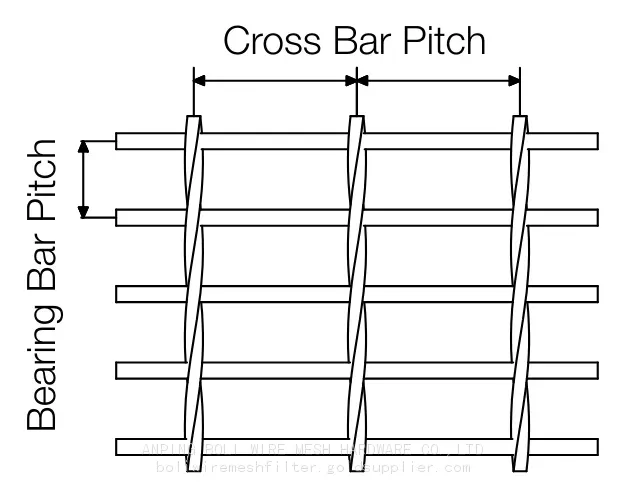

Bearing Bar Spacing	25mm	30mm, 40mm, 50mm available
Bearing Bar Thickness	3mm – 6mm	Up to 10mm upon request
Cross Bar Type	Y Type Locking Bar	Standard twisted bar optional
Surface Treatment	Hot Dip Galvanized	Painted or epoxy coating available
Anti-Slip Type	Serrated (standard)	Plain surface or raised pattern

Benefits for Your Application

Safety First: The anti-slip surface and precise 25mm spacing reduce the risk of foot slips and tool drop-through.
Long-Lasting Performance: Hot galvanizing provides a tough, zinc-iron alloy layer that withstands harsh weather and chemical exposure.
Easy Installation: Lightweight yet strong, panels can be cut and welded on-site with standard tools; Y type locking bars simplify assembly.
Cost-Effective: Low maintenance and long service life lower total cost of ownership compared to painted or untreated steel gratings.

Why Choose Us? – Trust & Reliability

Since 1998, Anping County Boli Hardware Wiremesh Products Factory has been a professional manufacturer serving clients worldwide. Our annual export volume of US$5-10 million reflects our commitment to quality and customer satisfaction. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery. Our products are used in diverse industries such as petrochemical, automotive, food processing, and public infrastructure. With a dedicated team of engineers and rigorous quality control, we guarantee consistent product performance. Contact us today to discuss your specific requirements – we offer free samples and customized solutions.

Frequently Asked Questions

What is the standard size of the grating panels?
We offer standard sizes of 1m x 3m, but custom dimensions are available upon request. Please provide your required length and width.
How does the Y Type Locking Bar differ from traditional twisted bars?
The Y type locking bar creates a mechanically interlocked joint that resists twisting and rotation, providing higher structural integrity and easier installation.
Is the anti-slip surface suitable for oily environments?
Yes, the serrated surface pattern provides excellent traction even in the presence of oil, water, or grease, making it ideal for industrial floors.
What is the typical load capacity of this grating?
Load capacity depends on bar thickness and spacing. For standard 25mm spacing with 5mm bar thickness, the safe load is approximately 4 kN/m². We can engineer higher capacity upon request.
How long does the hot galvanized coating last?
Under normal atmospheric conditions, the hot dip galvanized coating can last 20-30 years before needing maintenance. In harsh environments, longevity may be reduced but still outperforms painted coatings.
Can I get the grating with a different bar spacing?
Absolutely. We offer 30mm, 40mm, and 50mm spacing as options. Custom spacing can be produced for specific applications.
What is the packaging method for export?
Gratings are packed in bundles with steel strapping and wrapped in waterproof paper or plastic to protect during transit. Wooden crates are available for added protection.
Do you provide samples before bulk order?
Yes, we can provide small samples (e.g., 300mm x 300mm) for testing. Please contact our sales team to arrange sample delivery.
