As a trusted manufacturer since 1998, Anping County Boli Hardware Wiremesh Products Factory proudly presents our Hot Galvanized Bar Grating Serrated 25x5mm – a premium solution for industrial flooring that combines durability, safety, and cost-effectiveness. With an annual export value of US$5–10 million and shipments from major Chinese ports (Tianjin, Qingdao, Shanghai, Foshan), we deliver consistent quality to global markets including North America, Europe, and Southeast Asia. Each panel comes with a Mill Test Report to guarantee material compliance and traceability.

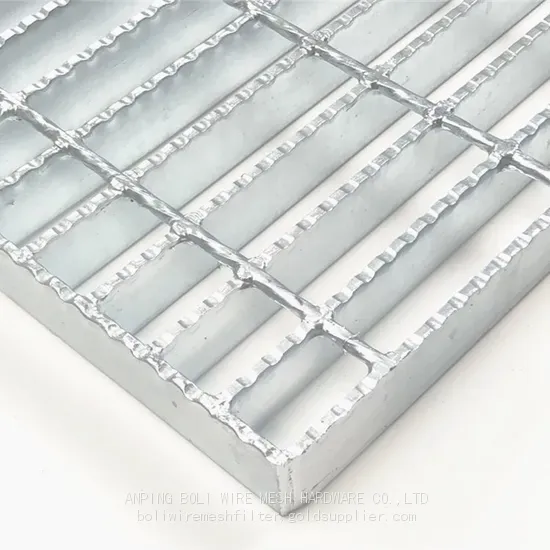

Our serrated bar grating features a 25mm x 5mm bearing bar with a serrated surface on one side, providing exceptional anti-slip performance even in wet or oily conditions. The hot-dip galvanized coating ensures long-term corrosion resistance, making it ideal for harsh industrial environments. Whether used for heavy-duty platforms, walkways, or trench covers, this grating offers reliable load-bearing capacity and easy installation.
Key Features and Benefits:
- Anti-Slip Safety: Serrated edges increase friction, reducing slip accidents in workplaces.
- High Load Capacity: Engineered to support heavy machinery and foot traffic; customizable for specific loads.
- Corrosion Protection: Hot-dip galvanizing (zinc coating) resists rust and extends service life.
- Versatile Applications: Suitable for industrial flooring, catwalks, mezzanines, drainage covers, and more.
- Mill Test Report Provided: Verifies material chemistry and mechanical properties for quality assurance.
- Custom Sizes Available: Panel dimensions, bar spacing, and cross bar pitch can be tailored to project requirements.
- Easy Installation: Lightweight yet strong, can be cut and welded on site.
Technical Specifications (Typical Parameters):
| Parameter | Value |
| Bearing Bar Size | 25mm x 5mm (height x thickness) |
| Bar Spacing (Center-to-Center) | 30mm, 40mm, or custom |
| Cross Bar Pitch | 50mm, 100mm, or custom |
| Surface Treatment | Hot-dip galvanized (zinc coating thickness ≥ 65μm) |
| Material Grade | Carbon steel (Q235B or equivalent) |
| Panel Length | Up to 6000mm (customizable) |
| Panel Width | Up to 1500mm (customizable) |
| Load Capacity | Varies by span and spacing; available upon request |
| Mill Test Report | Included for each batch |
Why Choose Our Serrated Bar Grating?
- Proven Manufacturing Experience: Over 25 years specializing in wire mesh and grating products.
- Global Export Capability: Serving markets on six continents with reliable logistics.
- Quality Control: Each panel is inspected before shipment; Mill Test Report ensures material integrity.
- Competitive Pricing: Direct factory pricing with no middlemen.
- Flexible Customization: We can produce panels to your exact drawings and specifications.
At Anping County Boli Hardware Wiremesh Products Factory, we understand that industrial flooring needs to be both safe and durable. Our Hot Galvanized Bar Grating Serrated 25x5mm is engineered to meet those demands. Backed by our US$5–10 million annual export value and a strong reputation across North America, Europe, and Asia, we are committed to delivering products that perform. Contact us today for a quote or technical consultation – we are ready to support your next project with precision and reliability.
Frequently Asked Questions (FAQ)
Q1: What is the load capacity of this 25x5mm serrated grating?
A: Load capacity depends on the bearing bar spacing, cross bar pitch, and clear span. For example, with 30mm bar spacing and 100mm cross bar pitch, a 600mm span can support approximately 4 kN/m² (uniformly distributed). Please provide your specific span and load requirements for an accurate calculation.
Q2: Is the serrated surface slip-resistant in wet conditions?
A: Yes, the serrated edges are designed to provide superior anti-slip performance even in wet, oily, or greasy environments. The raised teeth create additional friction, making it suitable for industrial flooring where worker safety is critical.
Q3: Can you customize the panel size and bar spacing?
A: Absolutely. We offer custom panel dimensions (length up to 6000mm, width up to 1500mm) and adjustable bar spacing (30mm, 40mm, or other). Just send us your drawings or requirements, and we will produce accordingly.
Q4: Do you provide a Mill Test Report with every shipment?
A: Yes, a Mill Test Report (MTR) is included for each batch of material, verifying the chemical composition and mechanical properties of the steel. This ensures traceability and quality assurance.
Q5: What is the typical lead time for this product?
A: For standard sizes, lead time is approximately 15–25 days after order confirmation. Custom orders may require additional time depending on complexity. We ship from Tianjin, Qingdao, Shanghai, or Foshan ports.
Q6: How corrosion-resistant is the hot-dip galvanized coating?
A: Hot-dip galvanizing provides excellent corrosion protection in most environments, including industrial, marine, and outdoor applications. The typical zinc coating thickness is ≥65μm, which can last for decades in moderate conditions. For highly corrosive environments, optional additional coating is available.
Q7: Can this grating be used for heavy-duty vehicle access?
A: While 25x5mm bars are suitable for pedestrian and light vehicle traffic, heavy-duty applications (e.g., truck loading) may require larger bearing bars (e.g., 32x5mm or 40x5mm). We can recommend the appropriate size based on your load requirements.
Q8: What payment terms do you accept?
A: We accept T/T (bank transfer), L/C, and other common terms. For first-time orders, a 30% deposit is typically required, with the balance before shipment. Negotiable for regular customers.
