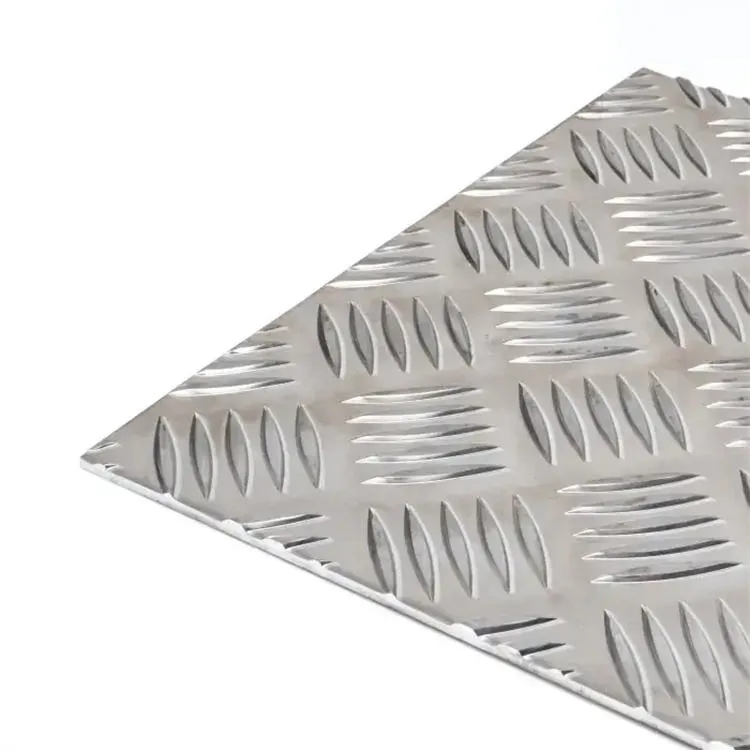

Hemaokang Steel (Shandong) Co., Ltd. is proud to present our premium 3003 H24 Patterned Aluminum Sheet Embossed with Teardrop Pattern, designed specifically for demanding marine applications. As a company certified with ISO9001 and backed by an annual export value of US$50 million – US$100 million, we combine rigorous quality control with professional manufacturing to deliver sheets that meet the ASTM B209 standard. Our tear-drop embossed surface provides superior slip resistance, while the 3003 H24 alloy offers excellent corrosion resistance and formability, making this product an ideal choice for boat decks, gangways, and other marine structures.
Product Features & Advantages
Superior Slip Resistance: The raised teardrop pattern creates a textured surface that significantly reduces the risk of slipping, even in wet or oily conditions – critical for marine safety.
Excellent Corrosion Resistance: Alloy 3003, combined with H24 temper, offers outstanding resistance to seawater and atmospheric corrosion, ensuring long service life in harsh marine environments.
High Strength-to-Weight Ratio: Lightweight yet strong, this aluminum sheet reduces structural load while maintaining durability, allowing for easier installation and reduced fuel consumption on vessels.
Formability & Workability: The H24 temper provides a balance of strength and ductility, making it easy to cut, bend, weld, and fabricate into custom shapes without cracking.
ASTM B209 Compliance: Manufactured strictly according to ASTM B209 specifications, guaranteeing consistent mechanical properties and dimensional tolerances.
Customizable Dimensions: Available in a wide range of thicknesses, widths, and lengths to meet specific project requirements – we can also supply cut-to-size sheets.
Low Maintenance: The embossed surface hides minor scratches and wear, and the aluminum’s natural oxide layer reduces the need for frequent painting or coating.
Technical Specifications
| Parameter | Value |
|---|---|
| Alloy | 3003 |
| Temper | H24 |
| Pattern | Teardrop (embossed) |
| Standard | ASTM B209 |
| Thickness Range | 0.5 mm – 6 mm (customizable) |
| Width Range | 1000 mm – 2000 mm (customizable) |
| Length Range | 2000 mm – 6000 mm (customizable) |
| Tensile Strength | 150 – 200 MPa (typical) |
| Yield Strength | ≥ 125 MPa (typical) |
| Elongation | ≥ 4% (typical) |
Why Choose Our 3003 H24 Teardrop Embossed Aluminum Sheet?
1. Marine-Grade Reliability – The combination of 3003 alloy and H24 temper ensures exceptional resistance to saltwater corrosion, making it a top choice for boat decks, dock flooring, ramps, and marine platforms. The teardrop pattern provides a non-slip walking surface that meets safety standards in maritime environments.
2. Cost-Effective Performance – Compared to stainless steel or other non-ferrous alloys, our aluminum sheet offers a lightweight solution at a competitive price. The long service life reduces replacement and maintenance costs, delivering excellent return on investment.
3. Fabrication Flexibility – Whether you need to weld, drill, or cut the sheet, the H24 temper offers good workability. It can be shaped into complex geometries without losing structural integrity, making it suitable for custom marine applications like stair treads, catwalks, and engine room flooring.
4. Global Quality Assurance – Our ISO9001-certified factory ensures each sheet undergoes strict inspection including dimensional check, chemical composition analysis, and mechanical property testing. We provide Mill Test Certificates upon request.
Trusted by Customers Worldwide
Hemaokang Steel (Shandong) Co., Ltd., with a dedicated team of 51–100 employees and an annual export value of US$50 million – US$100 million, has established a strong presence in markets across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and beyond. Our location in Liaocheng, Shandong – a major steel production hub in China – allows us to source raw materials efficiently and control production costs. We are committed to providing high-quality aluminum sheets that meet your exact specifications, with reliable delivery times and professional after-sales support. Contact us today for a quote or to discuss your custom requirements – we are ready to be your long-term partner in marine materials.
Frequently Asked Questions
Q: What is the difference between 3003 H24 and 5052 H32 for marine applications?
A: 3003 H24 offers excellent formability and moderate strength, while 5052 H32 has higher strength and better corrosion resistance. Our 3003 H24 sheet is ideal for applications where forming and welding are important, such as deck panels and non-structural components. For higher strength requirements, we can also supply 5052 grades upon request.Q: Can you supply sheets with a different pattern, such as diamond or checker plate?
A: Yes, we also offer diamond, 5-bar, and other embossed patterns. However, this specific product features the teardrop pattern, which is particularly popular for marine slip-resistant surfaces. Please contact us for pattern options.Q: What is the minimum order quantity (MOQ) for this product?
A: Our standard MOQ is 1 ton per size, but we can accommodate smaller trial orders for new customers. Please discuss your quantity requirements with our sales team.Q: Do you provide cut-to-size or custom dimensions?
A: Absolutely. We can cut the sheets to your exact dimensions, including custom widths and lengths within our production capabilities. There may be a small processing fee for non-standard sizes.Q: How is the sheet packaged for export?
A: Each sheet is interleaved with protective paper or plastic film, then packed in wooden crates or steel bundles with proper cushioning to prevent scratches and damage during transit. We also offer seaworthy packaging for ocean freight.Q: What is the lead time for a typical order?
A: For standard sizes, lead time is usually 15–20 working days after order confirmation. Custom sizes may require 20–25 working days. We can expedite for urgent orders subject to availability.Q: Can you provide a Mill Test Certificate (MTC) with the shipment?
A: Yes, we can provide an MTC for each batch, showing chemical composition and mechanical properties as per ASTM B209. This is included free of charge upon request.Q: Is this product suitable for use in freshwater environments or only saltwater?
A: The 3003 H24 alloy performs well in both fresh and saltwater environments. However, for prolonged immersion in highly corrosive saltwater, we recommend periodic rinsing and inspection. The teardrop pattern helps reduce pooling of water, further enhancing corrosion resistance.
