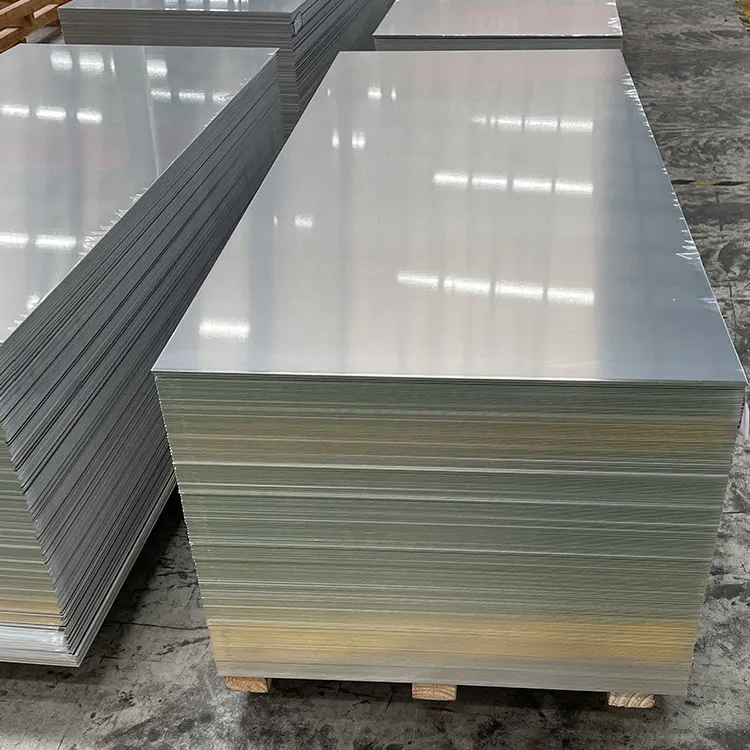

Hemaokang Steel (Shandong) Co., Ltd. is proud to offer premium 7075-T6 Aluminum Plate in thicknesses ranging from 2mm to 10mm, engineered for high-strength applications in the aerospace industry. As a newly established yet rapidly growing supplier with an annual export value exceeding US$50 million, we combine rigorous quality control with competitive pricing. Our 7075-T6 alloy delivers exceptional strength-to-weight ratio, making it the preferred choice for aircraft structures, satellite components, and demanding industrial frames. With ISO9001 certification and a dedicated team of 51–100 professionals, we ensure every plate meets international standards.
This product is designed for customers who require reliable performance under extreme conditions. Whether you are manufacturing wing spars, fuselage skins, or high-load mechanical parts, our 7075-T6 aluminum plate offers consistent mechanical properties and excellent machinability. We serve markets across North America, Europe, Asia, and beyond, providing tailored solutions for both large-scale projects and custom orders.
Key Features & Benefits
- Ultra-High Strength: 7075-T6 is one of the strongest aluminum alloys available, with tensile strength up to 570 MPa, ideal for load-bearing aerospace components.
- Excellent Fatigue Resistance: The T6 tempering process enhances durability under cyclic loading, prolonging service life in airframes and moving parts.
- Lightweight: Density of 2.81 g/cm³ reduces overall weight without compromising structural integrity, contributing to fuel efficiency in aviation.
- Good Machinability: Can be cut, drilled, CNC milled, and formed with standard equipment, reducing fabrication time and cost.
- Precision Thickness Control: Available in 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, and 10mm with tight tolerances (±0.05mm for 2-5mm, ±0.1mm for 6-10mm).
- Customizable Dimensions: Width and length can be tailored to your specifications, with maximum width up to 2500mm and length up to 12000mm.
- Surface Options: Mill finish as standard; brushed or anodized finishes available upon request for enhanced corrosion resistance and appearance.
Technical Specifications
| Property | Value |
| Alloy | 7075 |
| Temper | T6 |
| Thickness Range | 2mm - 10mm |
| Tensile Strength (Typical) | ≥ 570 MPa |
| Yield Strength (Typical) | ≥ 505 MPa |
| Elongation | ≥ 11% |
| Hardness (Brinell) | 150 HB |
| Density | 2.81 g/cm³ |
| Applicable Standards | GB/T 3880, ASTM B209, AMS 4045 |
Common Applications
- Aerospace structural components (wing ribs, fuselage frames, bulkheads)
- Military equipment and armor plating
- High-performance molds and dies
- Automotive racing chassis and suspension parts
- Robotics and precision machinery
Why Choose Hemaokang Steel?
Since our establishment in 2025, Hemaokang Steel has rapidly grown to serve clients across 6 continents. Our annual export value of US$50 million+ reflects the trust placed in us by global buyers. We hold ISO9001 certification, ensuring consistent quality management from raw material sourcing to final delivery. Located in Liaocheng, Shandong, we leverage China's robust aluminum supply chain to offer competitive prices without compromising on quality.
Our team of 51–100 experienced professionals is dedicated to fast response, flexible customization, and timely shipping. Whether you need a standard 2mm plate or a custom 10mm thick sheet with specific dimensions, we can fulfill your requirements. We also provide third-party inspection reports upon request, and we support various payment terms to facilitate smooth transactions.
Contact us today to discuss your project needs. Let our 7075-T6 aluminum plate be the foundation of your next high-strength, lightweight design. We are ready to provide samples, technical data sheets, and volume pricing to help you move forward.
Frequently Asked Questions
-
Q: What is the difference between 7075-T6 and 6061-T6 aluminum?
A: 7075-T6 has significantly higher strength (tensile strength ~570 MPa vs 310 MPa for 6061) but is less weldable and more prone to stress corrosion. It is ideal for high-stress aerospace applications, while 6061 is better for general structural use. -
Q: Can you supply plates with thicknesses outside 2mm-10mm?
A: Yes, we can provide thicker plates (up to 50mm) or thinner sheets (down to 0.5mm) upon request. Please contact our sales team with your specific requirements. -
Q: Do you offer cut-to-size or custom shapes?
A: Absolutely. We can cut plates to your exact dimensions using precision sawing or waterjet cutting. Custom shapes are also available with a small setup fee. -
Q: Is anodizing or other surface treatments available?
A: Yes, we offer anodizing (clear or colored), brushing, and painting. Please specify your need when placing an order, as lead time may vary. -
Q: What certifications do you provide with the material?
A: We provide mill test certificates (MTC) per ASTM B209 or GB/T 3880. Third-party inspection reports (e.g., SGS, BV) can be arranged at additional cost. -
Q: What is the minimum order quantity (MOQ)?
A: For standard sizes, MOQ is 1 ton. For custom dimensions or special finishes, MOQ may be higher. Contact us for small quantity trials. -
Q: How long does shipping usually take?
A: For standard thicknesses and sizes, we ship within 7–15 days after deposit. Custom orders may take 15–25 days. We work with reliable freight forwarders to ensure safe delivery worldwide. -
Q: Can you provide samples for testing?
A: Yes, sample plates (e.g., 200mm x 200mm) are available at cost. Please inquire about sample availability and shipping charges.
