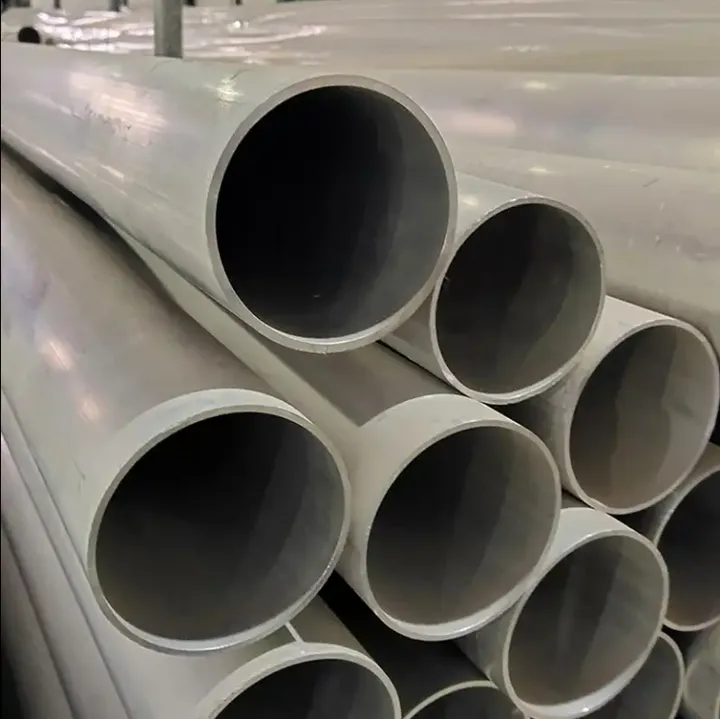

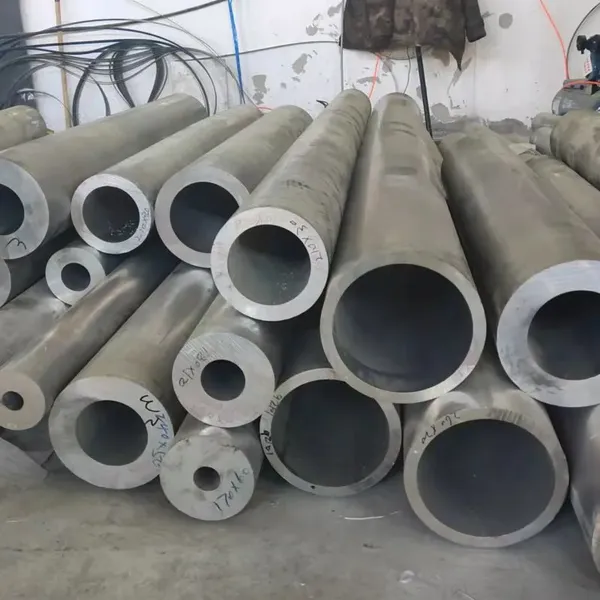

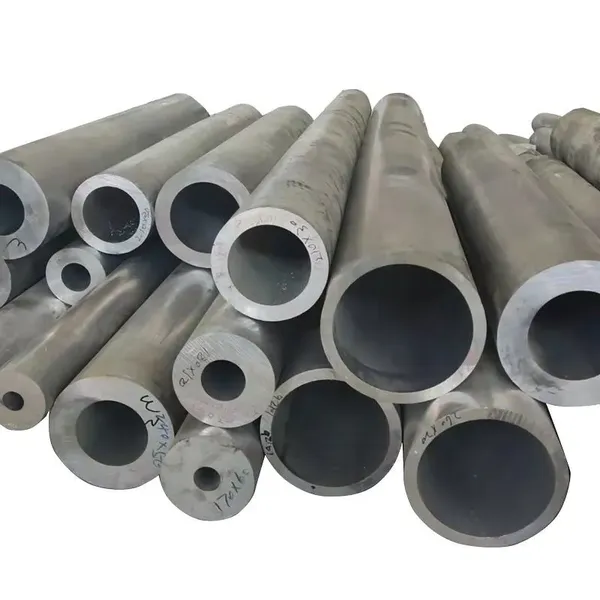

Hemaokang Steel (Shandong) Co., Ltd. is proud to present our Heavy Duty Large Caliber Aluminum Tube 6082 T6 with an outer diameter of 150mm, specifically engineered for demanding construction frame applications. As a company with an annual export value exceeding US$50 million and ISO9001 certification, we ensure every tube meets rigorous quality standards. Our 6082 T6 aluminum alloy combines high strength with excellent corrosion resistance, making it the preferred choice for structural frameworks in commercial buildings, industrial plants, and infrastructure projects.
This large-caliber aluminum tube is manufactured using advanced extrusion technology, resulting in precise dimensions and superior mechanical properties. The T6 temper provides enhanced hardness and load-bearing capacity, ideal for heavy-duty construction frames where reliability and longevity are critical. Whether you need standard lengths or customized sizes, our flexible production capabilities can accommodate your specific requirements.
Key Features & Benefits
High Strength-to-Weight Ratio: 6082 T6 aluminum offers excellent structural integrity while being significantly lighter than steel, reducing overall frame weight and transportation costs.
Excellent Corrosion Resistance: Naturally resistant to atmospheric corrosion, suitable for both indoor and outdoor construction environments.
Precision Extrusion: Consistent outer diameter (150mm) and wall thickness within tight tolerances (±0.5mm), ensuring easy assembly and compatibility with standard connectors.
Weldability & Machinability: Can be easily welded, drilled, and cut on-site, facilitating quick installation and modifications.
Customizable Options: Available in various lengths, wall thicknesses, and surface treatments (mill finish, anodized, powder coated) to meet your project needs.
ISO9001 Certified Quality: Every batch undergoes strict quality control, including tensile strength tests, hardness checks, and dimensional inspections.
Technical Specifications
| Parameter | Value |
| Alloy & Temper | 6082 T6 |
| Outer Diameter | 150 mm (customizable: 100-300 mm) |
| Wall Thickness | 2.0 - 20.0 mm (customizable) |
| Length | 1 - 12 m (customizable) |
| Tensile Strength (Min) | 310 MPa |
| Yield Strength (Min) | 260 MPa |
| Elongation (Min) | 10% |
| Surface Treatment | Mill Finish, Anodized, Powder Coated (optional) |
| Certification | ISO9001:2015 |
Why Choose Hemaokang Steel?
With over US$50 million in annual export value and a dedicated team of 51-100 employees, Hemaokang Steel (Shandong) Co., Ltd. has established a strong global presence serving markets across North America, Europe, Asia, Africa, and Oceania. Our ISO9001-certified quality management system ensures consistent product excellence. We understand that construction projects demand reliability, which is why we conduct rigorous testing on every tube before shipment. Our large inventory of 6082 T6 aluminum tubes allows for quick delivery, while our experienced engineers provide technical support to help you select the optimal specifications for your frame design.
We are committed to offering competitive pricing without compromising on quality. Whether you are a contractor, fabricator, or distributor, our heavy-duty large caliber aluminum tubes will enhance your construction frame's performance and durability. Contact us today for a quote or to discuss your custom requirements.
Frequently Asked Questions
Q1: What is the difference between 6082 and 6061 aluminum?
A: 6082 alloy has higher strength (especially in T6 temper) and better corrosion resistance compared to 6061. It is often preferred for structural applications where load-bearing capacity is critical, such as construction frames and bridges.
Q2: Can you provide tubes with a wall thickness of 5mm for 150mm OD?
A: Yes, we offer customizable wall thicknesses. A 5mm wall thickness is available. Please specify your exact requirements when ordering.
Q3: What surface treatments are available for outdoor use?
A: For outdoor applications, we recommend anodized or powder-coated finishes, which provide enhanced UV resistance and long-term durability. Mill finish is also available but may require additional protection.
Q4: Do you provide cutting services for specific lengths?
A: Yes, we can cut tubes to your desired lengths with precision. Please inform us of your requirements, and we will prepare accordingly.
Q5: What is the minimum order quantity (MOQ) for this product?
A: The MOQ is typically 500 kg for standard sizes. For custom sizes or special surface treatments, the MOQ may vary. Contact our sales team for details.
Q6: How do you ensure the quality of the tubes?
A: Our ISO9001-certified quality system includes raw material inspection, in-process checks, and final testing (tensile, hardness, dimensional). Each batch is accompanied by a mill test certificate.
Q7: Can these tubes be welded to form large frames?
A: Yes, 6082 T6 aluminum has good weldability. However, the heat-affected zone may experience some strength reduction. We recommend using proper welding techniques and filler materials (e.g., ER5356). Pre-weld and post-weld heat treatment can be discussed.
Q8: Do you ship to international ports?
A: Absolutely. We export to all major markets globally. Our logistics team can arrange sea, air, or rail freight with proper packaging to protect the tubes during transit.
