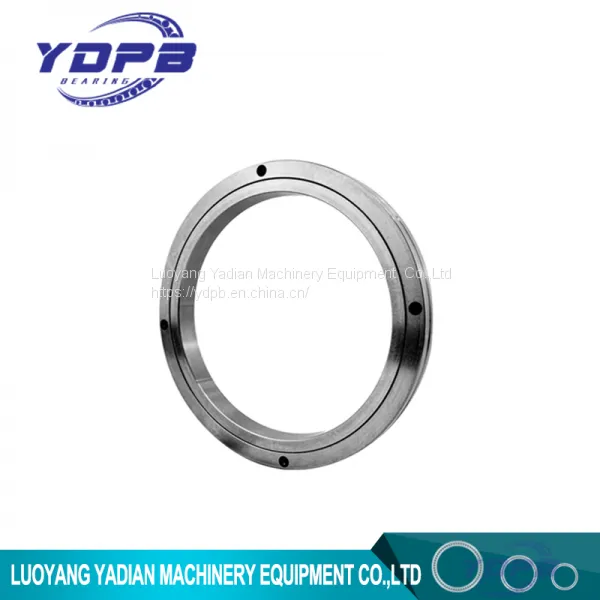

Help CenterCRBH25025A CRBH Series Crossed Cylindrical Roller Bearing China
Product Spotlights
2. Integrated one-piece inner & outer ring without split cut
3. radial load, axial load and overturning moment
4. Standard P5 precision, customized P4 available
5. Compact thin cross-section, Small thickness saves installation space
6. Widely used inMini collaborative robots, robot end wrists, optical inspection turntables, miniature hollow rotary modules, precision medical devices, semiconductor handling equipment, compact pan-tilt units.
Related Products
-
SX011814 SX Series Crossed Roller Bearing Industrial Equipment BearingNegotiableMOQ: 1 Combo -
SX011818 Compact Thin Section Lightweight Crossed Roller BearingNegotiableMOQ: 1 Combo
-
SX011820 Ultra-thin Crossed Roller Bearing Ideal For Inner Ring RotationNegotiableMOQ: 1 Combo
-
SX011824 Ultra-thin Crossed Roller Bearing Ideal For Inner Ring RotationNegotiableMOQ: 1 Combo
-
China Factory SX011828 Ultra-thin Crossed Roller Bearing For CNC Indexing TurntablesNegotiableMOQ: 1 Combo
CRBH Series crossed roller bearings

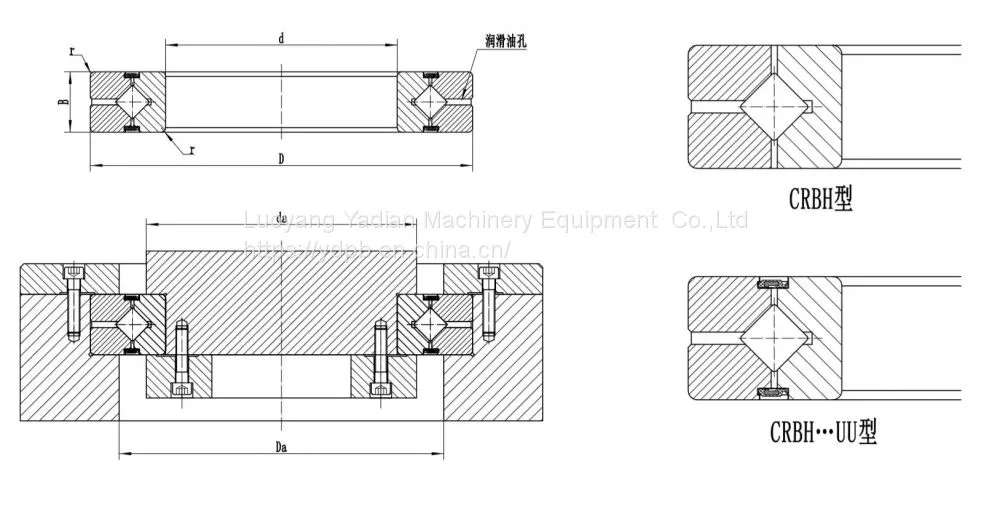

CRBH series ultra-thin crossed roller bearings adopts integrated inner ring and outer ring without split cut. Cylindrical rollers are alternately arranged at 90° inside V-shaped raceways.No pre-machined mounting holes on bearing rings; external clamping flange or pressing plate is required for installation. Preload is preset during production and cannot be adjusted on site.
It supports both inner ring rotation and outer ring rotation. Ultra-thin thin-wall design saves installation space. Widely used for compact precision automation equipment.
Features:
1. Integrated one-piece inner & outer ring without split cut
Balanced high rigidity, suitable for both inner ring rotation and outer ring rotation. Better stability than split-ring RA series for outer rotating applications.
2. Ultra-thin compact cross-section
Saves axial installation space, ideal for miniaturized precision machinery design.
3. Multi-direction combined load capacity
90° alternately arranged cylindrical rollers withstand radial load, bidirectional axial load and overturning moment in one single bearing.
4. Roller spacer retainer
Prevents roller skew and mutual friction, ensures low starting torque and smooth steady rotation.
5. Factory preset preload
Clearance eliminated during production. Stable rotational accuracy, performance will not be affected during assembly. On-site preload adjustment is unavailable.
6. Optional precision grades & seals
Standard P5 precision; customized P4 high precision available.
7. Multiple sealing options

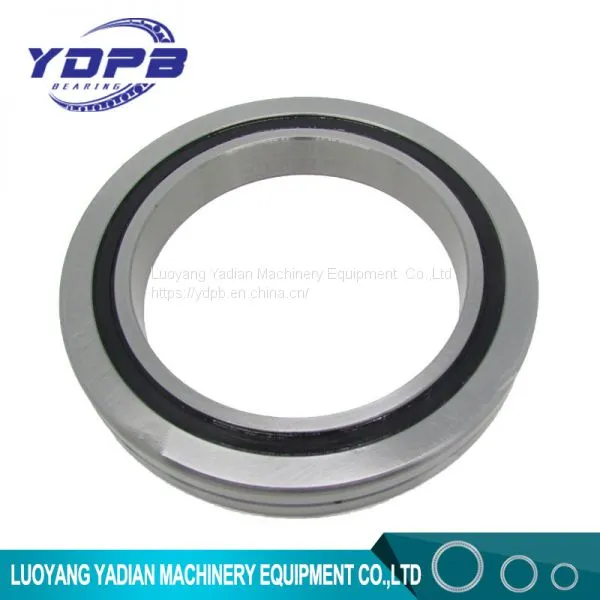

Open type (CRBH…A) and double sealed type (CRBH…AUU), suitable for cleanroom and slightly dusty environments.
Applications:
Mini collaborative robots
robot wrist joints
optical inspection turntables
miniature rotary modules
precision medical equipment
semiconductor handling devices
compact surveillance pan-tilt
rotary units for optical instruments.
parameters:
|
Bearing Type |
Dimension | Shoulder Size | Basic Load Rating(Radial) |
Weight | |||||
| Inner Diameter | Out Diameter |
Width | Chamfer | Cr | Cor | ||||
| d | D | B | Rmin | ds | Dh | kN | kN | kg | |
| CRBH208A | 20 | 36 | 8 |
0.3 | 24 | 31 | 2.91 | 2.43 | 0.04 |
| CRBH258A | 25 | 41 | 8 | 0.3 | 29 | 36 | 3.12 | 2.81 | 0.05 |
| CRBH3010A | 30 | 55 | 10 | 0.3 | 36.5 | 48.5 | 7.6 | 8.37 | 0.12 |
| CRBH3510A | 35 |
60 | 10 | 0.3 | 41.5 | 53.5 | 7.9 | 9.13 | 0.13 |
| CRBH4010A | 40 | 65 | 10 | 0.3 | 46.5 | 58.5 | 8.61 | 10.6 | 0.15 |
| CRBH4510A | 45 | 70 | 10 | 0.3 | 51.5 | 63.5 | 8.86 | 11.3 | 0.16 |
| CRBH5013A | 50 | 80 | 13 | 0.6 | 56 | 74 | 17.3 | 20.9 | 0.29 |
| CRBH6013A | 60 | 90 | 13 | 0.6 | 66 | 84 | 18.8 | 24.3 | 0.33 |
| CRBH7013A | 70 | 100 | 13 | 0.6 | 76 | 94 | 20.1 | 27.7 |
0.38 |
| CRBH8016A | 80 | 120 | 16 | 0.6 | 88 | 112 | 32.1 | 43.4 | 0.74 |
| CRBH9016A | 90 | 130 | 16 | 0.6 | 98 | 122 | 33.1 | 46.8 | 0.81 |
| CRBH10020A | 100 | 150 | 20 | 0.6 | 110 | 140 | 50.9 | 72.2 | 1.45 |
| CRBH11020A | 110 | 160 | 20 | 0.6 | 120 | 150 | 52.4 | 77.4 | 1.56 |
| CRBH12025A | 120 | 180 | 25 | 1 | 132 | 168 | 73.4 | 108 | 2.62 |
| CRBH13025A | 130 | 190 | 25 | 1 | 142 | 178 | 75.9 | 115 | 2.82 |
| CRBH14025A | 140 | 200 | 25 | 1 | 152 | 188 | 81.9 | 130 | 2.96 |
| CRBH15025A | 150 | 210 | 25 | 1 | 162 | 198 | 84.3 | 138 | 3.16 |
| CRBH20025A | 200 | 260 | 25 | 1 | 212 | 248 | 92.3 | 169 | 4 |
| CRBH25025A | 250 | 310 | 25 | 1.5 | 262 | 298 | 102 | 207 | 4.97 |
Other core products :
YRT Rotary Table Bearing ,
YRTS High speed rotary table bearings ,
YRTM with angle measuring system bearings,
ZKLDF series rotary table bearings ,
RB/RE/RA/RU/SX/XU/XSU/XR/JXR series Crossed roller bearing / Robotic bearing
Thin section bearing / Robotic bearing
Turntable bearing /Slewing bearing ,
Angular Contact Ball Bearing ,
Ceramic bearings.
Besides,Many other precision bearings series available ,and customization service available according to drawings or samples.
If you have any needs, pls contact us anytime, thanks!
Luoyang Yadian Mechanical Equipment Co., Ltd. mainly produces a series of precision bearings including turntable bearings, crossed roller bearings, crossed tapered bearings, harmonic reducer bearings, flexible bearings, RV reducer bearings, constant cross-section thin-section bearings, precision machine tool spindle bearings, and precision rotary table bearings. The bearing production covers inner diameters from Φ3mm to outer diameters of Φ2500mm, with precision grades of P5, P4, and P2; higher precision bearings can be provided upon request. The company's leading products are YRT, YRTS, YRTM, ZKLDF, and ZKLDFM series turntable bearings, as well as RB RE, RU, RA, RA-C, RAU, CRB, CRBC, CRBH, CRBS, CRBT, CRBTF, XU, XA, XI XSU, XSA, XSI, and SX series crossed cylindrical roller bearings, and JXR, XR, and Z series crossed tapered roller bearings. Meanwhile, Luoyang Yadianings can also provide CSG and SHF series harmonic reducer bearings, flexible bearings, RV reducer bearings, constant cross-section thin-section bearings, precision machine tool spindle bearings, precision rotary bearings, and non-standard customized bearings. Currently, the YDPB series products have been widely applied in fields such as CNC machine tools, industrial robots, service robots, collaborative, AGVs, SCARA robots, exoskeleton robots, surgical robots, hexapod robots, quadruped robots, humanoid robots, aviation equipment, radar communications, medical equipment, precision measuring instruments printing and dyeing equipment, alignment platforms, optical equipment, industrial rotary tables, hollow rotary platforms, DD motors/direct drive motors, harmonic reducers, and planetary reducers. They are matched with universities and research institutes, used in special robots, mobile radar vehicles, and national key scientific research projects to replace imports, earning high praise from customers.
