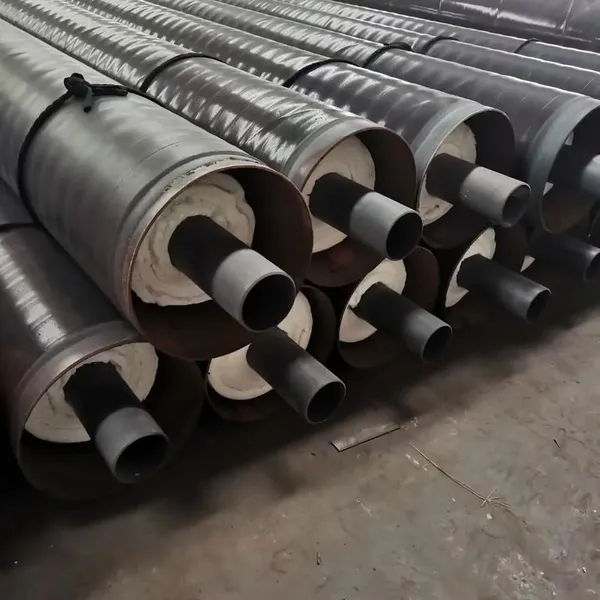

Help CenterHigh Temperature Resistant Steel Jacket Steam Insulation Pipe Rock Wool Insulated Pipe For Power Plant Steam Network
Product Spotlights
HDPE outer casing, excellent anti-corrosion & waterproof performance
Factory prefabricated, fast on-site installation, save labor cost
Closed-cell structure, prevent moisture penetration, long service life
Customized diameter & length, widely used for district heating system
Related Products
-
Closed‑Cell Rubber Foam Insulation Tube Anti‑condensation Antifreeze Rubber Plastic Pipe For Water Pipe & Air‑conditioningNegotiableMOQ: 1 Ton -
Anti-Corrosion Pipe API 5L Oil and Gas Pipeline DIN 30670 3PE/2PE Tpep Coated Anticorrosive ERW Steel PipeNegotiableMOQ: 2 Tons
-
API 5L Spiral Steel Pipe Tube Outside 3PE Cement Mortar Lined Anticorrosion SSAW Steel Pipe for Water Supply Drain PipeNegotiableMOQ: 2 Tons
-
3PE Anti-Corrosion LSAW Hsaw SSAW Spiral Welded Steel Pipe Manufacturers Producing Spiral Steel Pipeslarge-Diameter Spiral Steel Pipe Welded PipeNegotiableMOQ: 2 Tons
-
API Standard 3PE Coated SSAW Steel Pipe Buried Spiral Anti-Corrosion Steel PipeNegotiableMOQ: 2 Tons
Product Introduction

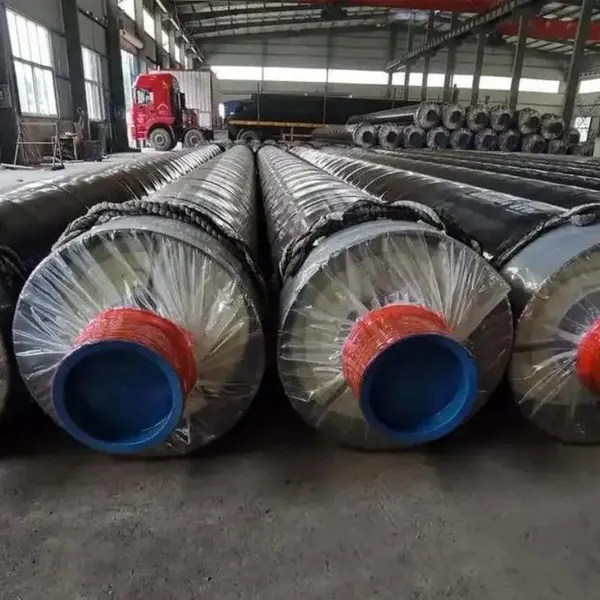

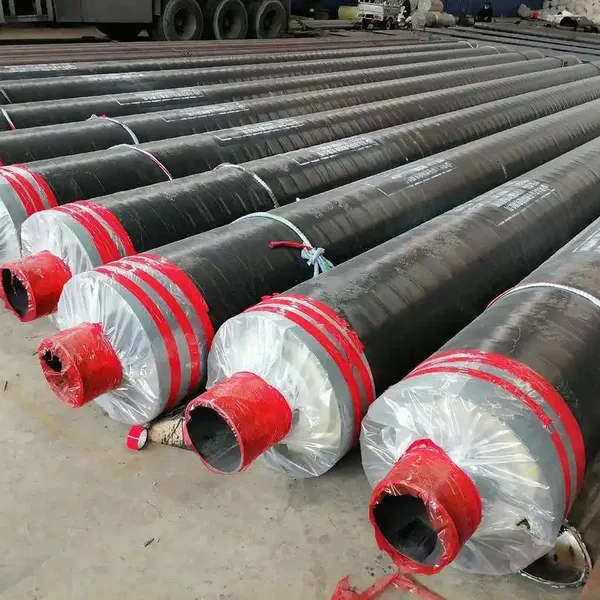

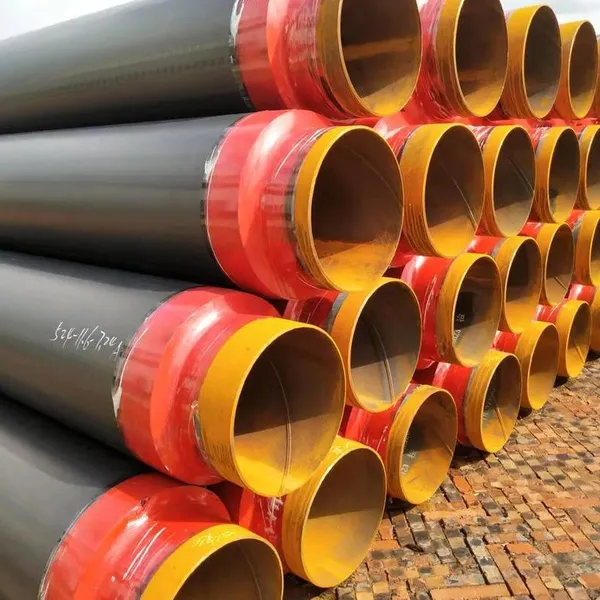

PU pre-insulated steel pipe is an integrated three-layer prefabricated pipeline, consisting of working steel pipe, high-density rigid polyurethane foam insulation layer and HDPE outer protective casing.It is specially designed for underground district heating, residential hot water transportation and geothermal pipeline projects. The closed-cell polyurethane structure provides low thermal conductivity and excellent thermal insulation performance. Integral sealed structure achieves outstanding waterproof and anti-corrosion capacity. Factory prefabrication greatly accelerates site construction and cuts long-term maintenance costs, which is the mainstream pipeline for urban heating network.
Product Structure
Working Steel Pipe: 20# seamless steel pipe, Q235B spiral welded pipe, straight seam welded pipe
Insulation Layer: High density rigid PU closed-cell foam
Outer Casing: HDPE high-density polyethylene pipe
Optional Part: Leakage detection monitoring wire
Core Advantages
✅ Low thermal conductivity, minimum heat loss, energy-saving for heating operation
✅ Closed-cell waterproof structure, stop underground water infiltration to protect insulation layer
✅ One-piece factory prefabrication, simple installation, shorten construction period
✅ HDPE outer shell resists soil corrosion, ground pressure and aging
✅ Complete specifications DN50-DN1400, customize pipe length & insulation thickness
✅ Meet GB/T 29047 standard, available for engineering tender and inspection
Technical Specification
| Item | Parameter |
|---|---|
| Product Name | PU Pre-insulated Steel Pipe |
| Inner Pipe Material | 20# Seamless Steel Pipe / Q235B Spiral Steel Pipe |
| Insulation Material | High Density Rigid Polyurethane Foam |
| Outer Casing Material | HDPE Polyethylene Pipe |
| Transport Medium | Hot Water, Warm Water |
| Continuous Working Temperature | ≤120℃ |
| Laying Method | Direct Buried Underground |
| Specification Range | DN50 ~ DN1400 |
| Standard Length | 6 meters per piece (Customized length acceptable) |
| Executive Standard | GB/T 29047-2012 |
| Main Features | Waterproof, Anti-corrosion, Low Heat Loss, Long Service Life |
Application Scope
Urban district heating system, residential community heating pipeline, rural heating reconstruction project, hot spring transmission pipeline, factory hot water circulation system.
Our Service
Factory CapacityProfessional insulation pipe manufacturer with complete production lines. Strict raw material inspection and finished product testing, stable bulk supply. Factory visit is welcome.
Customization SupportSupport OEM & ODM. Customize caliber, insulation thickness, single pipe length and special requirements.
Packing & DeliveryPacked with rainproof tarpaulin. Professional logistics arrangement.
Technical SupportWe can provide product inspection documents, offer pipeline selection suggestion and construction technical consultation.
