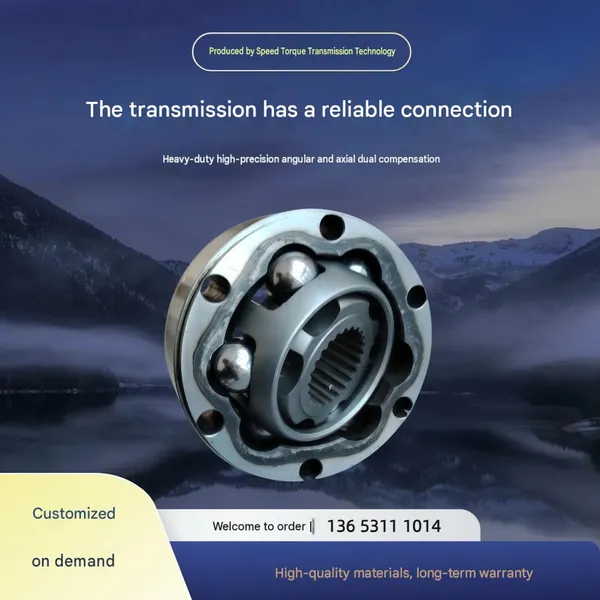

BJ-C Flange Ball Cage Universal Coupling Equal Speed Drive Shaft for Metallurgy Precision Roller Transmission
Product Spotlights
BJ-C Ball Cage Universal Coupling delivers constant velocity transmission for metallurgy precision roller drives. Features high torque capacity, ≤15° angular compensation, and ISO9001 quality. Customizable flange/bore sizes. Reduced vibration, extended service life, and easy maintenance. Ideal for heavy-duty industrial applications.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Alloy Steel / 40Cr
Bore Diameter:
Other, 20-100 mm (customizable)
Model:
BJ-C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Impact Resistance BJ-CD Insulated CV Coupling For Steel Rolling & Chemical Industry EquipmentNegotiableMOQ: 1 Piece -
BJ-C Flange Mounted Ball Cage CV Coupling Large Angular Compensation Maintenance-Free Drive ShaftNegotiableMOQ: 1 Piece
-
Factory Custom BJ-C Type CV Joint Coupling Ball Cage Universal Shaft Low Vibration & Low NoiseNegotiableMOQ: 1 Piece
-
BJ-C Ball Cage Universal Joint Coupling 2~3 Times Lifespan Over Traditional Cross Shaft CouplingNegotiableMOQ: 1 Piece
-
Ball Cage Type Synchronous Universal Coupling for Automotive DrivelineNegotiableMOQ: 1 Piece
Material
Other, Alloy Steel / 40Cr
Bore Diameter
Other, 20-100 mm (customizable)
Model
BJ-C
Flange Diameter
80-250 mm (customizable)
Max Torque
500-5000 Nm (depending on size)
Max Speed
3000-6000 RPM
Angle Compensation
≤15° per joint
Application
Metallurgy, Precision Roller Transmission
Certification
ISO9001:2015
Surface Treatment
Phosphating / Blackening / Galvanizing (optional)
Hebei Speed Torque Transmission Technology Co., Ltd. proudly presents the BJ-C Flange Ball Cage Universal Coupling — a high-performance equal speed drive shaft engineered for precision roller transmission in metallurgy applications. With over 7 years of manufacturing excellence and a 3,000-5,000 m² facility, we combine advanced machining technology with strict quality control to deliver couplings that ensure stable torque transmission, minimal backlash, and long service life. This product is designed to meet the rigorous demands of heavy-duty industrial environments where reliability and accuracy are paramount.
Key Features & Technical Specifications
- Equal Speed (Constant Velocity) Design: The ball cage structure ensures smooth power transmission at constant angular velocity, reducing vibration and noise even at high speeds or misaligned angles.
- Flange Connection: Robust flange mounting allows easy installation and disassembly, ideal for systems requiring frequent maintenance or shaft alignment adjustments.
- High Torque Capacity: Manufactured from high-strength alloy steel (40Cr or equivalent) with heat treatment, providing excellent torsional strength and fatigue resistance.
- Precision Roller Transmission: Optimized for metallurgy rolling mills, conveying lines, and other precision roller drives where consistent speed and torque are critical.
- Angle Compensation: Allows up to 15° angular misalignment per joint, accommodating shaft deflection and installation tolerances without affecting performance.
- Customizable Dimensions: Bore diameter, flange size, and overall length can be tailored to your specific application requirements.
| Parameter | Specification |
|---|---|
| Model | BJ-C |
| Material | 40Cr / Alloy Steel (optional) |
| Bore Diameter Range | 20 – 100 mm (customizable) |
| Flange Diameter | 80 – 250 mm (customizable) |
| Max Torque | 500 – 5000 Nm (depending on size) |
| Max Rotary Speed | 3000 – 6000 RPM |
| Angular Misalignment | ≤ 15° per joint |
| Surface Treatment | Phosphating / Blackening / Galvanizing (optional) |
| Certification | ISO9001:2015 |
Advantages for Your Application
- Reduced Downtime: The ball cage design minimizes wear and extends maintenance intervals, keeping your production line running longer.
- Energy Efficiency: Constant velocity transmission reduces power loss compared to conventional universal joints, improving overall system efficiency.
- Easy Integration: Flange connections are compatible with standard industrial shaft flanges, simplifying retrofit or new installations.
- Enhanced Safety: Robust construction and precise balancing reduce vibration and risk of sudden failure in high-speed applications.

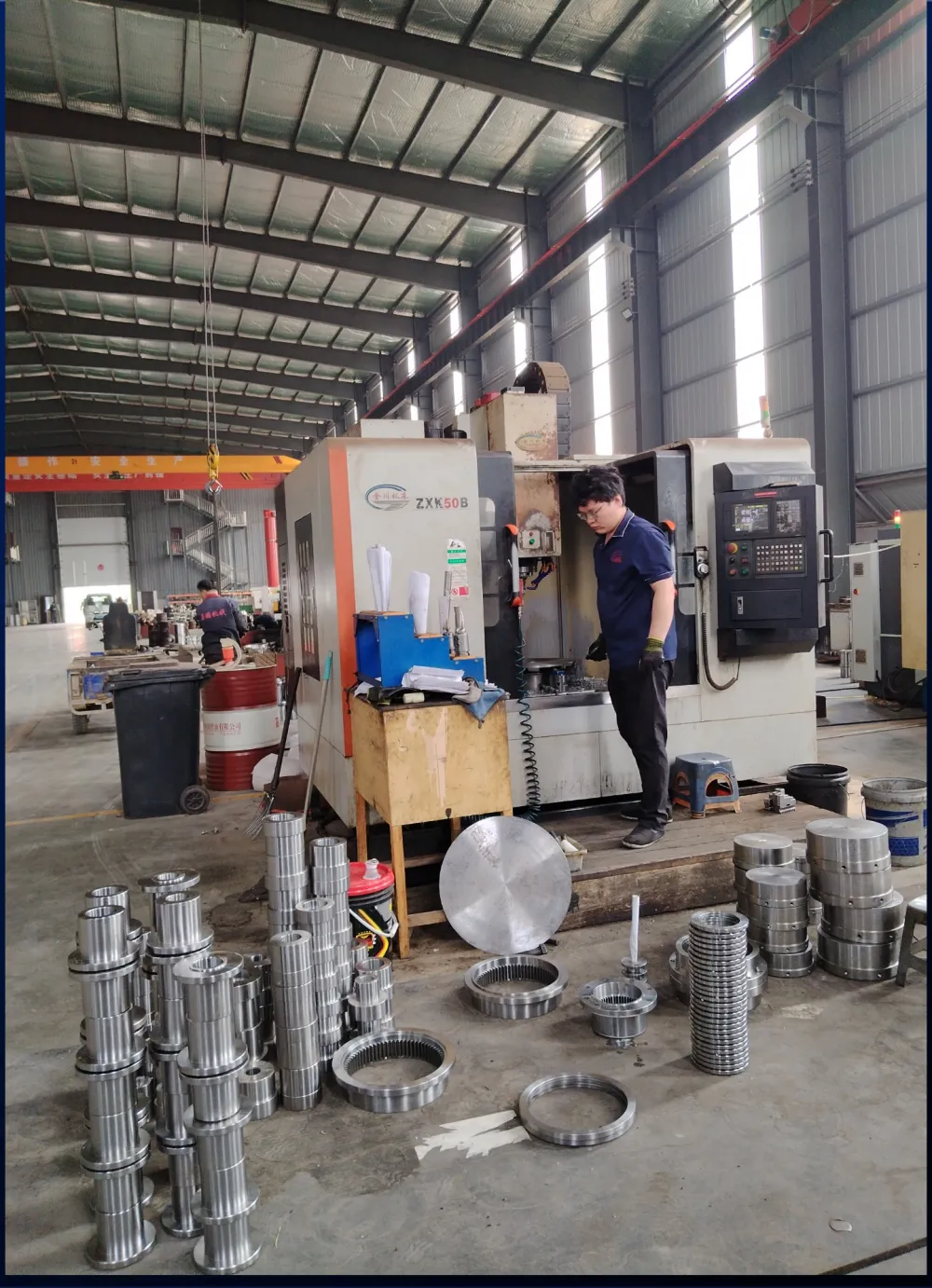

At Hebei Speed Torque Transmission Technology Co., Ltd., we have been serving the global transmission industry since 2017. Our factory spans 3,000–5,000 m² and is staffed by 101–200 skilled employees. With an annual export value of US$5–10 million, we export to markets across North America, South America, Europe, Southeast Asia, Africa, the Middle East, Oceania, and more. All our products are manufactured under the strict ISO9001:2015 quality management system, ensuring consistent quality and traceability. We ship from major ports including Shanghai, Tianjin, and Qingdao, and offer responsive technical support.
Choose the BJ-C Flange Ball Cage Universal Coupling for your precision roller transmission needs. Contact us today for a customized solution that meets your exact specifications. Our team is ready to assist with drawings, samples, and bulk orders.
Frequently Asked Questions
-
Q: What is the maximum operating temperature for this coupling?
A: The standard version can operate in temperatures from -20°C to +80°C. For higher temperatures (up to 200°C), please consult us for special materials or coatings. -
Q: Can I get a custom bore size or flange pattern?
A: Yes, we offer customization for bore diameter, keyway, flange bolt pattern, and overall length. Please provide your drawings or specifications. -
Q: How do I determine the correct size for my application?
A: We recommend calculating the required torque, speed, and misalignment angle. Our technical team can help you select the ideal model based on your motor power and load conditions. -
Q: Does this coupling require lubrication?
A: The ball cage joint is pre-lubricated with high-temperature grease and is maintenance-free under normal conditions. However, for extreme environments, periodic re-lubrication may be needed. -
Q: What is the typical lead time for standard sizes?
A: For standard stock sizes, lead time is 7–15 days. Custom orders typically take 20–30 days, depending on complexity and quantity. -
Q: Is the coupling suitable for reversing operation?
A: Yes, the BJ-C design handles bi-directional rotation without performance degradation, making it ideal for reversible drives. -
Q: Do you provide samples for testing?
A: Yes, we offer sample orders. Please contact our sales team to discuss the terms and availability. -
Q: What certifications do you have?
A: Our factory is ISO9001:2015 certified. We can also provide material certificates and inspection reports upon request.
