Help CenterCSJ-1300 FIBC LINER BOTTLE SHAPE SEALINHG CUTTING MACHINE
Product Spotlights
Related Products
-
Fully Automatic FIBC Liner Making Machine For Bottle ShapeNegotiableMOQ: 1 Set -
FIBC Form Fit Bottle Liner Sealing Cutting MachineNegotiableMOQ: 1 Set
-
FIBC Form Fit Bottle Liner Sealing Cutting MachineNegotiableMOQ: 1 Set
-
FIBC Baffle Liner Bag Sealing MachineNegotiableMOQ: 1 Set
-
CSJ-1300 AUTOMATIC BOTTLE SHAPE LINER SEALINHG CUTTING MACHINENegotiableMOQ: 1 Set

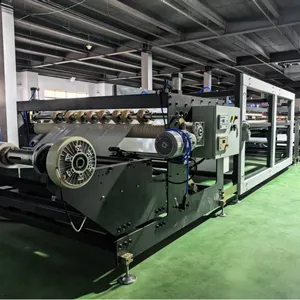

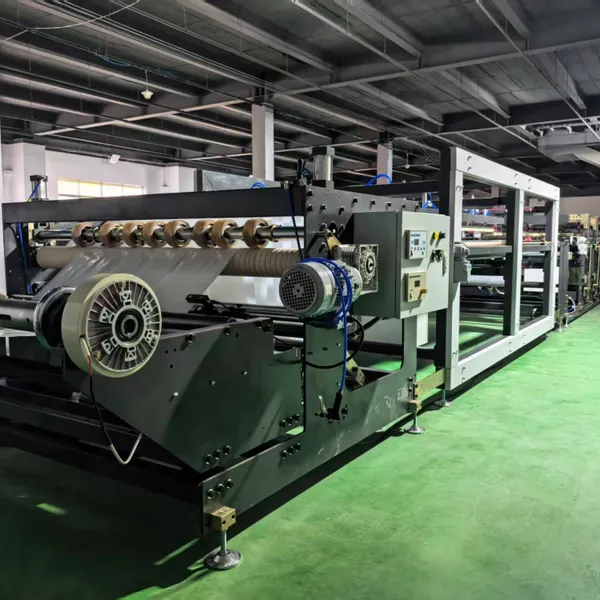

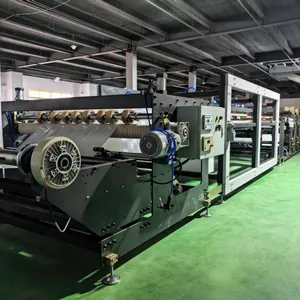

Air Shaft for unwinding station with sleeve fixing device.
Constant tension system: Adopting servo control for on-demand feeding to ensure constant tension of materials on the equipment
Floating part to ensure uniform supply of film
Vertical both side hot sealing

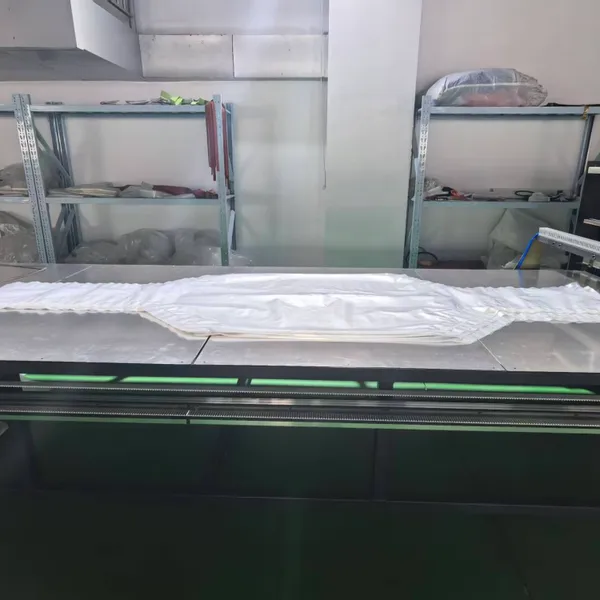

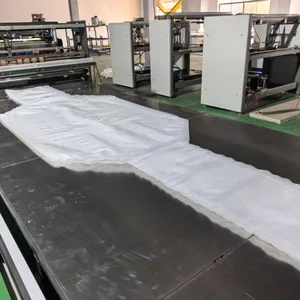

Top and Bottom bottle shape hot sealing
Relay correction:to keep the film stay in the middle of machine
Trimming (Cutting waste edge)
Automatic edge trimming system: Trim excess parts of the welded exterior as needed.
Fixed length cutting: Using servo control to ensure consistent size of each product.
Automatic collection device
Specification :
Model |
CSJ-1300 |
Raw material |
HDPE, LDPE tubular with folded. |
Width range |
900mm-1300mm |
Liner length |
3200-4500mm |
Angle |
135° |
Whole power |
35KW |
Film roll diameter |
1000mm |
Film roll weight |
500kg |
Film thickness |
50-200 micro |
Welding seam |
10mm |
Voltage supply |
380V 3phase 50HZ |
Max collecting length |
4500mm ( Customized) |
Machine dimension |
170000*2000*1500mm |
