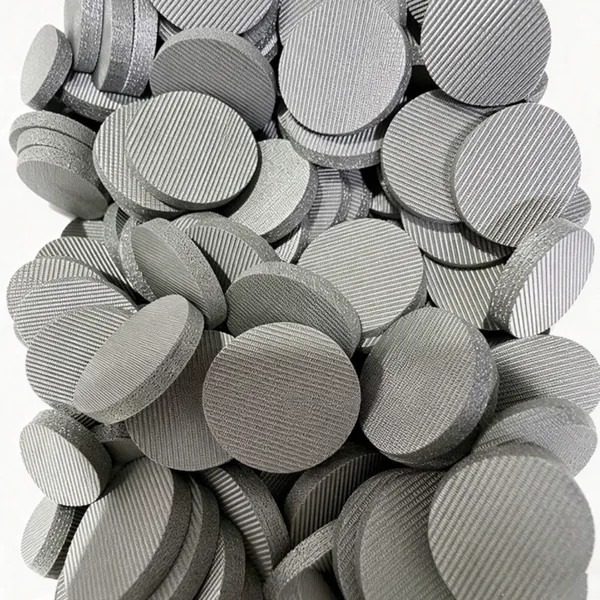

Help CenterSintered Mesh Filter With Mill Test Report 10 Micron 304 SS 2-Layer
Product Spotlights
Related Products
-
Multilayer Sintered Mesh Filter 40 Micron 316L 2mm Thickness 300°C Heat ResistantNegotiableMOQ: 1 Piece -
Sintered Stainless Steel Filter 1 Year Warranty 5 Micron 2mm Thickness Standard CompliantNegotiableMOQ: 1 Piece
-
Sintered Metal Filter for Water Treatment 20 Micron 304 SS 0.5mm ThicknessNegotiableMOQ: 1 Piece
-
304 Stainless Steel Sintered Mesh Filter 5 Micron 2mm Thickness 5-LayerNegotiableMOQ: 1 Piece
-
Sintered Metal Mesh Filter 316L 20 Micron Pore Size 1.5mm Thickness ISO CompliantNegotiableMOQ: 1 Piece
Welcome to Anping County Boli Hardware Wiremesh Products Factory, a trusted manufacturer since 1998 with an annual export value of US$5–10 million. Our Sintered Mesh Filter with Mill Test Report – 10 Micron, 304 SS, 2-Layer represents the pinnacle of precision filtration. Engineered for demanding applications, this filter combines superior mechanical strength with consistent micron rating, ensuring reliable performance in critical processes. Each unit is accompanied by a certified Mill Test Report, providing full material traceability and quality assurance.
This 2-layer sintered mesh filter is manufactured from high-quality 304 stainless steel, offering excellent corrosion resistance and durability. The sintering process bonds the layers at high temperature, creating a rigid, porous structure that maintains its integrity under pressure and thermal stress. With a nominal filtration rating of 10 microns, it effectively removes particles while maintaining high flow rates.
Key Features & Technical Specifications
- Material: 304 Stainless Steel – excellent resistance to oxidation, acids, and alkalis.
- Filtration Rating: 10 Micron (nominal) – suitable for fine particle removal.
- Layer Structure: 2-Layer sintered mesh – combines a support layer and a filtration layer for enhanced strength.
- Mill Test Report: Included with each shipment – verifies material composition and mechanical properties.
- Temperature Resistance: Up to 450°C (continuous) – suitable for hot gas and liquid filtration.
- Pressure Resistance: High burst pressure – design can be customized per application.
- Customizable Dimensions: Available in various diameters, thicknesses, and shapes (discs, sheets, cylinders).
- Backwash Capability: Reusable after cleaning – reduces replacement costs.
Technical Parameters (Typical)
| Parameter | Value |
|---|---|
| Filtration Rating | 10 µm (nominal) |
| Material | 304 Stainless Steel |
| Layers | 2 |
| Porosity | 30% – 40% (typical) |
| Max Operating Temperature | 450°C |
| Thickness | 0.5 – 3.0 mm (customizable) |
| Diameter (disc) | Up to 600 mm (custom) |
Benefits to Your Application
- Consistent Filtration: The sintered structure ensures uniform pore size distribution, providing reliable particle retention.
- High Mechanical Strength: The 2-layer design prevents deformation under high differential pressure, extending service life.
- Easy Cleaning: Can be backwashed, ultrasonically cleaned, or chemically regenerated, reducing downtime.
- Corrosion Resistance: 304 SS withstands many aggressive media, including water, oils, solvents, and mild chemicals.
- Traceability: Each filter comes with a Mill Test Report, confirming material grade and quality – essential for regulated industries.
- Versatile Shapes: Available in discs, sheets, tubes, or custom geometries to fit your equipment.
Why Choose Anping County Boli Hardware Wiremesh Products Factory?
With over 25 years of manufacturing experience, we have established a solid reputation in the global market. Our annual export value of US$5 million to US$10 million reflects the trust from customers across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and Asia. We ship from major Chinese ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery. Our factory is dedicated to quality control – every product is inspected before shipment, and the Mill Test Report is provided as standard. We also offer customization options for size, shape, and filtration rating to meet your specific requirements.
Ready to upgrade your filtration system? Contact us today for a quote or technical consultation. Our team will provide fast response, competitive pricing, and reliable after-sales support. Whether you need a small batch for testing or large-scale production, we are your trusted partner in sintered mesh filtration.
Frequently Asked Questions
-
What is the difference between 2-layer and multi-layer sintered mesh?
2-layer is suitable for general fine filtration where moderate strength is needed. Multi-layer (e.g., 5-layer) offers higher strength and better backwashability but may have slightly lower flow rates. Our 2-layer provides a balance of cost and performance. -
Can the filter be used for high-temperature gases?
Yes, 304 SS sintered mesh can operate continuously up to 450°C. For higher temperatures, we recommend 316L or Hastelloy options (available upon request). -
How do I clean the filter?
Common methods include backwashing with clean fluid, ultrasonic cleaning, or soaking in a suitable solvent. The filter is reusable many times. -
Is the Mill Test Report included with every order?
Yes, we provide a Mill Test Report for each batch, certifying the material composition and mechanical properties of the 304 stainless steel. -
Can you produce non-standard sizes?
Absolutely. We offer custom dimensions and shapes. Please provide your drawings or specifications for a quote. -
What is the typical lead time?
For standard sizes, lead time is 5–10 working days. Custom orders may take 10–20 working days depending on complexity. -
Do you offer samples for testing?
Yes, sample orders are welcome. We charge a nominal fee for samples, which is refundable upon bulk orders. -
What certifications do you have?
We follow strict internal quality control procedures. Specific third-party certifications can be arranged upon request at additional cost. Our factory is ISO 9001 compliant (not certified, but we adhere to similar standards).
