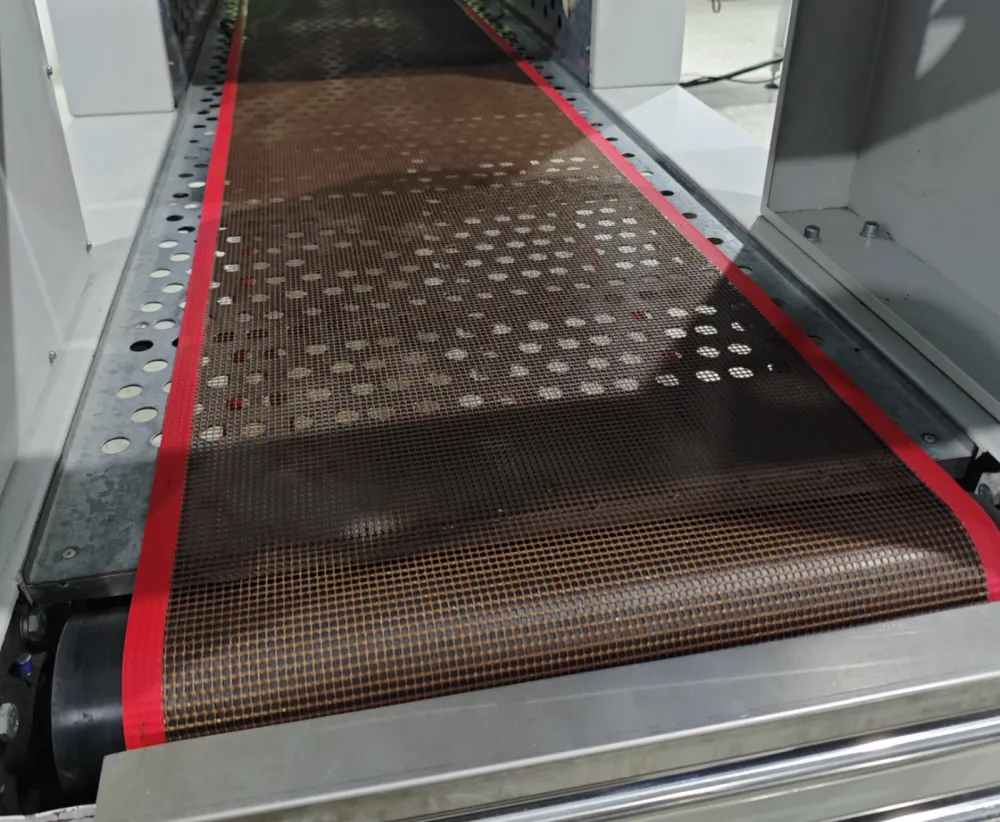

Anping County Boli Hardware Wiremesh Products Factory proudly presents our PTFE Fiberglass Mesh Conveyor Belt – a high-performance solution engineered for extreme thermal environments. With a proven heat resistance of up to 300°C and a standard width of 1000mm, this belt is designed to optimize your production line efficiency while ensuring durability and reliability. As a manufacturer with over two decades of experience (since 1998), we combine advanced weaving technology with premium PTFE coating to deliver a product that meets the rigorous demands of industries such as food processing, textile drying, and packaging. Our customizable options allow you to tailor the belt to your exact specifications, making it a versatile choice for continuous operations.
Key Features & Technical Specifications
- Superior Heat Resistance: Capable of continuous operation at 300°C, with peak tolerance up to 320°C, ensuring stable performance in high-temperature ovens and dryers.
- Non-Stick Surface: PTFE coating provides excellent release properties, minimizing product adhesion and reducing cleaning downtime.
- High Tensile Strength: Fiberglass base fabric offers exceptional strength-to-weight ratio, supporting heavy loads without stretching.
- Chemical Resistance: Resistant to acids, alkalis, and organic solvents, ideal for harsh chemical environments.
- Customizable Dimensions: Width available from 100mm to 3000mm; length and joint type (clipper, pin, or endless) can be customized per order.
- Open Mesh Structure: Promotes air circulation and heat transfer, improving drying efficiency by up to 30% compared to solid belts.
- Low Friction Coefficient: Reduces energy consumption and wear on drive components, extending belt life.
Technical Data Table
| Parameter | Value |
|---|---|
| Continuous Working Temperature | 300°C |
| Short-term Peak Temperature | 320°C |
| Standard Width | 1000mm |
| Available Width Range | 100mm – 3000mm (customizable) |
| Thickness | 0.5mm – 1.2mm (optional) |
| Mesh Open Area | 60% – 80% (depending on weave) |
| Tensile Strength (Warp) | ≥ 2000 N/50mm |
| Coefficient of Friction | 0.1 – 0.2 (dynamic) |
Advantages & Benefits for Your Business
- Boost Production Efficiency: The open mesh design allows hot air to circulate freely, reducing drying time and energy costs. Customers report up to 20% faster throughput.
- Minimize Maintenance: Non-stick PTFE surface prevents residue buildup, cutting cleaning cycles by half. The fiberglass core resists stretching and deformation, ensuring long-term dimensional stability.
- Versatile Applications: Suitable for food drying (fruits, vegetables, seafood), textile finishing, screen printing, packaging laminating, and composite material curing.
- Custom Solutions: Need a different width, edge reinforcement, or special joint? Our engineering team works with you to create a belt that fits your exact machine and process requirements.
- Cost-Effective Longevity: With proper use, the belt can last 12-18 months in continuous high-temperature environments, reducing replacement frequency and total cost of ownership.
Why Choose Anping Boli? – Trusted Since 1998
As a manufacturer with 25+ years of experience and an annual export value between US$5 Million and US$10 Million, we have supplied high-quality wire mesh products to clients across North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. Our factory in Hengshui, Hebei, China, is equipped with advanced looms and PTFE coating lines, ensuring consistent quality and timely delivery. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, giving you flexible logistics options. Our dedicated quality control team inspects every belt before shipment, guaranteeing that you receive a product that meets your specifications. We invite you to contact us for a quote or sample – let us help you optimize your thermal processing line with a reliable, customizable PTFE fiberglass mesh conveyor belt.
Frequently Asked Questions (FAQ)
Q1: What is the maximum temperature this belt can withstand?
A: The belt is designed for continuous operation at 300°C, with short-term peaks up to 320°C. For applications above 300°C, please consult our technical team for a customized solution.
Q2: Can I get a belt wider than 1000mm?
A: Yes, we offer widths from 100mm up to 3000mm. Custom widths are available upon request. Please specify your required width when placing an order.
Q3: Is the PTFE coating food-safe?
A: Our PTFE coating is made from high-purity, FDA-compliant raw materials (optional for food contact). Please indicate your application so we can recommend the appropriate grade.
Q4: What types of joints are available?
A: We offer clipper joints, pin joints, and endless (seamless) joints. The choice depends on your machine and installation requirements. We can advise based on your belt length and tension.
Q5: How long is the delivery time for a custom belt?
A: Typical lead time is 15-20 working days after order confirmation. For urgent orders, we can expedite production to 10-12 days subject to availability.
Q6: What is the minimum order quantity (MOQ)?
A: Our MOQ is 10 square meters for standard specifications. For custom sizes, please contact us for a quotation.
Q7: Do you provide samples before bulk order?
A: Yes, we can provide small samples (e.g., 200mm x 200mm) for evaluation. Sample cost is charged but will be deducted from your first bulk order.
Q8: How should I install and maintain the belt?
A: We provide installation instructions with each shipment. Key points: ensure proper tension (avoid over-tension), check alignment, and clean the belt with mild detergent as needed. Avoid sharp objects that could damage the PTFE coating.
