As a leading manufacturer from Anping County Boli Hardware Wiremesh Products Factory, established in 1998 with annual export value of US$5-10 million, we proudly present our 3mm Pitch PTFE Mesh Conveyor Belt with Kevlar Reinforcement. This belt is engineered to handle heavy loads while maintaining excellent thermal stability and non-stick properties. Our factory has been serving global markets including North America, Europe, and Southeast Asia for over two decades, ensuring consistent quality and reliable delivery.

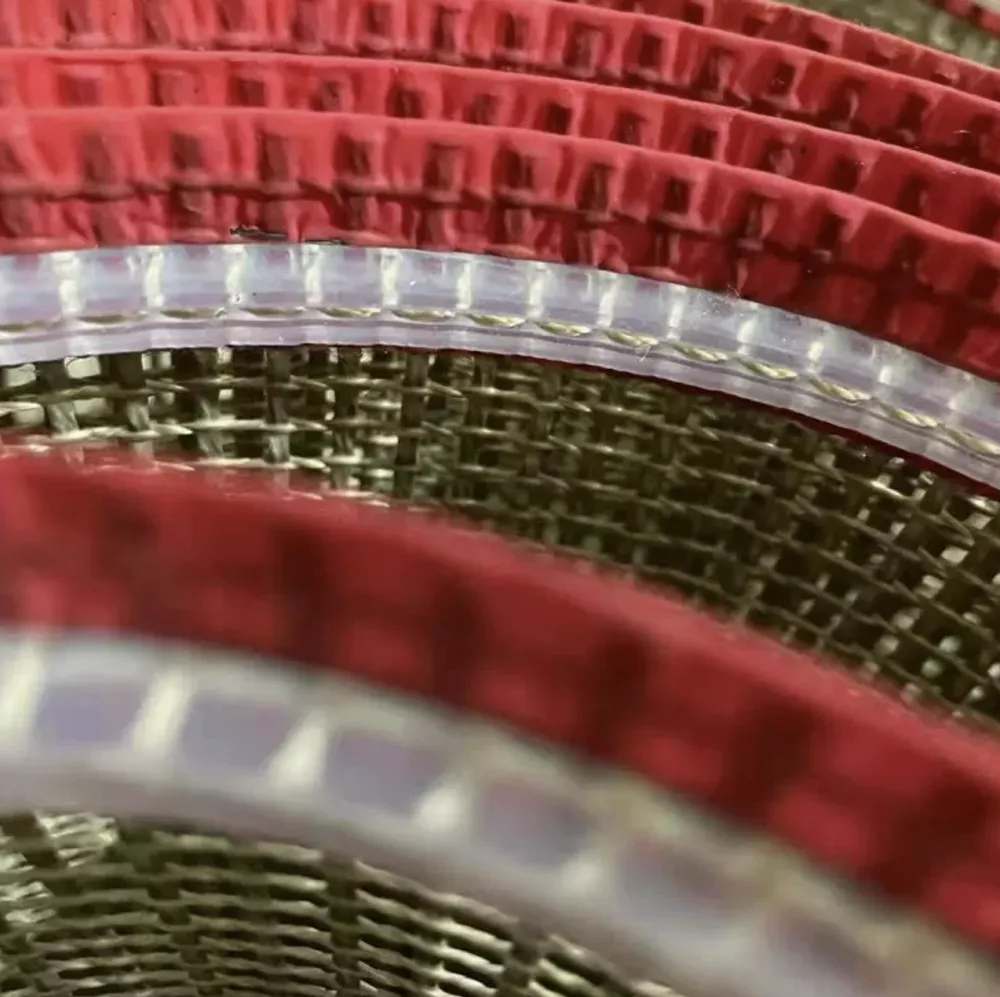

The belt features a precise 3mm open mesh structure that allows excellent air circulation, drainage, and heat transfer. The PTFE coating provides a non-stick surface that resists adhesion of sticky materials, while the embedded Kevlar reinforcement significantly enhances tensile strength and load-bearing capacity. This combination makes it ideal for heavy-duty conveying applications in high-temperature environments.
Key Features & Technical Specifications
- High Temperature Resistance: Operates continuously from -70°C to +260°C, suitable for baking, drying, and curing processes.
- Kevlar Reinforcement: Increases breaking strength by up to 40% compared to standard PTFE belts, allowing safe transport of heavy products.
- Non-Stick PTFE Surface: Prevents accumulation of residues, reducing cleaning downtime and improving hygiene.
- 3mm Open Mesh Design: Optimizes airflow and liquid drainage, ideal for washing, drying, and coating lines.
- Customizable Width & Length: Available in widths from 100 mm to 4000 mm, with longitudinal or spiral seams upon request.
- Low Friction Coefficient: Ensures smooth movement over rollers, extending belt life and reducing energy consumption.
| Parameter | Value |
|---|---|
| Pitch (center-to-center) | 3 mm |
| Mesh Open Area | Approx. 55% |
| Thickness | 0.5 mm – 0.8 mm (customizable) |
| Maximum Load (per meter width) | Up to 200 kg (depending on support) |
| Operating Temperature Range | -70°C to +260°C |
| Tensile Strength (warp) | ≥ 250 N/mm (with Kevlar) |
| Surface Coating | PTFE, food-grade available |
The Kevlar reinforcement is the key differentiator. Unlike standard PTFE belts that may stretch under heavy loads, our Kevlar-reinforced belt maintains dimensional stability, reducing maintenance frequency and belt replacement costs. The 3mm pitch mesh is particularly suitable for conveying small parts, baked goods, and electronic components, as it provides a stable yet open surface.
Trusted by Global Buyers
Anping County Boli Hardware Wiremesh Products Factory has been a reliable manufacturer since 1998. With an annual export value of US$5-10 million, we ship to major ports including Tianjin, Qingdao, Shanghai, and Foshan. Our products are used in over 20 countries across North America, South America, Europe, Africa, Oceania, and Asia. We provide customized solutions, fast sample delivery, and strict quality control.
We invite you to experience the durability and performance of our 3mm Pitch PTFE Mesh Conveyor Belt with Kevlar Reinforcement. Contact us today for a quote or technical consultation. Let our expertise support your production efficiency.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum operating temperature for this belt?
A: The belt can handle continuous temperatures from -70°C to +260°C. For short periods, it can withstand up to 300°C, but we recommend staying within the continuous range for optimal lifespan. -
Q: Can this belt be used in food contact applications?
A: Yes, we offer a food-grade PTFE coating that complies with FDA and EU regulations. Please specify when ordering. -
Q: How does Kevlar reinforcement improve performance?
A: Kevlar fibers increase tensile strength and reduce elongation under load, making the belt suitable for heavy-duty transport without sagging or stretching. -
Q: What is the typical lead time for custom sizes?
A: For standard widths and lengths, we can ship within 10-15 working days. Custom widths or special seams may require 20-25 working days. -
Q: How do I clean the belt?
A: The non-stick PTFE surface allows easy cleaning with mild detergent and water. Avoid abrasive tools that could damage the coating. -
Q: Do you provide samples for testing?
A: Yes, we offer free samples for small sizes (e.g., 300mm x 300mm). You only pay shipping. Contact us to arrange. -
Q: What is the warranty period?
A: We provide a 12-month warranty against manufacturing defects under normal operating conditions. -
Q: Can the belt be spliced into an endless loop?
A: Yes, we offer factory splicing or on-site splicing guidance. Endless belts are available upon request.
All specifications are subject to change without notice. Please confirm with our sales team for your specific requirements.
