Help CenterZKLDF150 Thrust Angular Contact Ball Bearing Made In China
Product Spotlights
2. Support Axial Radial Tilting Moment
3. Low frictional torque
4. Fit CNC Rotary Table ,Torque Motor,5-Axis machine,Direct drive Spindle
5. Full Size Stock with Fast Delivery
Related Products
-
ZKLDF580 Thrust Angular Contact Ball Bearing For CNC Direct DriveNegotiableMOQ: 1 Piece -
ZKLDF260 Thrust Angular Contact Ball Bearing For 5-axis MachinesNegotiableMOQ: 1 Piece
-
ZKLDF325 Thrust Angular Contact Ball Bearing For 5-axis MachinesNegotiableMOQ: 1 Piece
-
China ZKLDF395 High Rotational Accuracy BearingNegotiableMOQ: 1 Piece
-
ZKLDF460 Thrust Angular Contact Ball Bearing With High Rotational AccuracyNegotiableMOQ: 1 Piece
ZKLDF150 double thrust angular contact ball bearing consists of an integral outer ring and two divided inner ring and two sets of steel ball and cage components, the contact angular is 60°. The outer ring and inner rirng both with mounting holes, the bearing itself are connected withthe bolts to ensure the installing the transporting and moving.It accommodates combined radial load, bidirectional axial load and overturning moment. The ball design delivers low friction torque and high limiting speed with excellent rotational accuracy. Preloaded as standard, equipped with mounting holes and integrated seals, it is ideal for continuous long-duration high-speed rotation.
Application:
•Direct-drive CNC rotary tables & 5-axis machining centers
•Ultra-precision grinding & vertical grinding
•Gear cutting equipment
•High-precision indexing heads & rotary positioning fixtures
•Precision inspection & measuring equipment
•Medical imaging equipment
•Aerospace & defense precision rotary mechanisms

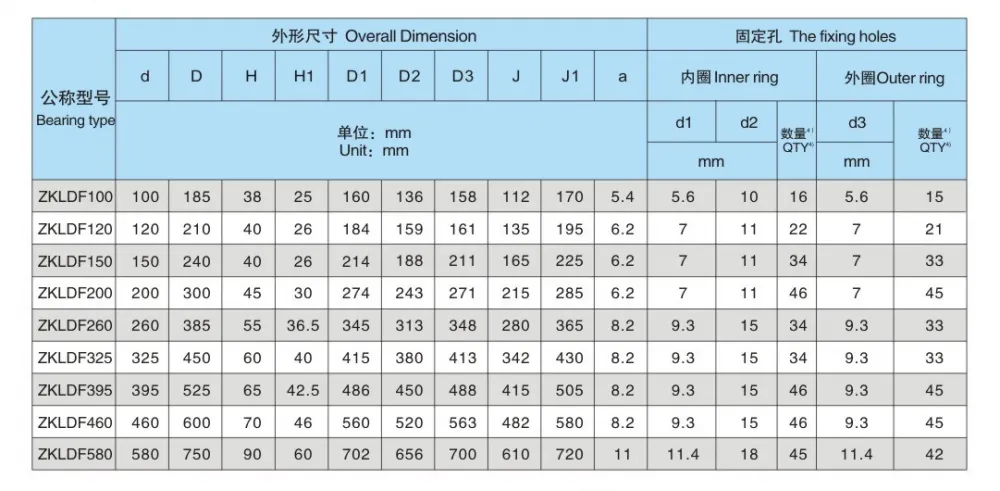

Parameters:
More related bearings：
ZKLDF100,ZKLDF120,ZKLDF150, ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460,ZKLDF580
Other core products :
YRTS High speed rotary table bearings ,
YRTM with angle measuring system bearings,
ZKLDF series rotary table bearings ,
RB/RE/RA/RU/SX/XU/XSU/XR/JXR series Crossed roller bearing / Robotic bearing
Thin section bearing / Robotic bearing
Turntable bearing /Slewing bearing ,
YRT Rotary Table Bearing ,
Angular Contact Ball Bearing ,
Ceramic bearings.
