Help CenterYRTM460 Rotary Table Bearing With Integral Measuring System for 5-axis Machining Centers
Product Spotlights
2.The precision can be compared with the optical encoder, high precision
3.Compact design, no matter for narrow installation space.
4.Strong anti-jamming to solid grain, oil etc. Protection grade IP67
Related Products
-
YRT325 China Yrt Bearing Suppliers China YRC325 Brass Cage Rotary Table Bearing 325X450X60mmUS$ 100 - 15000MOQ: 1 Piece -
YRT50 YRC50 Yrt Rotary Table Bearing 50X126X30mm China Turntable Bearing Machine Tools UseUS$ 100 - 15000MOQ: 1 Piece
-
YRT80 YRC80 Rotary Table Bearing Factory 80x146x35mm Precision Machine Tools BearingUS$ 100 - 15000MOQ: 1 Piece
-
YRT100 YRC100 AXRY100 Rotary Bearing Supplier 100X185X38mm Precision Turntable BearingUS$ 100 - 15000MOQ: 1 Piece
-
YRT120 YRC120 RTC120 AXRY120 Rotary Table Bearing Manufacturers 120x210x40mmUS$ 100 - 15000MOQ: 1 Piece
YRTM460 Axial/radial bearing with integral measuring system comprise:
axial/radial bearing YRTM with a dimensional scale and a electronic measuring system. The electronic measuring system contains two measuring heads, a set of shims and an electronic evaluation system.
Bearings of series YRTM correspond in mechanical terms to axial/radial bearings YRT but are additionally fitted with a magnetic dimensional scale. The measuring system can measure angles to an accuracy of a few angular seconds by non-contact, magneto-resistive means.
Advantages of the angular measuring system:
1.operates by non-contact means and is therefore not subject to wear
2.carries out measurement irrespective of tilting and position
3.has an automatically self-adjusting electronic system
4.has a self-centring function
5.is unaffected by lubricants
6.is easy to fit and the measuring heads are easily adjusted
7.there is no need for alignment of the bearing and a separate measuring system
8.requires no additional parts
– the dimensional scale and measuring heads are integrated in the bearing and adjacent construction respectively
– the resulting space saved can be used for the machining area of the machine
9.does not give any problems relating to supply cables. The cables can be laid within the adjacent construction directly through the large bearing bore
10.savings on design envelope size and costs due to the compact, integrated design requiring fewer components.

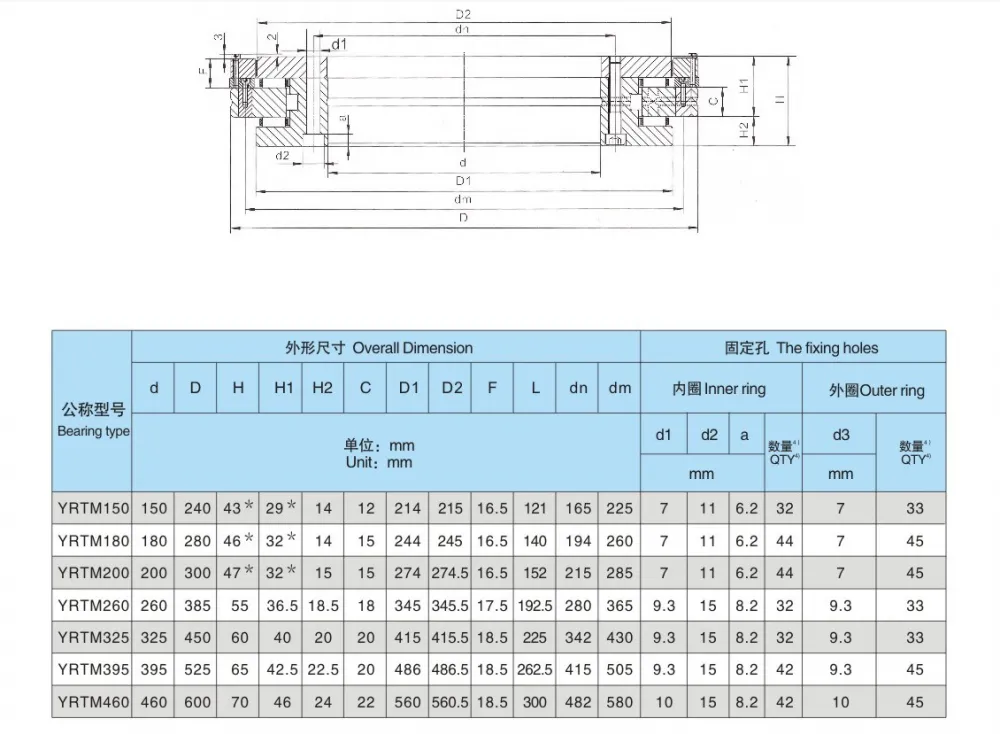

Parameters:
Application:
• 5-axis machining centers & direct-drive rotary tables
• Ultra-precision grinding machines
•High-precision inspection & measuring equipment
•Aerospace & defense test turntables
• High-precision indexing equipment & automation fixtures
•Special precision processing equipment
Other core products :
YRTS High speed rotary table bearings ,
YRTM with angle measuring system bearings,
ZKLDF series rotary table bearings ,
RB/RE/RA/RU/SX/XU/XSU/XR/JXR series Crossed roller bearing / Robotic bearing
Thin section bearing / Robotic bearing
Turntable bearing /Slewing bearing ,
YRT Rotary Table Bearing ,
Angular Contact Ball Bearing ,
Ceramic bearings.
More related bearings:
YRTM150, YRTM180, YRTM200, YRTM260, YRTM325, YRTM395, YRTM460.
We can also offer YRTM rotary table bearings with integral measuring system: YRTM580,YRTM650,YRTM850,YRTM950. If you need that, please contact with us.
