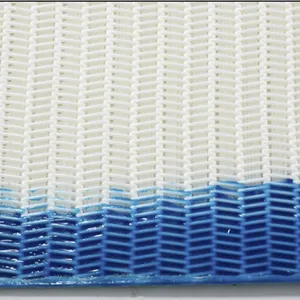

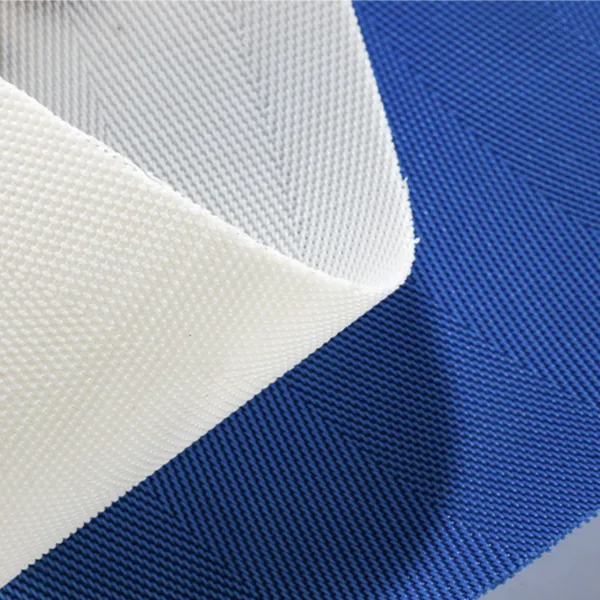

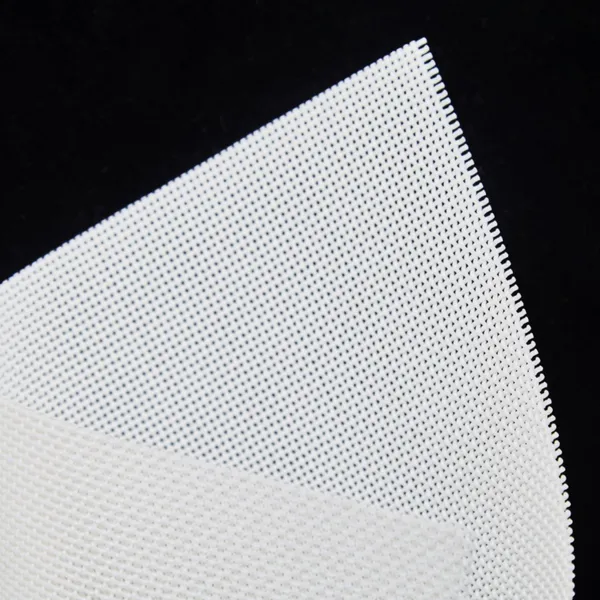

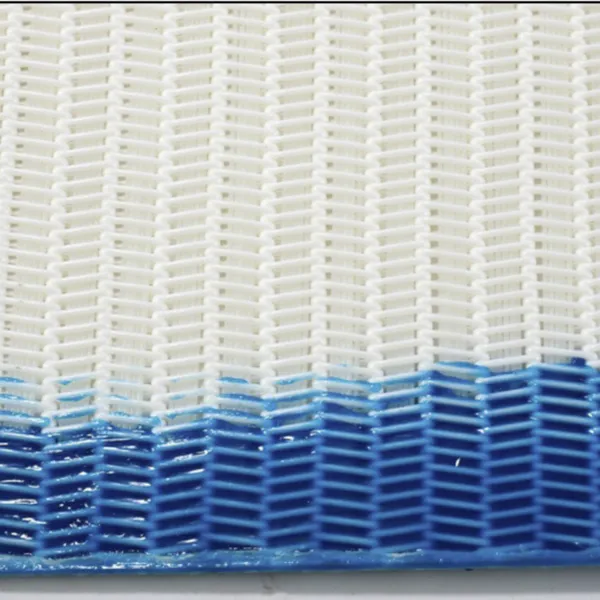

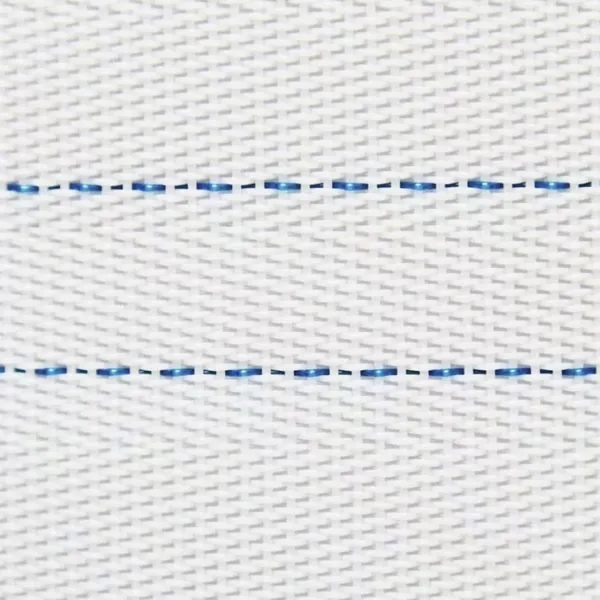

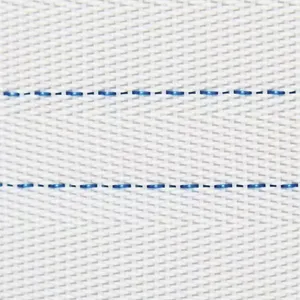

Help CenterPolyester Spiral Mesh for Textile Screen Printing, 50-100 Mesh Count, 150°C Curing Tolerant
Product Spotlights
Related Products
-
Polyester Spiral Mesh 1.5mm Thickness, 200N/cm Tensile Strength, White Color, 20m Roll LengthNegotiableMOQ: 1 Square Meter -
Endless Polyester Spiral Belt, 500mm Width, PTFE Coated, 0.5mm Thickness for Industrial FiltrationNegotiableMOQ: 1 Square Meter
-
Polyester Spiral Mesh, 10x10mm Mesh Opening, 1000N/m Tensile Strength, Standard CompliantNegotiableMOQ: 1 Square Meter
-
Polyester Spiral Mesh, Free Technical Support, 100% Quality Guarantee, Customizable LengthNegotiableMOQ: 1 Square Meter
-
Polyester Spiral Dryer Belt, 30% Open Area, 3mm Thick, 150°C Max Temperature, Food GradeNegotiableMOQ: 1 Square Meter
As a leading manufacturer with over 25 years of experience in wire mesh production, Anping County Boli Hardware Wiremesh Products Factory is proud to offer our Polyester Spiral Mesh for Textile Screen Printing. This mesh is specifically engineered to withstand high-temperature curing processes up to 150°C, making it an ideal choice for textile printing applications that require durability and consistent performance. Our spiral mesh combines precision weaving with robust polyester material to deliver excellent ink flow, sharp edge definition, and long service life, ensuring your production runs smoothly and efficiently.
The 50-100 mesh count range provides versatility for a wide variety of textile printing tasks, from bold designs with heavy ink deposits to fine details requiring high resolution. Whether you are printing on cotton, polyester, blends, or other fabrics, this mesh offers the perfect balance between ink passage and stencil support. Its spiral construction enhances dimensional stability, reducing mesh distortion and minimizing setup time during screen making.
We understand that your printing process demands reliability. That is why our polyester spiral mesh undergoes strict quality control to ensure consistent tension, even mesh openings, and resistance to common chemicals and solvents used in textile inks. The 150°C curing tolerance means you can confidently use high-temperature drying or curing ovens without worrying about mesh degradation, saving you time and material waste.
Key Features & Technical Specifications
- Material: 100% high-tenacity polyester yarn, resistant to stretching and shrinking.
- Weave Type: Spiral (twisted multifilament) for superior dimensional stability and ink release.
- Mesh Count: Available in 50, 60, 70, 80, 90, 100 mesh per inch (customizable).
- Temperature Tolerance: Withstands continuous curing temperatures up to 150°C without loss of tension or mesh integrity.
- Width Options: Standard widths: 1.0m, 1.2m, 1.5m, 1.8m, 2.0m (custom widths upon request).
- Roll Length: 30m, 50m, or cut-to-length according to your needs.
- Color: Natural white (light yellow tint) – optional colored mesh available for special applications.
- Chemical Resistance: Excellent resistance to solvents, plastisols, water-based inks, and UV inks.
| Specification | Value | Benefit |
| Mesh Count Range | 50 – 100 mesh/inch | Suitable for both thick deposits and fine details |
| Open Area | Approximately 30% – 45% (depending on mesh count) | Good ink flow reduces clogging and improves print speed |
| Tension Stability | High – maintains tension after repeated stretching | Longer screen life, less re-tensioning needed |
| Temperature Resistance | Up to 150°C (continuous) | Compatible with high-temperature curing and drying processes |
| Roll Width | 1.0m – 2.0m (customizable) | Flexible dimensions for different screen frame sizes |
Why Choose Our Polyester Spiral Mesh?
- Enhanced Print Quality: The smooth surface and uniform mesh openings ensure consistent ink deposition, reducing pinholes and streaks.
- Cost-Effective Production: High durability means fewer mesh replacements, lower downtime, and better return on investment.
- Easy to Work With: The spiral weave stretches evenly on frames, reducing the risk of tearing and making screen preparation faster.
- Versatile Compatibility: Works with manual, semi-automatic, and fully automatic screen printing machines.
- Customizable Options: We offer different mesh counts, widths, and roll lengths to match your specific job requirements.
Our polyester spiral mesh is manufactured in our ISO-compliant facility (certification available upon request) using advanced weaving technology. Each roll is inspected for defects, and we provide tension test reports on request to ensure your screens perform optimally. With an annual export value of US$5 million to US$10 million and a global customer base spanning North America, Europe, Asia, Africa, and Oceania, we have the capacity and experience to meet your bulk orders with consistent quality.
Since our establishment in 1998, we have been dedicated to serving the wire mesh industry with integrity and innovation. Our location in Hengshui, Hebei – the “Wire Mesh Capital of China” – gives us access to premium raw materials and skilled labor. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring fast and cost-effective logistics worldwide.
Whether you are a screen printer looking for a reliable mesh supplier or a distributor seeking a long-term partner, we invite you to experience the difference of Boli’s polyester spiral mesh. Contact us today for a quote or free sample, and let us help you achieve superior printing results with confidence.
Frequently Asked Questions (FAQ)
1. What is the difference between spiral mesh and plain weave mesh?
Spiral mesh uses twisted multifilament yarns that are woven in a spiral pattern, providing higher dimensional stability and better ink release compared to plain weave. It is especially suitable for textile printing where consistent tension is critical.
2. Can this mesh be used for printing on dark fabrics?
Yes, with the appropriate mesh count (e.g., 50-61 mesh) and proper ink formulation, our polyester spiral mesh works well for dark fabrics. For finer details on light fabrics, higher mesh counts (80-100) are recommended.
3. Is the mesh resistant to solvents and chemicals?
Yes, polyester is naturally resistant to most solvents, plastisols, and water-based inks. However, we recommend avoiding prolonged exposure to strong alkalis and certain aggressive chemicals. Always test with your specific ink system.
4. What is the maximum tension I can apply to this mesh?
The recommended tension range is 15-25 N/cm, depending on the mesh count and frame type. Our mesh can withstand higher tensions if needed, but we advise consulting our technical data sheet for optimal values.
5. Do you offer custom widths or mesh counts?
Absolutely. We can produce mesh in widths from 1m to 2m, and custom mesh counts are available upon request. Minimum order quantities may apply for non-standard sizes.
6. How does the 150°C curing tolerance affect the mesh life?
The high-temperature tolerance means the mesh will not degrade or lose tension when exposed to curing ovens. This extends the usable life of the screen, reducing replacement frequency and overall costs.
7. Can I get a sample before placing a bulk order?
Yes, we provide free samples for evaluation. Please contact our sales team with your mesh count and size requirements, and we will arrange shipping.
8. What is the typical lead time for orders?
For standard widths and mesh counts, lead time is 7-15 days after confirmation. Custom orders may take 15-25 days. We can expedite for urgent orders based on stock availability.
