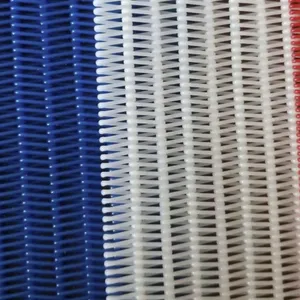

Help CenterNylon Filter Cloth, Tensile Strength >500N/5cm, 150°C Temperature Resistance for Industrial Wastewater Filtration
Product Spotlights
Related Products
-
Polypropylene Filter Cloth, High Tensile Strength, Dimensional Stability, 1.5m Width for Wastewater TreatmentNegotiableMOQ: 1 Square Meter -
Multifilament Filter Cloth, 650 Gsm Weight, 20 Micron Filtration Precision for Plate and Frame Filter PressNegotiableMOQ: 1 Square Meter
-
Filter Cloth With Mill Test Report, Standard Compliant for Industrial Wastewater Treatment, Long Service LifeNegotiableMOQ: 1 Square Meter
-
1 Year Warranty Filter Cloth for Wastewater Treatment, Free Sample Available, Technical Support ProvidedNegotiableMOQ: 1 Square Meter
-
Double-layer Woven Filter Cloth, 0.6 MPa Pressure Resistance, Chemical Corrosion Resistant for Wastewater Treatment PlantNegotiableMOQ: 1 Square Meter
Anping County Boli Hardware Wiremesh Products Factory, established in 1998, is a professional manufacturer specializing in wire mesh and filtration products. With annual export sales exceeding US$5 million, we serve clients across North America, South America, Europe, Asia, Africa, and Oceania. Our high-performance nylon filter cloth is engineered for demanding industrial wastewater filtration applications, delivering exceptional tensile strength of >500N/5cm and reliable temperature resistance up to 150°C. This product combines durability with efficiency, ensuring long service life even in harsh filtration environments.
Whether you are treating chemical effluents, mining slurry, or municipal wastewater, our nylon filter cloth provides consistent particle retention and high flow rates. The material is carefully woven from premium nylon filaments to achieve a balance of mechanical strength and thermal stability, making it ideal for pressure filters, belt filters, and vacuum drum filters.
Key Features and Technical Specifications
- High Tensile Strength: >500N/5cm – ensures resistance to tearing and deformation under high-pressure filtration.
- Temperature Resistance: Continuous operation up to 150°C, suitable for hot filtrate streams.
- Excellent Chemical Resistance: Nylon withstands dilute acids, alkalis, and organic solvents commonly found in industrial wastewater.
- Precision Filtration: Available in various mesh sizes from 1 micron to 500 microns for fine particle removal.
- Low Hydrophilicity: Minimal water absorption reduces cake moisture and improves dewatering efficiency.
- Customizable Dimensions: Width and length can be tailored to fit your filtration equipment.
| Property | Value |
| Material | 100% Virgin Nylon 6 or Nylon 66 |
| Tensile Strength (Warp) | ≥500 N/5cm |
| Tensile Strength (Weft) | ≥450 N/5cm |
| Max Operating Temperature | 150°C (continuous) |
| Weight (per square meter) | 200 – 600 g/m² (customizable) |
| Thickness | 0.3 – 2.0 mm |
| Filtration Precision | 1 – 500 μm |
| Air Permeability | 50 – 300 L/m²·s (at 200 Pa) |
Benefits to Your Filtration Process
- Extended Service Life: The high tensile strength and thermal stability reduce frequent replacement, lowering maintenance costs.
- Improved Efficiency: Optimal pore structure ensures high solids capture while maintaining excellent flow rates.
- Reduced Energy Consumption: Lower pressure drop across the filter cloth means less energy required for pumps.
- Versatile Application: Suitable for chemical, pharmaceutical, mining, food processing, and municipal wastewater treatment plants.
Trust and Reliability from a Seasoned Manufacturer
Anping County Boli Hardware Wiremesh Products Factory has been a trusted supplier in the filtration industry since 1998. Our factory is located in Hengshui, Hebei, China – the well-known wire mesh capital. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery to global customers. With an annual export value of US$5–10 million and a presence in over 15 countries, we have proven our ability to meet international quality standards.
Every roll of nylon filter cloth undergoes rigorous testing for tensile strength, temperature resistance, and dimensional accuracy. We offer customization in width, length, weave pattern, and edge finishing to match your specific equipment. Our experienced technical team is available to provide recommendations on the best filter cloth configuration for your wastewater application.
Contact us today for a competitive quote or to request free samples. Experience the durability and performance of our nylon filter cloth in your industrial wastewater filtration process. We are committed to supporting your operations with reliable filtration solutions.
Frequently Asked Questions (FAQ)
-
Q: Can this nylon filter cloth be used continuously at 150°C?
A: Yes, the material is designed for continuous operation up to 150°C. For short-term peaks, it can withstand up to 160°C, but prolonged exposure beyond 150°C is not recommended. -
Q: Is the cloth resistant to strong acids and alkalis?
A: Nylon has good resistance to dilute acids and alkalis, but strong oxidizing agents and concentrated mineral acids may degrade the material. We recommend providing your specific chemical composition for a compatibility assessment. -
Q: What is the typical lead time for custom orders?
A: For standard dimensions, we can ship within 7–10 days after order confirmation. Custom sizes and special weaves may require 15–20 working days. -
Q: Can I get a sample before bulk purchase?
A: Yes, we offer free samples (up to 0.5m²) for evaluation. You only need to cover the shipping cost. -
Q: How do I choose the correct filtration precision for my application?
A: It depends on the particle size distribution in your wastewater. We can help you select the optimal mesh size based on your requirements. Common choices range from 10 μm to 200 μm for industrial wastewater. -
Q: What edge finishing options are available?
A: We offer heat-cut edges, folded edges, and sewn loops for easy installation on belt filters or drum filters. Please specify your equipment type. -
Q: Does this cloth have any certifications?
A: Our manufacturing process follows strict quality control procedures. Specific certifications are not listed, but we can provide test reports and material certificates upon request.
