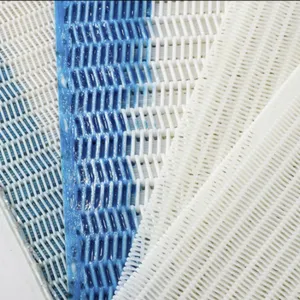

Help CenterPolyester Spiral Belt With 0.5mm-5mm Mesh Opening, 100°C-200°C Temperature Resistance, 1000mm Width
Product Spotlights
Related Products
-
Polyester Spiral Belt With 2-year Warranty, Free Sample 1m Length, Technical Support IncludedNegotiableMOQ: 1 Square Meter -
Polyester Spiral Belt With 0.3mm-1.0mm Mesh, 180°C Max Temp, 500mm-1500mm Adjustable WidthNegotiableMOQ: 1 Square Meter
-
Polyester Spiral Mesh With Mill Test Report, 0.5mm-5mm Aperture, Standard Compliant, 1-year WarrantyNegotiableMOQ: 1 Square Meter
-
Polyester Spiral Mesh for Textile Screen Printing, 50-100 Mesh Count, 150°C Curing TolerantNegotiableMOQ: 1 Square Meter
-
Polyester Spiral Mesh 1.5mm Thickness, 200N/cm Tensile Strength, White Color, 20m Roll LengthNegotiableMOQ: 1 Square Meter
Welcome to Anping County Boli Hardware Wiremesh Products Factory, a trusted manufacturer since 1998 with over two decades of expertise in producing high-quality wire mesh products. Our Polyester spiral belt is engineered to meet the rigorous demands of industrial drying, conveying, and processing applications. With a versatile mesh opening range of 0.5mm to 5mm, temperature resistance from 100°C to 200°C, and a standard width of 1000mm, this belt offers exceptional performance and durability. Whether you need gentle handling of delicate products or robust conveyance in high-temperature environments, this spiral belt is your reliable solution.
Crafted from premium polyester monofilament, the belt exhibits excellent dimensional stability, low elongation, and resistance to chemicals and moisture. Its spiral construction ensures uniform air permeability, optimal drainage, and smooth product release. The belt is designed to minimize maintenance and maximize uptime, making it an ideal choice for industries such as food processing, textile drying, nonwoven fabric production, pulp and paper, and more.
Below we detail the key features, technical specifications, and benefits to help you understand why this polyester spiral belt stands out in the market.
Key Features & Advantages
- Wide Mesh Opening Range: From 0.5mm to 5mm, allowing customization for different product sizes and airflow requirements. Smaller openings for fine powders, larger openings for bulky items.
- High Temperature Resistance: Operates continuously in 100°C to 200°C environments without degradation. Suitable for hot air drying, curing ovens, and thermal processing.

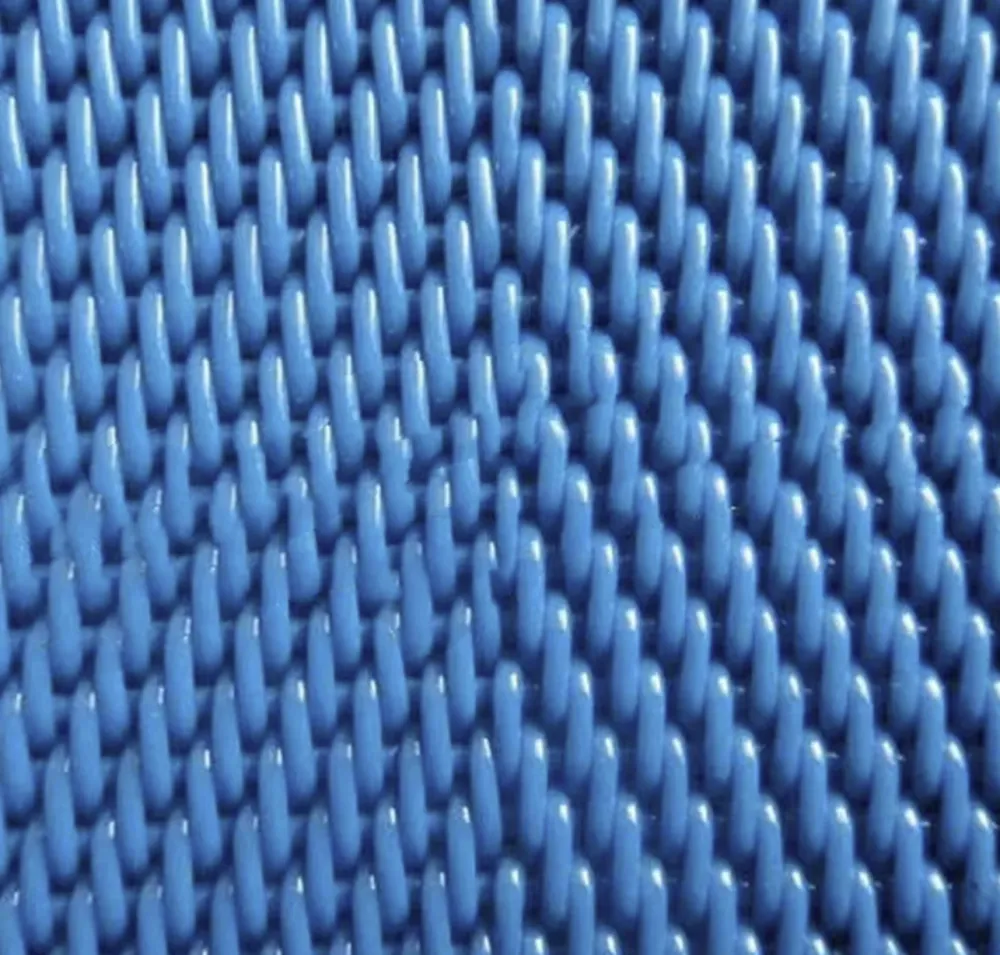

- Spiral Weave Design: Provides excellent flexibility, low friction, and self-cleaning properties. Reduces product sticking and facilitates easy cleaning.
- Uniform Air Permeability: The spiral structure ensures consistent airflow across the entire belt surface, enhancing drying efficiency and product quality.
- Low Elongation & High Strength: Polyester material offers minimal stretch under load, ensuring stable tracking and long service life.
- Chemical & Moisture Resistance: Resists oils, acids, alkalis, and humidity, making it suitable for harsh industrial environments.
- Customizable Dimensions: Width up to 1000mm (standard), length can be made to order. Colors and edge reinforcements available.
- Easy Installation & Maintenance: Lightweight yet strong, the belt can be spliced on-site with simple tools. Minimal downtime for replacements.
Technical Specifications
| Parameter | Value |
|---|---|
| Material | 100% Polyester Monofilament |
| Mesh Opening (mm) | 0.5 – 5.0 (customizable) |
| Temperature Range (°C) | 100 – 200 |
| Standard Width (mm) | 1000 |
| Thickness (mm) | Available upon request |
| Weight (g/m²) | Depends on mesh and thickness |
| Air Permeability | Uniform, customizable |
| Color Options | White, blue, green, yellow (custom) |
| Edge Type | Selvaged or welded edge |
Benefits for Your Business
- Enhanced Productivity: The belt's high air permeability and low resistance reduce drying time, increasing throughput.
- Superior Product Quality: Uniform air distribution prevents uneven drying, cracking, or discoloration of sensitive products.
- Reduced Operating Costs: Low energy consumption due to optimized airflow, plus reduced maintenance and replacement frequency.
- Versatility: Suitable for a wide range of products — from fruits, vegetables, and seafood to textiles, nonwovens, and paper.
- Compliance with Food Safety Standards: Polyester is FDA-compliant for direct food contact (optional) and easy to clean.
At Anping County Boli Hardware Wiremesh Products Factory, we have been manufacturing wire mesh products since 1998. Our annual export value exceeds US$5 million, and we ship to major ports including Tianjin, Qingdao, Shanghai, and Foshan. Our products are trusted by customers in North America, South America, Europe, Asia, Africa, and Oceania. With a strong R&D team and strict quality control, every belt undergoes rigorous testing before delivery. We offer customization services to meet your exact requirements — just provide your dimensions and specifications.
We are confident that our polyester spiral belt will bring efficiency and reliability to your production line. Contact us today for a quote or technical consultation. Let us help you optimize your drying and conveying processes.
Frequently Asked Questions (FAQ)
Q1: What is the maximum belt width available?
A: Our standard width is 1000mm, but we can produce belts up to 2000mm width upon request. Please contact our sales team for custom sizes.
Q2: Can this belt be used for food drying?
A: Yes, the polyester material is food-grade and can be used for drying fruits, vegetables, meat, seafood, and snacks. It is easy to clean and resistant to food acids.
Q3: How do I determine the correct mesh opening for my application?
A: The mesh opening depends on the product size and airflow requirements. For fine powders, use 0.5mm–1mm; for larger items like nuts or biscuits, 3mm–5mm is suitable. We recommend sending us your product details for a tailored suggestion.
Q4: Is the belt resistant to oils and chemicals?
A: Polyester offers good resistance to most oils, weak acids, and alkalis. However, strong oxidizing agents or concentrated acids may degrade the material. For specific chemical exposure, please consult our technical team.
Q5: What is the typical lifespan of this belt?
A: With proper use and maintenance, our polyester spiral belts typically last 1–3 years depending on operating conditions (temperature, load, cleaning frequency). Regular inspection and cleaning can extend its life.
Q6: Can you provide samples before bulk order?
A: Yes, we offer free samples for evaluation. You only need to pay the shipping cost. Contact us to arrange a sample of the desired mesh size and width.
Q7: How is the belt spliced or joined?

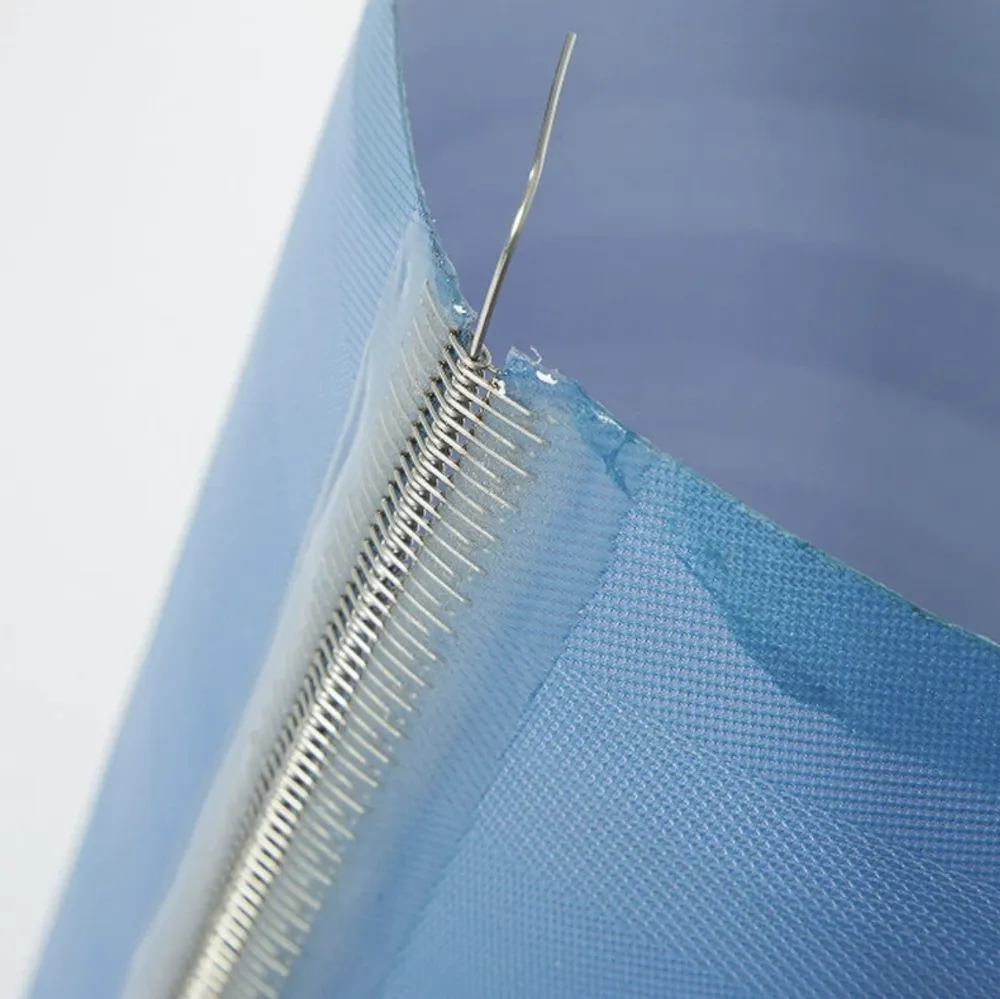

A: The belt can be joined using a pin joint or spiral seam, depending on the design. We provide detailed installation instructions, and our technical support is available for remote assistance.
Q8: What is the minimum order quantity (MOQ)?
A: MOQ is typically 10 square meters for standard sizes. Custom orders may have different MOQ. Please inquire with our sales team for detailed information.
