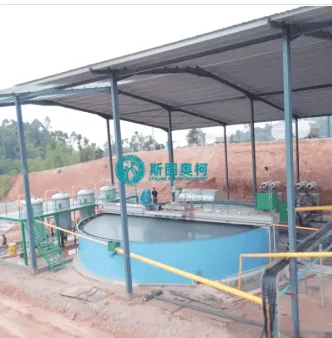

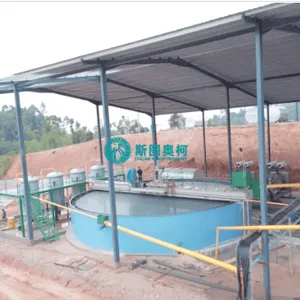

Help CenterModular Gold Cip Processing Plant
Product Spotlights
2. Complete Gold CIP processing line for ore leaching.
3. Custom capacity: 5–1000 tons per day.
4. Low reagent and power consumption.
5. Anti-corrosion equipment for long service life.
6. Activated carbon recyclable to cut operating cost.
7. Easy operation, save labor cost.
8. Stable 24-hour continuous production.
9. Mature technology suitable for South American gold mines.
10. Turnkey service including design and installation guidance
Related Products
1. Product Description
This professional Gold CIP Mineral Processing Equipment is a complete set of functional facilities dedicated to carbon-in-pulp gold mineral processing, solving the problems of low processing efficiency, discontinuous process flow, mismatched equipment coordination and unstable gold recovery existing in conventional gold mineral processing equipment. Gold mining enterprises and mineral processing projects demand high-performance mineral processing equipment with complete process coverage, stable operational coordination and efficient gold extraction, with strict requirements on equipment matching, process continuity and processing stability. Conventional gold mineral processing equipment suffers from incomplete process links, unbalanced equipment configuration, unstable leaching and adsorption effects and insufficient mineral processing capacity, which seriously reduce overall gold recovery rate, increase production costs and affect long-term operational benefits. This Gold CIP Mineral Processing Equipment takes high processing efficiency, complete process integration, stable equipment coordination and reliable gold recovery as core advantages, providing standardized and customized mineral processing solutions for various gold ore resources. The complete equipment set comprises scientifically matched crushing & screening unit, high-efficiency ball mill and classification closed-circuit grinding system, professional cyanide leaching tank bank, optimized carbon-in-pulp adsorption tanks, gold-loaded carbon desorption-electrolysis unit and smelting module, forming a fully integrated, closed-loop and high-efficiency gold mineral processing system. It can be deployed in various gold processing plants, undertaking the full-process mineral processing from raw ore to finished gold ingots, and can be customized according to different processing capacity and ore properties. Adopting proven CIP technology and advanced manufacturing standards, this equipment eliminates the defects of conventional mineral processing facilities, maintains stable and efficient gold processing environment, and provides a guaranteed, high-efficiency and professional mineral processing solution for gold mining enterprises with high requirements on gold extraction performance.This professional Modular Gold CIP Processing Plant is a prefabricated, integrated gold extraction facility based on modular design, solving the problems of long construction cycle, inflexible layout, difficult disassembly and relocation, and high on-site construction costs existing in conventional fixed gold processing plants. Gold mining enterprises and mineral processing project investors demand a flexible, cost-effective and quickly deployable gold processing plant, with strict requirements on modular integration, convenient installation, flexible layout and recyclable utilization. Conventional fixed gold processing plants suffer from fixed structure, long construction period, high on-site construction workload and difficulty in relocation, which are not suitable for temporary mining projects, scattered ore resources and projects with short construction cycles. This Modular Gold CIP Processing Plant takes modular prefabrication, quick installation, flexible layout and recyclable utilization as core advantages, providing standardized and customized processing solutions for various gold ore resources. The complete plant comprises a series of independent, scientifically matched modular units including crushing & screening module, ball mill and classification closed-circuit grinding module, cyanide leaching module, carbon-in-pulp adsorption module, gold-loaded carbon desorption-electrolysis module and smelting module, forming a fully integrated, flexible and high-efficiency gold processing system. All modules are pre-manufactured and pre-assembled in the factory, and can be quickly installed and debugged on-site, completing the whole procedure from raw ore feeding to gold ingot production. It can be flexibly deployed at various mining sites, and can be disassembled and relocated when the mining site is changed, adapting to temporary and scattered gold mining projects. Adopting proven CIP technology and advanced modular design concept, this plant eliminates the defects of fixed processing plants, maintains stable and efficient gold extraction environment, and provides a guaranteed, flexible and cost-effective gold extraction solution for gold mining enterprises with high requirements on project flexibility and construction speed.
2. Working Principle
The Modular Gold CIP Mineral Processing EquipmePlant applies scientific carbon-in-pulp gold extraction principle and modular integrated mineral processing design, realizing continuous, efficient and stable gold recovery for various gold ore resources through coordinated equipment operation. All equipment modulewith flexible deployment and quick construction. All modular units are scientifically calibrated and matched toin performance and size, ensureing smooth material circulation, coordinated operation of all unitmodules and stable operational environment, avoiding efficiency attenuation caused by equipmentmodule mismatch and process discontinuityassembly inconvenience. Raw gold ore is first sent to the matchprefabricated crushing & screening unitmodule, where it is crushed into qualified coarse particles, then fed into the high-efficiencymatched ball mill and classification closed-circuit grinding systemmodule to be refined into fine slurry with uniform particle size, fully meeting the requirements of subsequent cyanide leaching. The prepared fine ore slurry flows into the professional leaching tank groupmodule; with precise pH value control and continuous stirring, cyanide lixiviant fully reacts with ore particles to dissolve metallic gold into the slurry and form a stable soluble gold cyanide complex. After adequate leaching, the slurry enters the optimized CIP adsorption tank seriesmodule, where activated carbon fully contacts with ore slurry and selectively adsorbs gold-cyanide complexes onto carbon surfaces to generate gold-loaded carbon. The optimizedmodular carbon circulation system ensures stable transfer of gold-loaded carbon and avoids carbon accumulation and blockage, with convenient maintenance for each module. Barren slurry after adsorption undergoes professional harmless treatment in the designated module before being discharged as tailings, minimizing gold loss. Gold-loaded carbon is conveyed to the professionally designed desorption and electrolysis unitmodule, where gold is stripped from activated carbon into desorption solution under controlled temperature and pressure, and high-purity gold mud is precipitated via electrolytic deposition. Subsequent smelting process turns gold mud into finished gold ingots. Every processing section in the dedicated smelting module. Every modular unit maintains synchronized material transport and stable process parameters, with scientific equipment matchingmodular design ensuring long-term stable and efficient mineral processingoperation. By adjusting process parameters, reagent dosage and carbon circulation frequency, the whole equipment seplant sustains stable gold recovery efficiency, minimizing gold loss in tailings and reducing comprehensive prodconstruction and operational costs. Finally, this professional mineralmodular processing equipmeplant provides reliable, full-processlexible and quick-deployed support for gold extraction projects, realizing efficient and stable gold recovery with high-performance CIP mineral processing facilitiesadvanced modular design.
3. Core Features
High Processing Efficiency & Reliable Gold Recovery: This mineral processing equipment adopts optimized CIP process design and scientifically matched units, realizing efficient gold extraction and stable recovery. It completely solves the problems of low processing efficiency and unstable gold recovery in conventional gold mineral processing equipment.Modular Prefabrication & Quick Installation: This modular gold CIP plant adopts factory prefabricated modular design, with all units pre-assembled. It completely solves the problems of long construction cycle and high on-site workload of fixed processing plants, realizing quick on-site installation and commissioning.
Complete Process Integration & Coordinated Operation: The equipment covers full-process mineral processing links from crushing to smelting, with perfectly matched modules. It ensures smooth process flow and coordinated operation of all equipment, avoiding process interruptions and production bottlenecks.Flexible Layout & Recyclable Utilization: The plant can be flexibly combined and laid out according to site conditions, and can be easily disassembled and relocated when the mining site changes. It adapts to temporary and scattered gold mining projects, improving equipment utilization rate.
Wide Adaptability & Customizable Configuration: This mineral processing equipment can be customized according to different processing capacity and ore properties. It can be perfectly matched with various gold processing plants, meeting the diverse needs of different-scale gold mining projects.
Stable Operational Performance & Low Maintenance: Scientific equipment matching and high-quality manufacturing ensure long-term stable operation of the whole set. It reduces operational failures and maintenance workload, providing reliable mineral processing support for gold mining enterprises.
Cost-Effective & High Economic Benefits: Optimized process design and equipment matching reduce reagent consumption, energy waste and maintenance costs. High gold recovery efficiency brings stable and sustainable economic benefits to gold mining enterprises.
