I. Basic Product Parameters

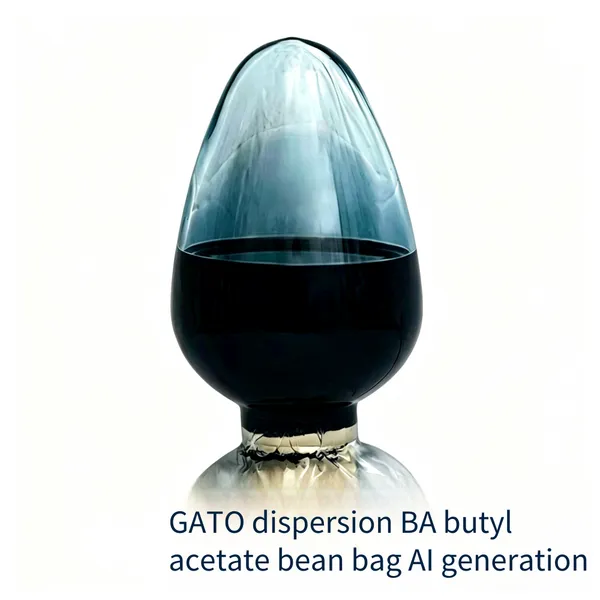

Full Product Name: GATO Nano Cesium Tungsten Dispersion (Solvent: BA Butyl Acetate)
Effective Solid Content: 25%
Core Nano Powder: Cesium Tungsten Bronze (GATO)
Dispersion Medium: High-purity BA Butyl Acetate, a medium-slow volatile environmental-friendly ester solvent with excellent dissolving power and good leveling property. It has wide compatibility with various oil-based coatings, optical films, and ink resins.
Appearance: A uniform dark blue-black transparent dispersion without precipitation, delamination, or particle agglomeration. It has high dispersion transparency and excellent storage stability.
Particle Size Specification: The primary particle size of the powder is controlled within 10–30nm. After multi-stage sand grinding and special surface modification treatment with ester solvents, the powder is uniformly dispersed and is not easy to agglomerate or coarsen after long-term storage.
II. Core Product Features
1. Spectral Regulation, Excellent in Both Heat Insulation and Light Transmission
The core active ingredient of this product is nano cesium tungsten bronze powder, which has a unique wide-spectrum selective absorption function. The infrared blocking rate in the near-infrared band (780–2500nm) can reach over 90%, effectively blocking the heat source of solar thermal radiation; it has high visible light transmittance, and the formed film is clear and transparent without defects such as graying, blackening, or high haze; it can block over 99% of ultraviolet rays in the entire ultraviolet band.
The product simultaneously achieves three major performances of high light transmission, high heat insulation, and high anti-ultraviolet and infrared. The comprehensive heat insulation and weather resistance effects are far superior to those of traditional heat insulation fillers such as carbon black, iron oxide, ATO, and ITO. It is the preferred functional raw material for medium-slow drying optical heat insulation coatings, functional printing inks, and PET transparent heat insulation films.
Significant Advantages of the Butyl Acetate Solvent System
BA Butyl Acetate is a commonly used medium-slow drying environmental-friendly ester solvent in the industry, which balances the evaporation rate and film-forming effect and is suitable for precision coating, printing, and spraying processes:
- The evaporation rate is gentle and moderate, with excellent film leveling property. The paint film has no pinholes, shrinkage cavities, bubbles, or orange peel, and even thin coatings can ensure uniform transparency.
- It has strong dissolving and wetting power, significantly improving the adhesion to substrates such as glass, PET, PC, and acrylic, and is suitable for the construction of ultra-thin optical coatings.
- It has an extremely wide compatibility range and can be miscible with most oil-based systems such as acrylic, polyurethane, nitro resin, silicone, and alkyd resin in any proportion without flocculation, precipitation, or film whitening.
- It has a mild odor, no residue after evaporation, and its VOC index meets the industrial environmental protection control standards, making it suitable for the mass production of precision optical parts and high-end decorative parts.
3. Ultra-high Dispersion Stability, Convenient for Storage and Use
A special lipophilic modified coating layer is customized for the butyl acetate ester system, perfectly solving the industry problem that nano cesium tungsten powder is prone to agglomeration, sedimentation, and turbidity in ester solvents.
The product can be stably stored for more than 6 months under normal temperature and sealed conditions. Only very slight soft sedimentation occurs after long-term standing, and it can instantly return to a uniform and transparent state with low-speed stirring. There is no need for secondary sand grinding or ultrasonic dispersion. During construction, it can be directly diluted with butyl acetate as needed without complex pretreatment, greatly reducing factory losses, rework rates, and manual debugging costs.
4. Weather Resistance and Durability, Stable Film-forming Performance without Decay
The cesium tungsten bronze powder after special surface modification has strong chemical inertness. After film formation, it is resistant to weak acids and alkalis, damp heat, salt spray, and ultraviolet aging. In long-term outdoor exposure and high-temperature and high-humidity environments, problems such as heat insulation decay, yellowing, loss of transparency, powdering, and migration and precipitation will not occur.
The product is free of heavy metals such as lead, mercury, and cadmium, is environmentally friendly and non-toxic, and fully meets the domestic testing standards for coatings, optical films, automotive interior coatings, and building energy-saving materials. It is suitable for high-end civil, industrial, and outdoor long-term weather-resistant scenarios.
5. Low Addition Amount, Extremely High Comprehensive Cost-performance Ratio
This product has high heat insulation efficiency. An excellent infrared and ultraviolet blocking effect can be achieved with a very low addition amount without affecting the original light transmittance, adhesion, hardness, and mechanical properties of the substrate.
Under the same heat insulation index, the addition amount is far lower than that of traditional ATO and ITO heat insulation slurries; butyl acetate has strong universality and can be directly incorporated into existing oil-based coating and ink formulations without significant adjustment of the original system. The raw material procurement cost is moderate, and the comprehensive production, debugging, and quality control costs are greatly reduced.
III. Detailed Application Scenarios and Compatible Industries
1. Medium-slow Drying Heat Insulation Coatings for Building Energy Conservation
High-end glass transparent heat insulation spray paints, ultra-thin heat insulation coatings for French windows, protective paints for curtain wall glass, and heat insulation modified coatings for indoor daylighting PC boards.
The slow-drying property of butyl acetate ensures uniform leveling in large-area spraying. The paint film is transparent without blocking daylighting, effectively blocking infrared thermal radiation in summer, reducing air-conditioning energy consumption, and blocking ultraviolet rays to prevent aging and fading of furniture and soft furnishings.
2. Protective Coatings for Automotive Interiors and Exteriors
Heat insulation protective paints for acrylic parts in new energy vehicle interiors, anti-ultraviolet transparent coatings for automobile headlights, heat insulation and color-changing coatings for retrofitted vehicle glass, and thin heat insulation topcoats for RV viewing windows.
The medium-slow evaporation is suitable for the precision spraying process of automobiles. The paint film is delicate and transparent with strong adhesion, providing long-term blocking of the temperature rise in the vehicle due to sun exposure, delaying the aging and yellowing of leather and plastic interiors, and having high light transmittance without affecting driving vision.
3. Optical Films and Precision Thin Coatings
Coating liquids for PET optical heat insulation films, anti-infrared protective coatings for displays, protective coatings for optical lenses, and anti-UV modified thin coating liquids for PC boards.
The powder is ultra-fine without haze. Combined with the excellent leveling property of butyl acetate, it is suitable for the precision thin-layer coating of high-end optical films, will not corrode optical substrates, and has multiple protective functions of high-definition light transmission, heat insulation, and anti-ultraviolet.
4. Protection Fields of Outdoor Equipment and Display Cabinets
Transparent protective coatings for outdoor precision instruments, heat insulation protective paints for cabinet observation windows, low-temperature protective coatings for photovoltaic auxiliary materials, and heat insulation coatings for display glass in supermarket freezers.
The formed film has stable weather resistance, and the heat insulation effect does not decay after long-term outdoor use. The gentle evaporation avoids cracking and shrinkage cavities in thin coatings, effectively protecting precision equipment from damage by high temperature and ultraviolet rays.
5. Functional Heat Insulation Inks for Screen Printing
Transparent heat insulation inks for screen printing on glass and plastic substrates, protective printing coatings for decorative boards, and heat insulation printing topcoats for high-end gift glass. It is suitable for printing processing scenarios that require medium-slow drying, high leveling, and high-definition and high-transparency heat insulation effects.
IV. Instructions for Processing and Use
1. Dilution and Preparation: It is recommended to use BA Butyl Acetate for dilution first, and it can also be compounded with PMA, isopropanol, and high-boiling aromatic solvents; it is recommended to stir at a speed of 800–1200r/min for 10–15 minutes until it is completely uniform and transparent; direct mixing with a large amount of water is prohibited to avoid powder flocculation and whitening.
2. System Blending: When compounding with oil-based resins such as acrylic, nitro, and polyurethane, it is recommended to pre-dilute the dispersion with butyl acetate first, and then slowly add it to the main paint system and keep stirring to ensure that the system is stable without particles or agglomeration.
3. Construction Process: It is suitable for coating processes such as spraying, screen printing, roll coating, dip coating, and curtain coating; the solvent evaporates gently, and it can be dried naturally at room temperature or baked at a medium-low temperature of 80–120℃. The paint film has full leveling and no defects in thin coatings.
4. Storage Conditions: Store it in a sealed, cool, dry, well-ventilated, and explosion-proof warehouse at a storage temperature of 5–35℃, away from open flames and heat sources; avoid direct sunlight and low-temperature freezing.
V. After-sales Service and Supply Guarantee
1. Stable Supply of In-stock Products
Our company has a dedicated automatic dispersion production line for ester solvents. We always have a large quantity of in-stock GATO dispersions in the butyl acetate (BA) system, and we can ship regular orders within 48 hours. Long-term cooperation customers can sign a price-locking and stockpiling agreement to ensure a stable delivery time without being affected by fluctuations in the raw material market.
2. One-on-one Exclusive Technical Support
We are equipped with a professional team of nano material engineers to provide free full-process technical services: formula adaptation and debugging for medium-slow drying coatings/printing inks, optimization of thin coating shrinkage cavities and particle defects, regulation of haze and light transmittance, and compatibility matching with various oil-based resins. If there are problems such as delamination, poor leveling, or substandard heat insulation effects in the customer's test samples, we can provide remote guidance and customized optimization solutions.
3. Strict Quality Warranty
Each batch of products comes with a spectral detection report, a solid content report, and a dispersion stability detection report for the butyl acetate system when leaving the factory, and they are all inspected and qualified before leaving the warehouse.
4. Customized R & D Services
We can customize according to the customer's process requirements: the solid content can be adjusted from 10% to 30%, the particle size can be finely regulated, a medium-drying formula with low haze and high transparency can be developed, and a highly weather-resistant modified formula can be provided. We can customize exclusive GATO dispersions in the butyl acetate (BA) system for different scenarios such as optical film coating, screen printing, and automotive protective paints.
VI. Overview of the Company's Comprehensive Strength
Our company, Yantai Jialong Nano Industry Co., Ltd., is a high-tech enterprise in China specializing in the R & D, synthesis, precision dispersion, and sales of nano functional heat insulation materials. Our main products include the full range of water-based/oil-based multi-solvent dispersions, heat insulation powders, and optical functional slurries of GATO cesium tungsten bronze, ITO, and ATO.
1. R & D Hardware: We have an independent nano synthesis laboratory, a spectral optical detection room, and a pilot production line for ester solvent coating. We are equipped with a laser particle size analyzer, an ultraviolet-visible-near-infrared spectrophotometer, explosion-proof and airtight high-precision sand grinding equipment, and constant-temperature reaction equipment, and we can independently complete the lipophilic modification of powders, the development of butyl acetate system formulas, and the full set of performance tests of finished products.
2. Technical Team: The core R & D team has more than ten years of experience in the nano heat insulation material industry. For different solvent systems such as butyl acetate, ethyl acetate, ethanol, PMA, isopropanol, DOTP, and pure water, we have developed exclusive coating and dispersion processes, completely solving the industry pain points such as powder agglomeration, unstable storage, and poor resin compatibility. We have many utility model patents related to nano heat insulation materials.
3. Production Advantages: We have a standardized explosion-proof and clean production workshop and an independent, airtight, and automatic dispersion production line for ester solvent products. The production is carried out at a constant temperature and in a dust-free environment throughout the process, with extremely low impurity content and extremely high batch stability; we can meet the needs of 500ml small sample tests and ton-level large-scale factory assembly line orders.
4. Service Positioning: Centering on the "nano heat insulation materials + supporting solvent system process solutions", we deeply serve customers in the coating, optical film, screen printing, automotive interior, photovoltaic, and new material industries, continuously providing medium-slow drying nano heat insulation materials with high stability and high cost-performance ratio to help downstream customers improve the appearance quality of finished products and the market competitiveness of terminal products.
